Fast Connector Exit Optic Splice Closure with Splitter & Adapter Holder
H33 optic cable splice closure with fast connector exit It is used to splice cable with max. 12.5mm dia.and allow 16 pcs drop cable with fast connector exit. Adopt engineering plastic in scientific formula with excellent mechanical strength, can prevent aging effectively caused by cold, hot, oxygen,......
Send Inquiry
Product Description

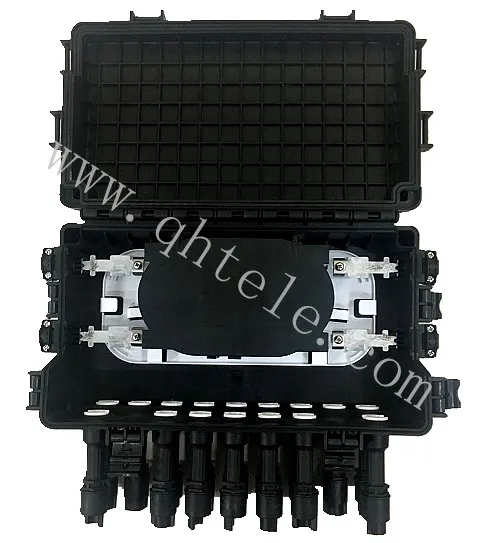

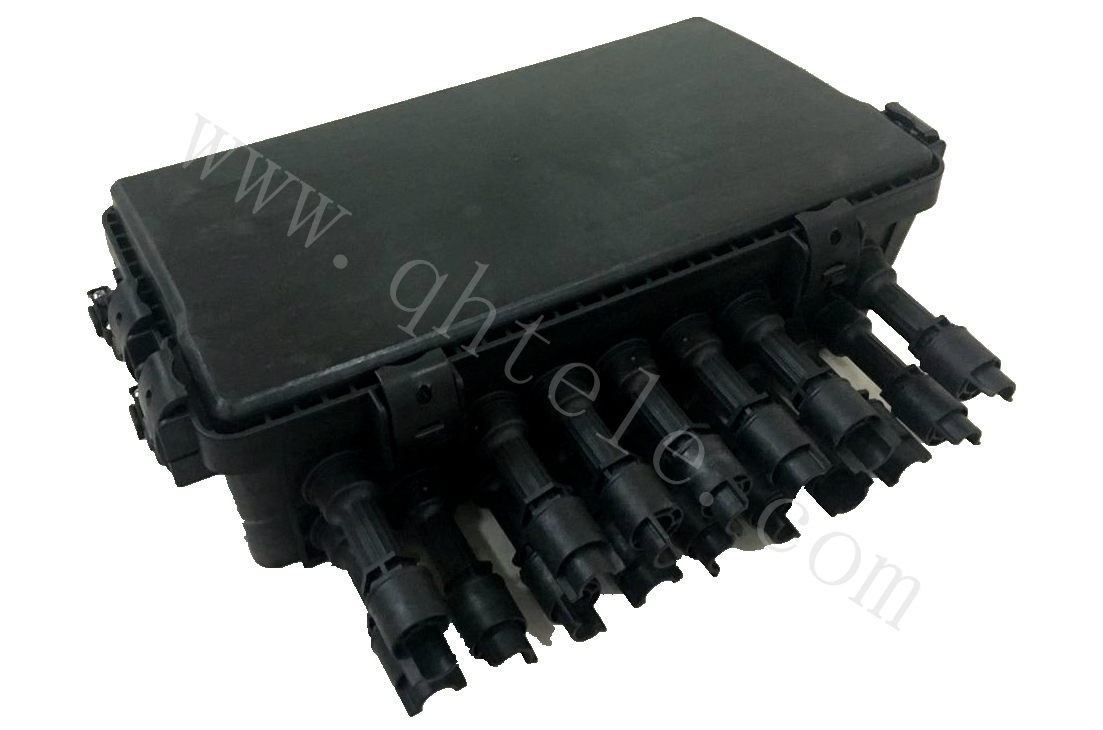

H33 optic cable splice closure with fast connector exit
It is used to splice cable with max. 12.5mm dia.and allow 16 pcs drop cable with fast connector exit. Adopt engineering plastic in scientific formula with excellent mechanical strength, can prevent aging effectively caused by cold, hot, oxygen, UV etc. Can splice and connect the optic fibers in aerial, pole or wall mounting environment. Reliable sealing performance, convenient for repeated use.
Feature
1)Ingress Protection: IP65
2)Sealwith silicon rubber ring at the closure body and entry ports. Adopt plastic clip type lock for
easy reopen and maintenance
3)Provide 4 pcs 12~24F entry port block and sealing tape for flexible application. Guarantee a reliable and
practical seal performance of the entry ports.

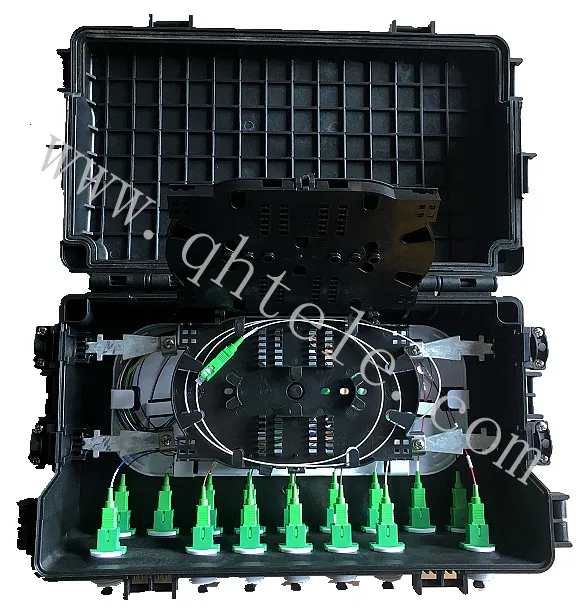

4)Adapter number: max hold 16pcs simplex SC installation sized adapters.
5)Splitter:avilable for 1pc 2:16 or 2 pcs 1:8 micro PLC splitter's adapters
6)All the metal part use Stainless Steel material.
7)Advantage of fast connector exit: No need to open the closure for adjusting the signal. Only plug the fast connectors to adjust. More convenience.
Main Technical Index
1)Available optic fiber bending radius :≥37.5mm
2)Excessive loss fiber length :≥1.6m
3)Max splice capacity:48F (single fiber)
4)Working Temperature:-40ºC~+70ºC
5)Lateral pressure resistance:≥2000N/10cm
6)Impact resistance :≥20N.m

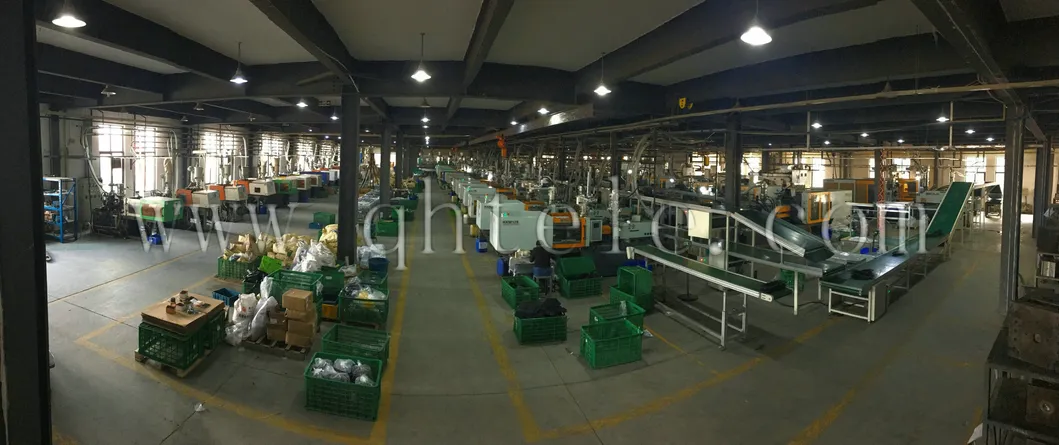

Relating Producing Line:
It is used to splice cable with max. 12.5mm dia.and allow 16 pcs drop cable with fast connector exit. Adopt engineering plastic in scientific formula with excellent mechanical strength, can prevent aging effectively caused by cold, hot, oxygen, UV etc. Can splice and connect the optic fibers in aerial, pole or wall mounting environment. Reliable sealing performance, convenient for repeated use.

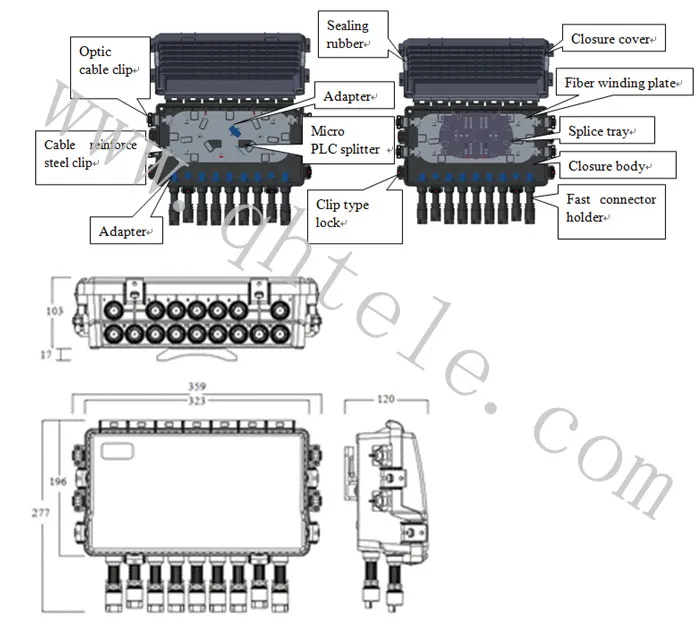

| Specification | Dia. (mm) Biggest point | Max capacity | No. Of Ports | Available Splitter | Max. Adapter Number |
| GP01-H33JF4(16)-48 | 359*277*120 | 48 fibers 24F/tray | 2 pcs round on both side: for 8-12mm 16pcs fast connector ports for drop cable | 1pc 1*16 or 2pcs 1*8 micro PLC splitter | 16 |
| Mechanical sealing with Silicon rubber and Clip type lock. | |||||
Feature
1)Ingress Protection: IP65
2)Sealwith silicon rubber ring at the closure body and entry ports. Adopt plastic clip type lock for
easy reopen and maintenance
3)Provide 4 pcs 12~24F entry port block and sealing tape for flexible application. Guarantee a reliable and
practical seal performance of the entry ports.
4)Adapter number: max hold 16pcs simplex SC installation sized adapters.
5)Splitter:avilable for 1pc 2:16 or 2 pcs 1:8 micro PLC splitter's adapters
6)All the metal part use Stainless Steel material.
7)Advantage of fast connector exit: No need to open the closure for adjusting the signal. Only plug the fast connectors to adjust. More convenience.
Main Technical Index
1)Available optic fiber bending radius :≥37.5mm
2)Excessive loss fiber length :≥1.6m
3)Max splice capacity:48F (single fiber)
4)Working Temperature:-40ºC~+70ºC
5)Lateral pressure resistance:≥2000N/10cm
6)Impact resistance :≥20N.m
Relating Producing Line:
