Product Description

Technical Parameters	WS-LT1300-3***	WS-LT1300-5***
Output optical power	2~30mW	3~10dBm
Wavelength	1310nm±20	1550nm±15
Laser type	DFB laser
Optical modulation	Direct light intensity modulation
Optical connector form	FC/APC&SC/APC(customize)
Frequency Range	47~860MHz(customize 1000MHz)
RF input level	75~90dBuV(Recommended best value 80dBuV)
In-band flatness	±1dB
AGC accuracy	0.5dB
MGC adjustment range	0~15dB
RF input impedance	75Ω
Input reflection loss	≥16
C/CTB	≥65
C/CSO	≥60
Carrier to noise ratio (C/N)	≥51
Supply voltage	AC220V(160V ~ 265V) /AC110V(90 ~130V)/DC48V(38 - 58V)
Total power consumption	<12W
Operating temperature	-5ºC~+45ºC
Relative humidity	95% max, no condensation
Storage temperature	-30ºC~+70ºC
Product net size	357(W)482(L)44(H)
Single product packaging size	595(W)490(L)120(H)
FCL package size (2 sets)	595(W)490(L)230(H)

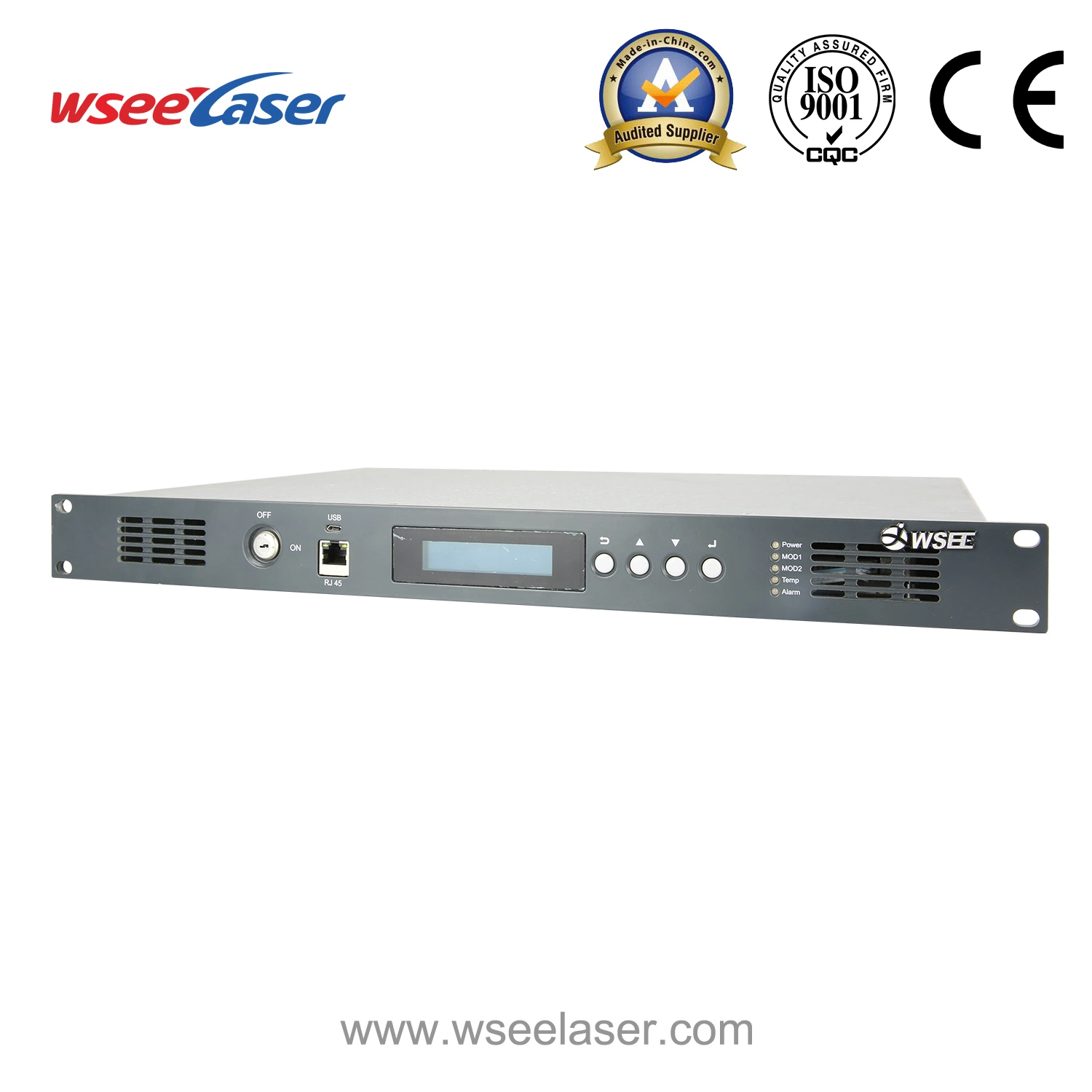

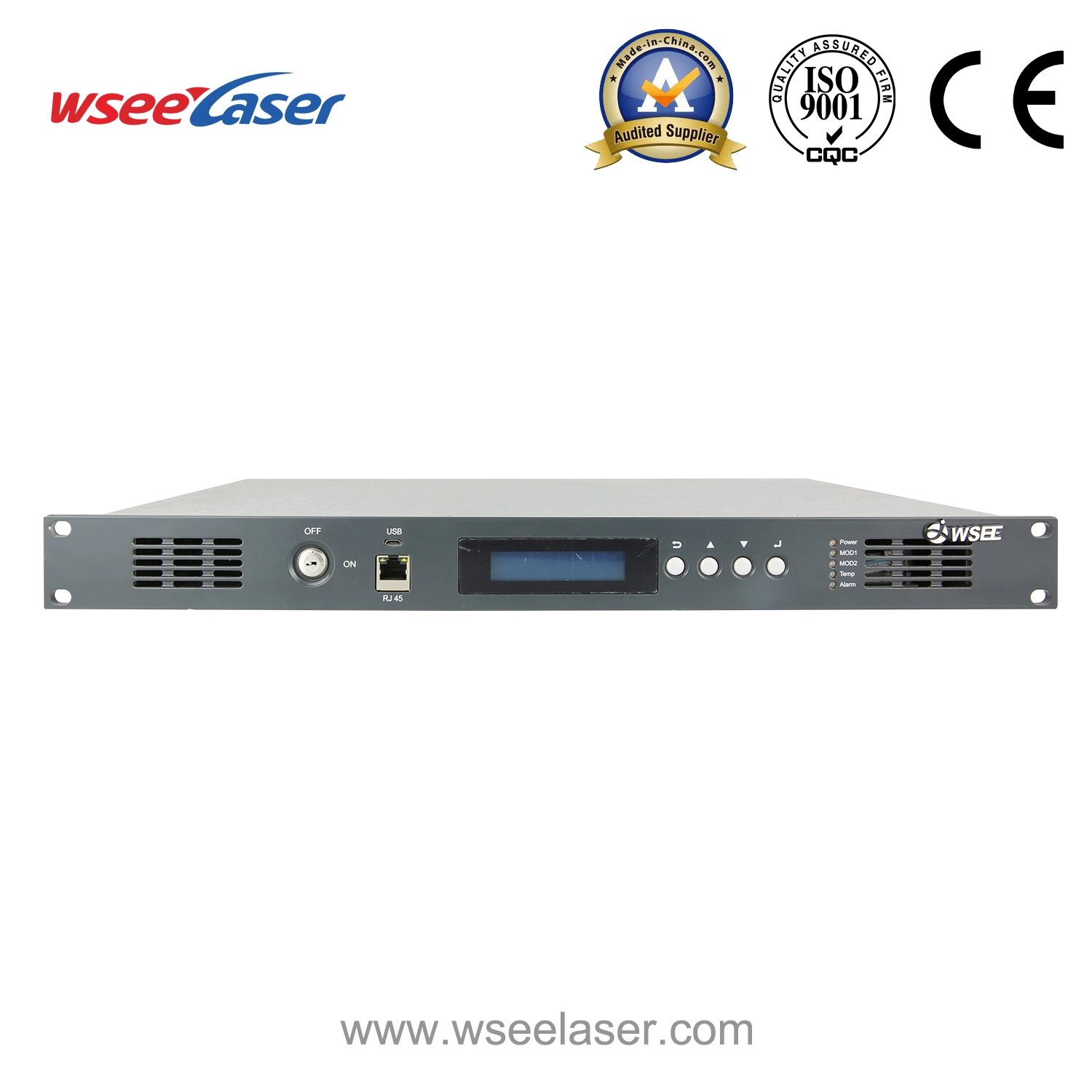

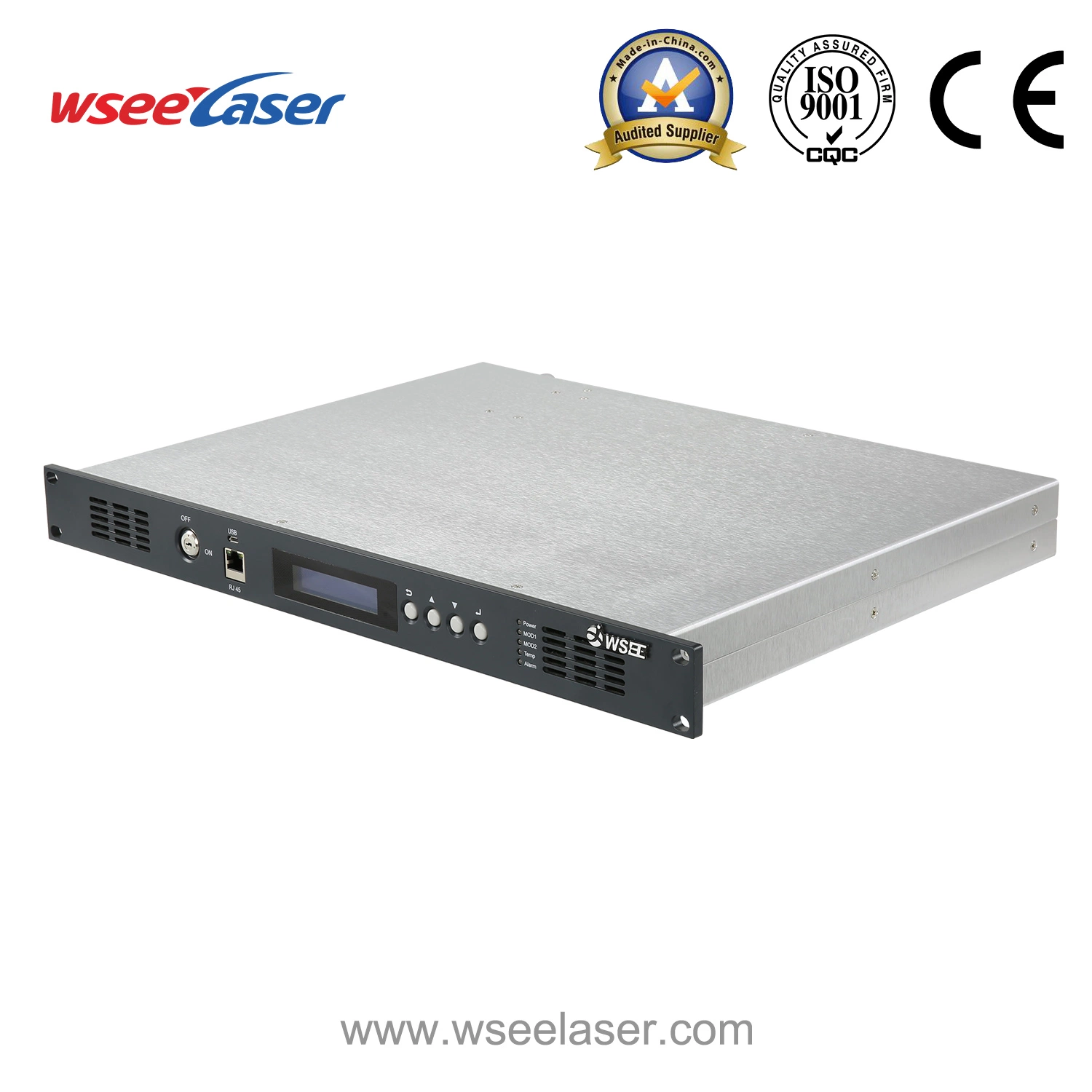

WS-LT1300 optical transmitter is designed according to CATV standard. It modulates CATV RF amplitude signal into 1310nm/1550nm optical signal, and then transmits it to optical node in HFC network through single-mode optical fiber. It is mainly used for TV signal medium-sized network transmission and can be used for many purposes. The high-power optical amplifiers are used for the laying of fiber-to-the-home (FTTH) networks.
The WS-LT1300 optical transmitter is equipped with a reliable and stable optical output power circuit and a pump laser thermoelectric cooler temperature control circuit to ensure the best performance of the equipment. Professional cooling structure design, intelligent temperature control fan, low power consumption. It is an ideal choice for building CATV secondary network signal transmission. Factory Direct CATV Fiber Optical Transmitter Modulated 1310 1550 at The Wholesale Price

47-862MHz (1000Mhz can be customized) operating bandwidth.

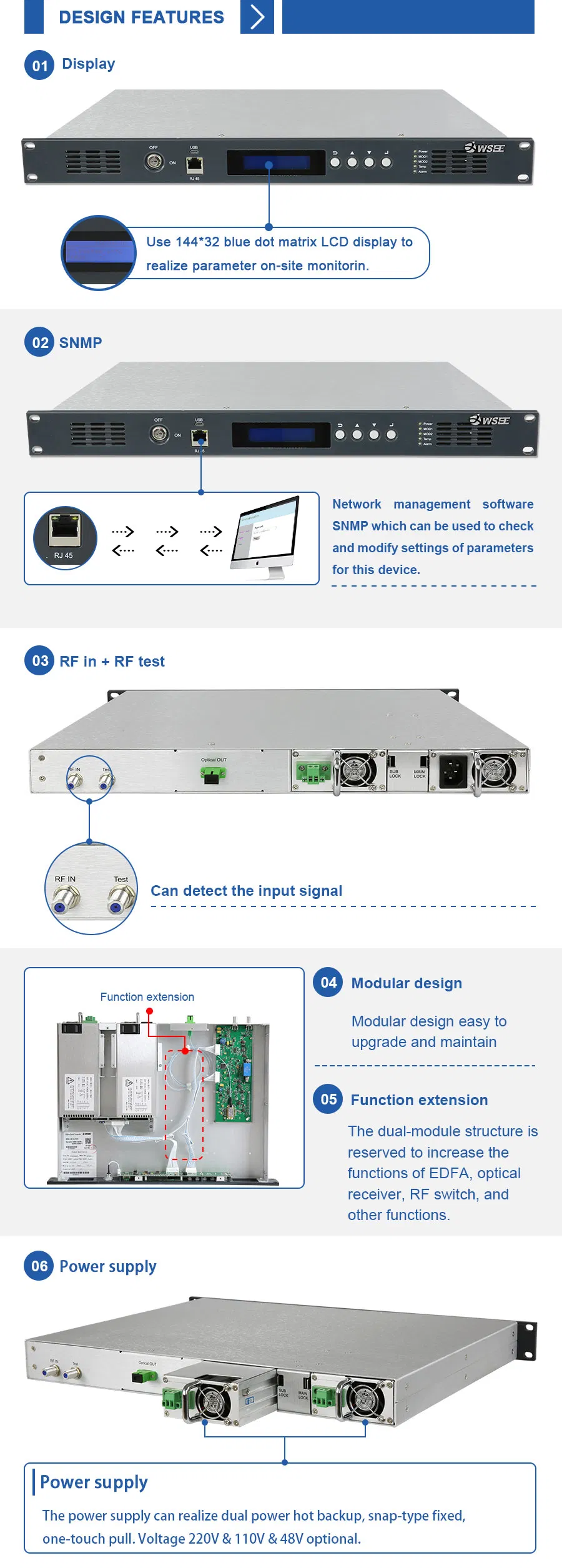

Modular structure, easy to expand the function of equipment and maintenance.
Standard network management interface, in line with SNMP network management protocol.
The power supply can realize dual power hot backup, snap-type fixed, one-touch pull. Easy to operate, firmly fixed. Voltage 220V & 110V & 48V optional.
The 32-bit ARM processor can efficiently coordinate the working status of each module and accurately monitor and control each operating parameter.
The advanced multi-frequency RF predistortion technology uses RF power automatic processing technology to automatically optimize the drive level so that the C/CTB, C/CSO, and C/N specifications are always at optimal values.
The use of high-performance DFB lasers of international famous brands has narrow spectral lines, good linearity, and high output power.
