EDFA 1550 16 Pon EDFA EDFA 1550nm Amplificador Optico

Product Description

edfa 1550 16 pon edfa edfa 1550nm amplificador optico

EDFA 1550 16 Pon EDFA EDFA 1550nm Amplificador Optico

I. Product Overview

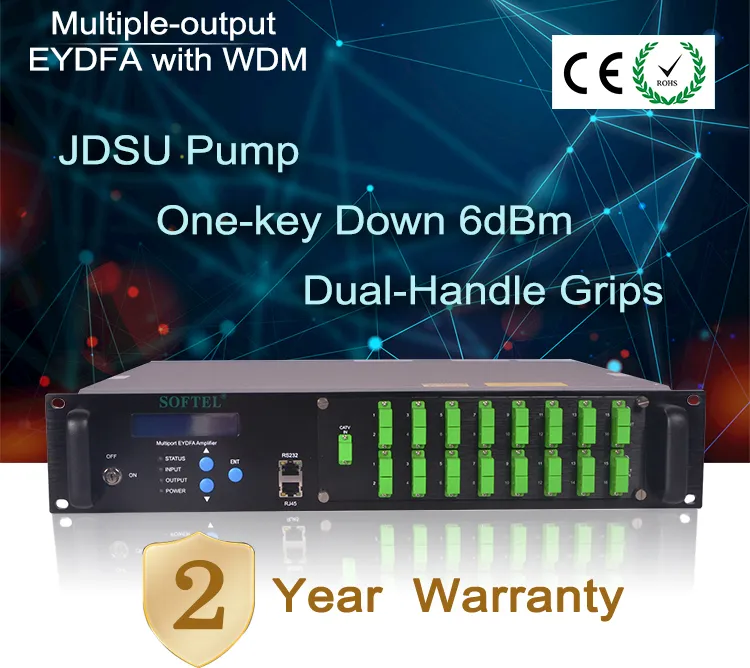

1550nm series multi-outputs optical amplifier gain spectrum bandwidth between 1545~1563nm, adopt high reliability multimode pump laser and double clad fiber, the unique APC,ACC and ATC circuit, the max output power can reach to 40dBm, one device and replace the original several to dozens traditional EDFA, can greatly save the cost and maintenance expense, improve the stability of the network operation, high output power 1550nm optical amplifier is playing an increasingly important role in the continuous extension of the optical fiber network, providing a flexible and low-cost solution for the wide coverage of CATV system in large and medium-sized cities.
EDFA 1550 16 Pon EDFA EDFA 1550nm Amplificador Optico

EDFA 1550 16 Pon EDFA EDFA 1550nm Amplificador Optico

II. Features

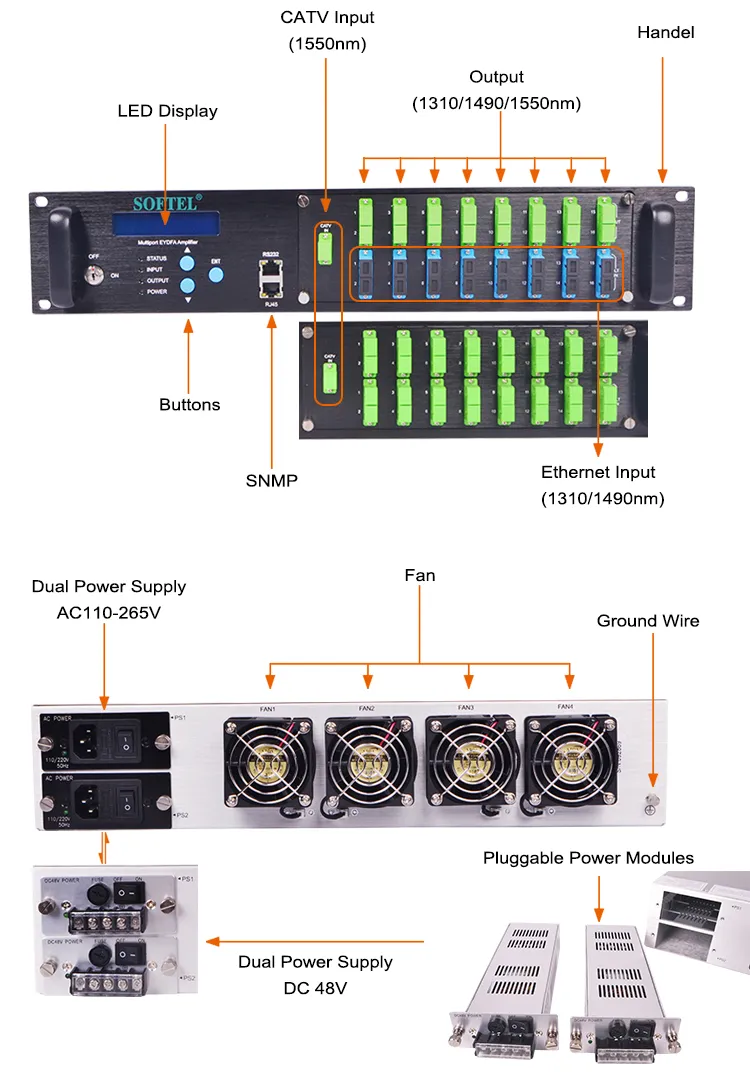

1. Optical switch optional: Single/dual input for choice, built-in optical switch for dual input, the switching power can be set by the button in the front panel or by web SNMP,can set the threshold and select manually or automatically.
2. Output adjustable: Output adjustable by buttons in the front panel or web SNMP, the range is down 4dBm. Maintenance function of one-time downward attenuation of 6dBm by buttons in the front panel or web SNMP, to facilitate the optical fiber hot-plug operation without turn off the device
3. Output port number optional: according to the customer's requirements, there are 8 ports,16 ports,32 ports,64 ports, and 128 port; also can select 1310/1490/1550WDM, the max total output power can reach to 40dBm.
4. SNMP: Standard RJ45 port for remote control, provide web management function.
5. Laser key: With laser key, can turn ON/OFF the laser.
6. RF Test: With RF test function.(According to customer's requirement)
7. High-quality laser: Laser adopts brand-new imported laser Lumentum(JDSU) and 2-5 from the USA, Fitel from Japan, to guarantee stable operation.
8. Perfect warning mechanism: microprocessor to monitor the working status of the laser and the LCD display the device's function and fault warning on the front panel etc.

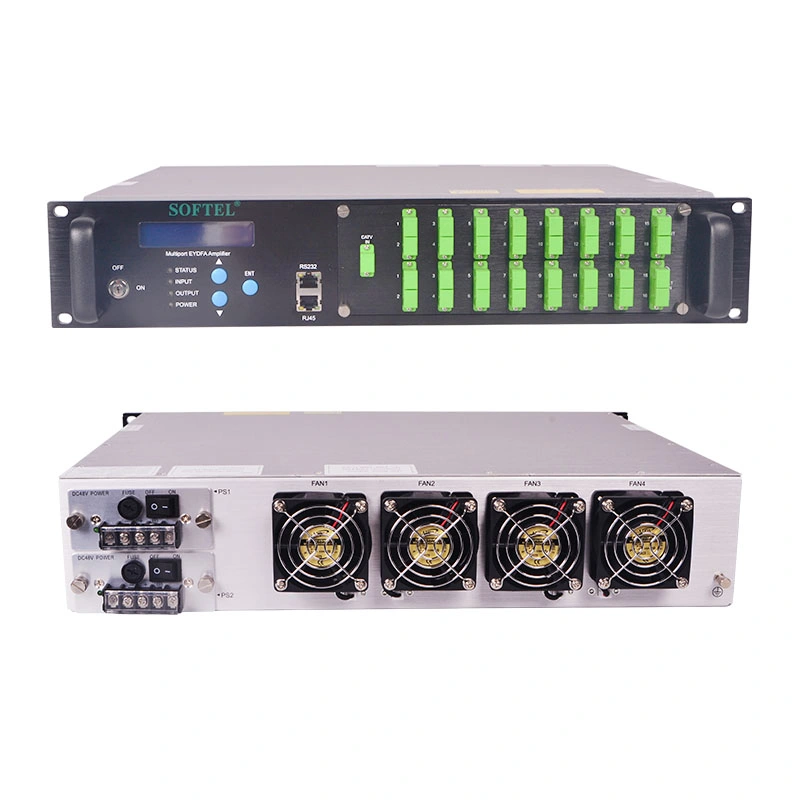

9. Dual power supply guarantee: high-quality power supply(hot-plug optional),can work under 90V~265VAC or-48VDC.
EDFA 1550 16 Pon EDFA EDFA 1550nm Amplificador Optico

EDFA 1550 16 Pon EDFA EDFA 1550nm Amplificador Optico

No.	Item		Technical Parameter			Unit	Remarks
No.	Item		Min	Typical	Max	Unit	Remarks
3.1.1	Wavelength		1545		1565	nm
3.1.2	Input Power Range		-8		10	dBm
3.1.3	Output Power Range		26		40	dBm
3.1.4	Output Stability				±0.3	dBm
3.1.5	Output adjust range			↓4.0		dBm
3.1.6	Noise figure			≤6		dB	Input 0dBm, λ=1550nm
3.1.7	Return Loss	Input		45		dB
3.1.7	Return Loss	Output		45		dB
3.1.8	Connector Type		FC/APC, SC/APC, SC/UPC
3.1.9	C/N			51		dB	Test by GT/T 184-2002
3.1.10	C/CTB			65		dB
3.1.11	C/CSO			65		dB
3.1.12	Power supply		AC110V - 250V( 50 Hz);DC48V			V
3.1.13	Consumption		50	80	100	W	Depend on the Output Power
3.1.14	Working Remp Range		-5		55	ºC
3.1.15	Max Working Relative Humidity		95% No Condensation			%
3.1.16	Storage Temp Range		-30		70	ºC
3.1.17	Max Storage Relative Humidity		95% No condensation			%

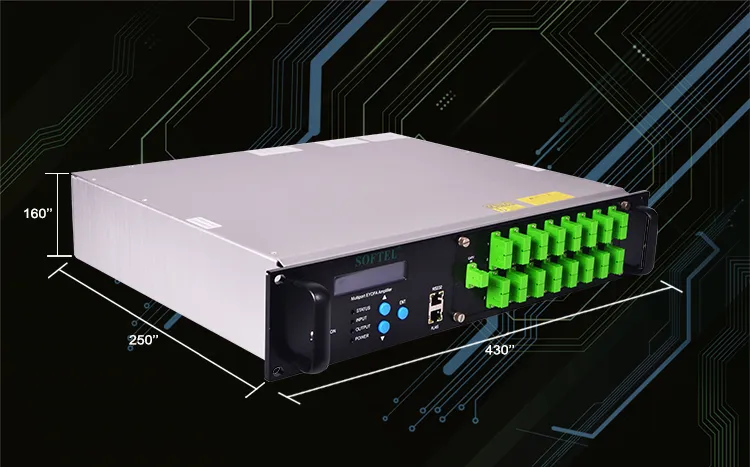

3.1.18	Dimension		370(L)×486(W)×88(H)			mm
3.1.19	Net Weight( Kg)		8			Kg
Dual input with Optical Switch Model
3.1.20	Insertion loss		1			dB
3.1.21	Channel interference		55			dB
3.1.22	Switch time		≤20			ms

EDFA 1550 16 Pon EDFA EDFA 1550nm Amplificador Optico
