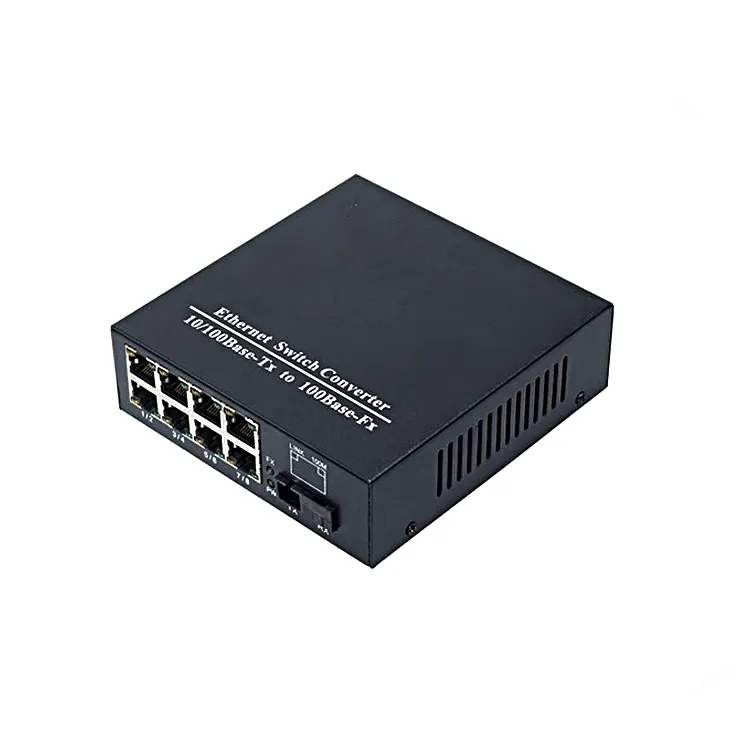

Dys Bidi Wdm Single Fiber 10/100/1000m 1310/ 1550 20km Llf LFP SFP Fiber Optic Media Converter OEM Factory
DYS BIDI WDM single fiber 10/100/1000M 1310/1550 20km LLF LFP sfp fiber optic media converter oem factory DYS has over 100 models of Managed and Unmanaged Media Converters to extend copper to fiber, multimode to multimode and multimode to single mode fiber. To choose the best Media Converter for you......
Send Inquiry
Product Description
DYS BIDI WDM single fiber 10/100/1000M 1310/1550 20km LLF LFP sfp fiber optic media converter oem factory
APPLICATIONS
A fiber media converter is a simple networking device that makes it possible to connect two dissimilar media types such as twisted pair with fiber optic cabling.
Used in interconnecting fiber optic cabling-based systems with existing copper-based, structured cabling systems.
Used in metropolitan area network (MAN) access and data transport services to enterprise customers.
FEATURES
Extend network distances up to 160km
onduct 10/100/1000/2500/10000 Ethernet Rate Conversion
SX, FX, LX, EX, ZX, BX fiber support
Multimode and single mode fiber
10BaseT, Fast Ethernet Gigabit and 10G to fiber
Advanced Features : Link Pass-Through, Far-End Fault, Auto-MDIX, Fiber Fault Alert, Loopback
Manage via SNMP, CLI- Telnet/SSH, Internet Browser
PoE Media Converters provide PoE PSE power injection over UTP Ethernet
SFP Media Converters with pluggable fiber optic ports for use with MSA compliant SFPs.
Managed Media Converters with extensive security and network integration features
Industrial Temperature Media Converters for equipment in -40C to +75C operating temperatures

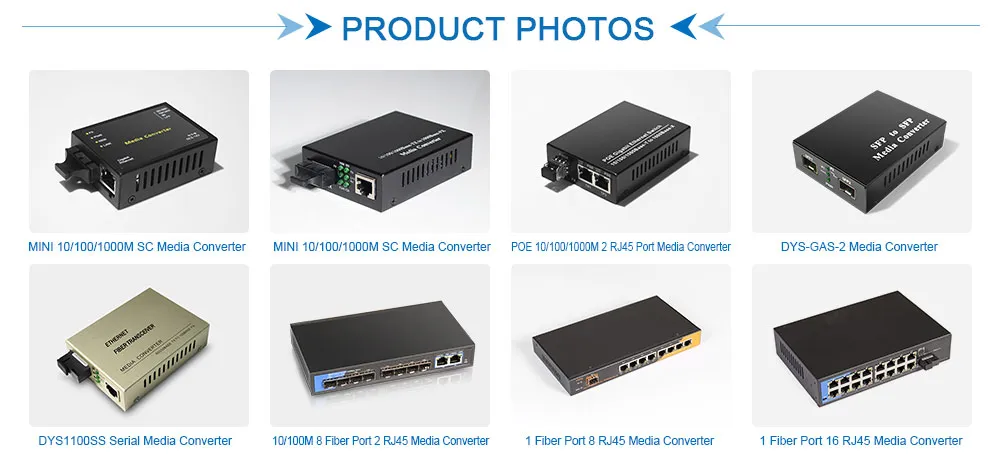

1. Stand-alone Media Converters
Stand-alone Media Converters (Managed or Unmanaged) bridge the gap between copper and fiber infrastructures. These robust and feature rich products are designed to be used where Ethernet to fiber converters need to be quickly implemented. DYS has an extensive range of Media Converters to meet every fiber conversion need.
2. Industrial Media Converters
Industrial Media Converters transparently connect copper to fiber, multimode to multimode and multimode to single mode fiber in locations that are exposed to harsh operating conditions. They are ideal for extending the distance of copper devices such as IP cameras and wireless access points found in traffic management, oil and gas pipelines, weather tracking, industrial and outdoor applications.
3.PoE Media Converters
DYS's feature rich PoE Media Converters transparently connect copper to fiber while providing Power over Ethernet ( PoE ) to standards-based PoE and PoE+ compliant devices such as IP cameras, VoIP phones and wireless access points.
- Fiber to copper Ethernet converter and PoE injector all in one device
- Extend network distances up to 160km [100 miles]
- Supply PSE power to PoE and PoE+ compliant devices
- Provide 15.4 to 30 Watts of PoE power
- IEEE 802.3af and IEEE802.3at compliant
- Industrial Temperature Media Converters for equipment in -40C to +75C operating temperatures
PRODUCT PARAMETERS
| Forwarding Mode | Store-and-Forward | |||||
| LED Indicators | Power, FX 100, Link/Act, TX 100, FDX, Link/Act | |||||
| Power Supply | Input:AC 100~250V | Output:DC 5V 1A | ||||
| (default) or Input:DC: -36V~-72V | ||||||
| Output:DC 5V 1A (Optional) | ||||||
| Power Consumption | 5W | |||||
| Working Environment | Working temperature: -10~55ºC | Storage temperature: -20~75ºC | Relative Humidity: 5%~95 %( no condensation) | |||
| Storage temperature: -20~75ºC | ||||||
| Relative Humidity: 5%~95 %( no condensation) | ||||||
| Installation | DIN-Rail or Wall mounts,Optional,Default device is not | |||||
| MTBF | More than 100000 hours | |||||
| Network Protocols | IEEE802.3u | |||||
| 10/100Base-TX | ||||||
| 100Base-FX | ||||||
| Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) | 100BASE-TX: Cat5 or later UTP(≤100 meter) | 1000BASE-TX: Cat6 or later UTP(≤100 meter) | |||
| Fiber Media | Multi-mode:550M- 2KM | Single-mode: 20/40/60/80/100KM | ||||
| Packing List | 1× Media Converter | 1×User Manual | 1×power adapter | |||
