DWDM Module High Density Mux Demux Module Wdm CWDM Module Low Insertion Loss Fwdm CWDM Mux 1310/1490/ 1550 Fwdm CWDM Mux Dem Module
DWDM module High density MUX DEMUX module WDM CWDM Module Low insertion loss fwdm cwdm mux 1310/1490/1550 FWDM cwdm mux dem moduleDWDM ModuleDWDM multi-channel multiplexer /demultiplexer (Mux / DeMux) modules are available on ITU channel spacing of 200GHz. They demonstrate low loss, temperature inse......
Send Inquiry
Product Description
DWDM module High density MUX DEMUX module WDM CWDM Module Low insertion loss fwdm cwdm mux 1310/1490/1550 FWDM cwdm mux dem module

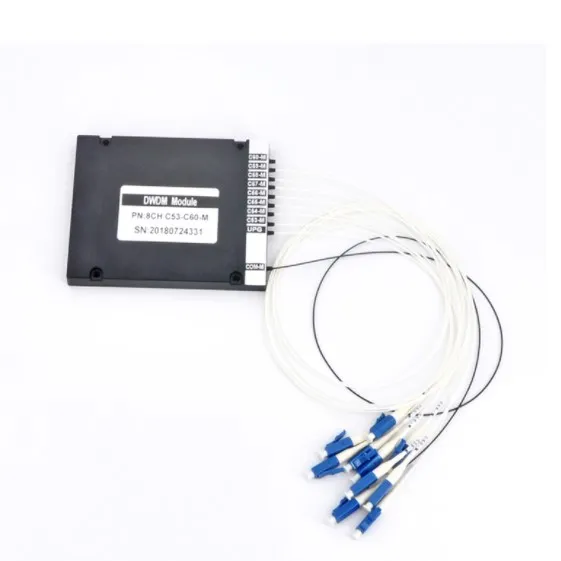

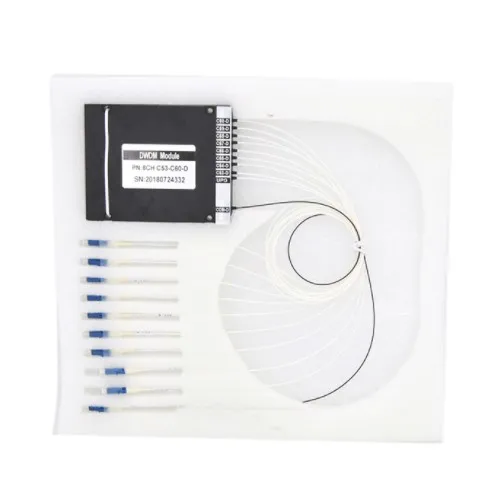

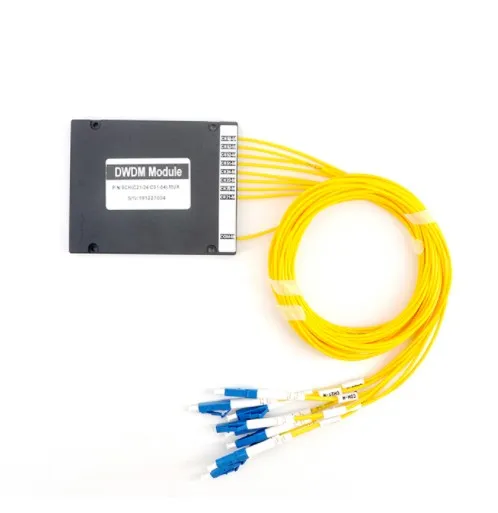

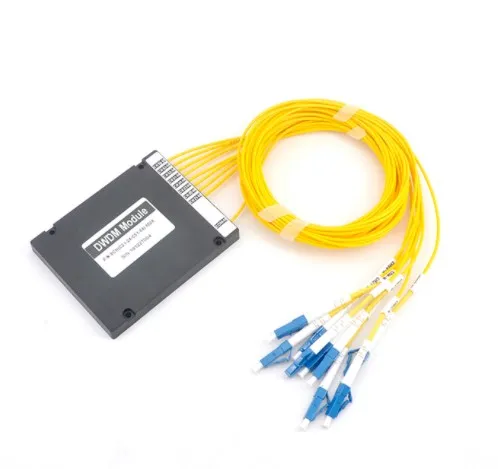

DWDM Module
DWDM multi-channel multiplexer /demultiplexer (Mux / DeMux) modules are available on ITU channel spacing of 200GHz. They demonstrate low loss, temperature insensitivity and reliable performance in any system application. Mux/DeMux modules offer low-cost wavelength management solutions that are suitable for long haul, metro, and access application.
Main Features:
Supply Ability
Supply Ability:10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details:Cartons
Port:Shenzhen or Hongkong
- 100GHz ITU Channel Spacing
- Low insertion loss
- broadband transmission
- high channel isolation
- High stability and reliability
- Epoxy-free optical path
| Parameter | Mux | Demux | |
| Operating Wavelength (nm) | ITU 200 GHz Grid | ||
| Central Wavelength Accuracy (nm) | ± 0.1 | ||
| Min Channel Spacing (GHz) | 200 | ||
| Passband (@-0.5dB bandwidth) (nm) | >0.5 | ||
| Insertion Loss(dB) | < 3.8 | ||
| Passband Flatness(dB) | < 0.4 | ||
| Add/Drop channel Isolation(dB) | Adjacent Channel | N/A | >30 |
| Non-adjacent Channel | N/A | >40 | |
| Insertion Loss Temperature (dB/°C) | < 0.005 | ||
| Wavelength Temperature Shifting (nm/ °C) | ≤0.002 | ||
| PDL (dB) | < 0.10 | ||
| PMD (PS) | ≤0.1 | ||
| Directivity (dB) | ≥50 | ||
| Return Loss (dB) | ≥45 | ||
| Rated power (m W) | 500 | ||
| Operation Temperature (°C) | 0 ~ +70 | ||
| Storage Temperature (°C) | -40 ~ +85 | ||
| Dimension (mm) | L100×W80×H10 | ||
