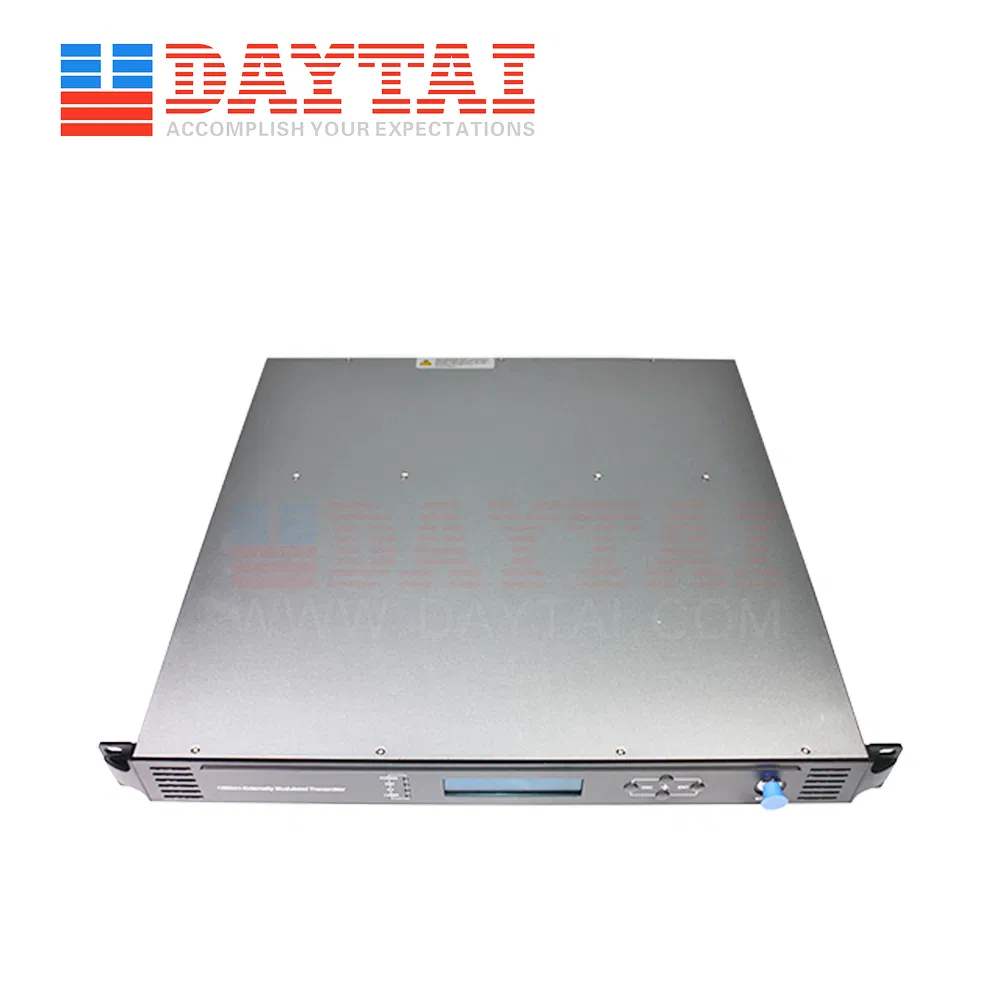

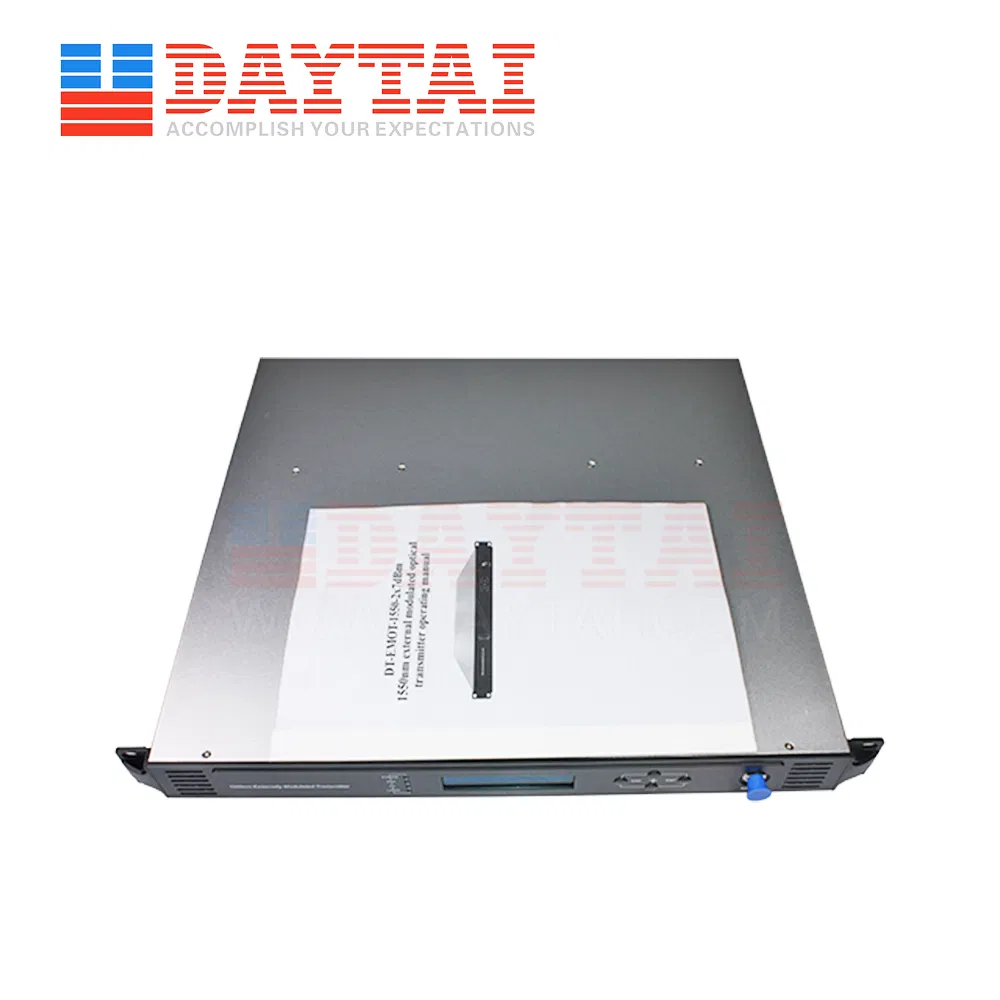

Daytai 1/2 Way 1550nm External Modulation Optical Transmitter 1550 Factory Price

Product Description

Hangzhou Daytai ,over 10 years manufacturer on fiber optic field ,offering one-stop solutions products and service ,not just items showed in this listing ,please send inquiry with your demands and requirements.

★Description

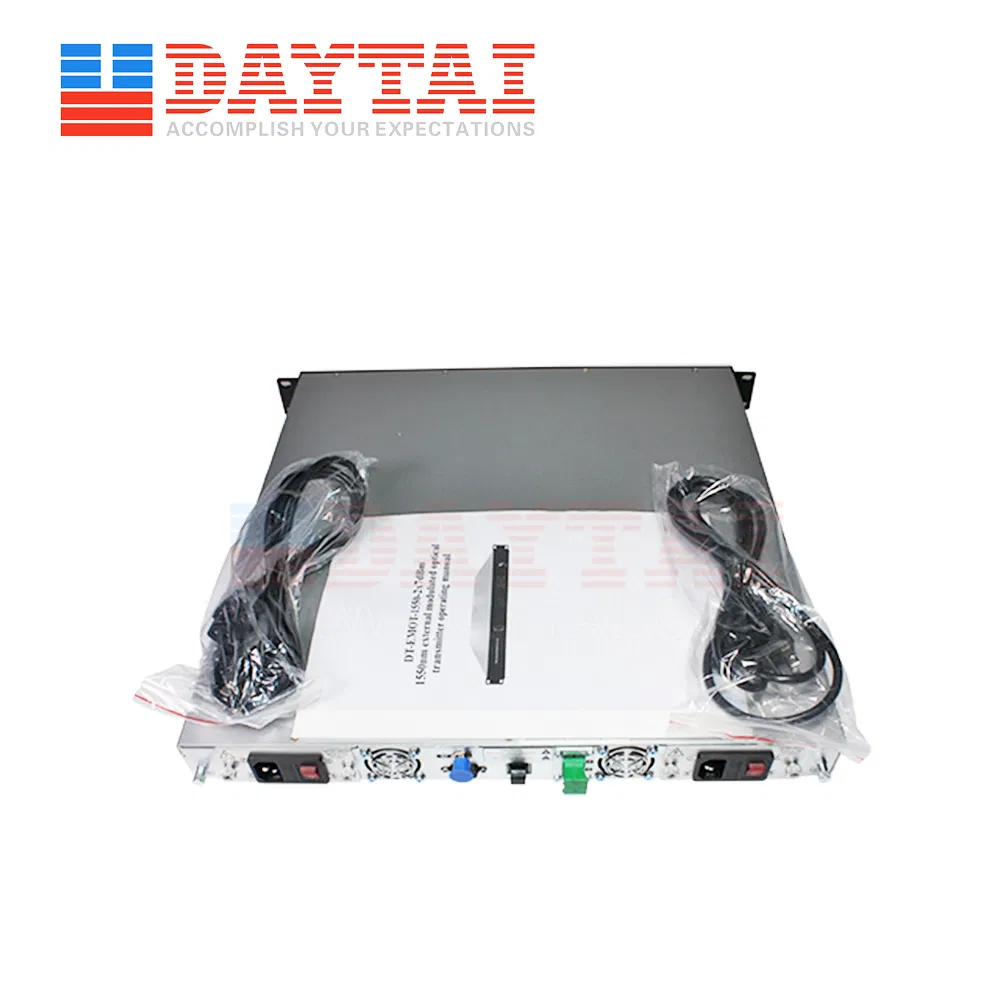

DT-1550EM-2xXXdbm series optical transmitter is a 1550nm DFB laser external modulated transmitter. It is specially developed for the CATV signal that satisfies HFC network,RF range :47~1003MHz,RF return loss: >16dB,Rated input level:80dBµV,Input level range:78~96 (AGC mode, modulating signal)dBµV,AGC control range:+3~-3dB,MGC adjustable range:0~15dB,Optical connector:SC/APC,Output Power:2 x5dBm,2x7dBm,2x9dBm,2x10dBm is Optional,American standard power supply or European standard power supply is Optional.

★Specification

Item	Unit	Technical Parameters
RF range	MHz	47~1003
RF flatness	dB	+/-0.75
RF return loss	dB	>16
RF input impedance	Ω	75
RF input connector type		F type
Rated input level	dBµV	80
Input level range	dBµV	78~96 (AGC mode, modulating signal)
AGC control range	dB	+3~-3
MGC adjustable range	dB	0~15

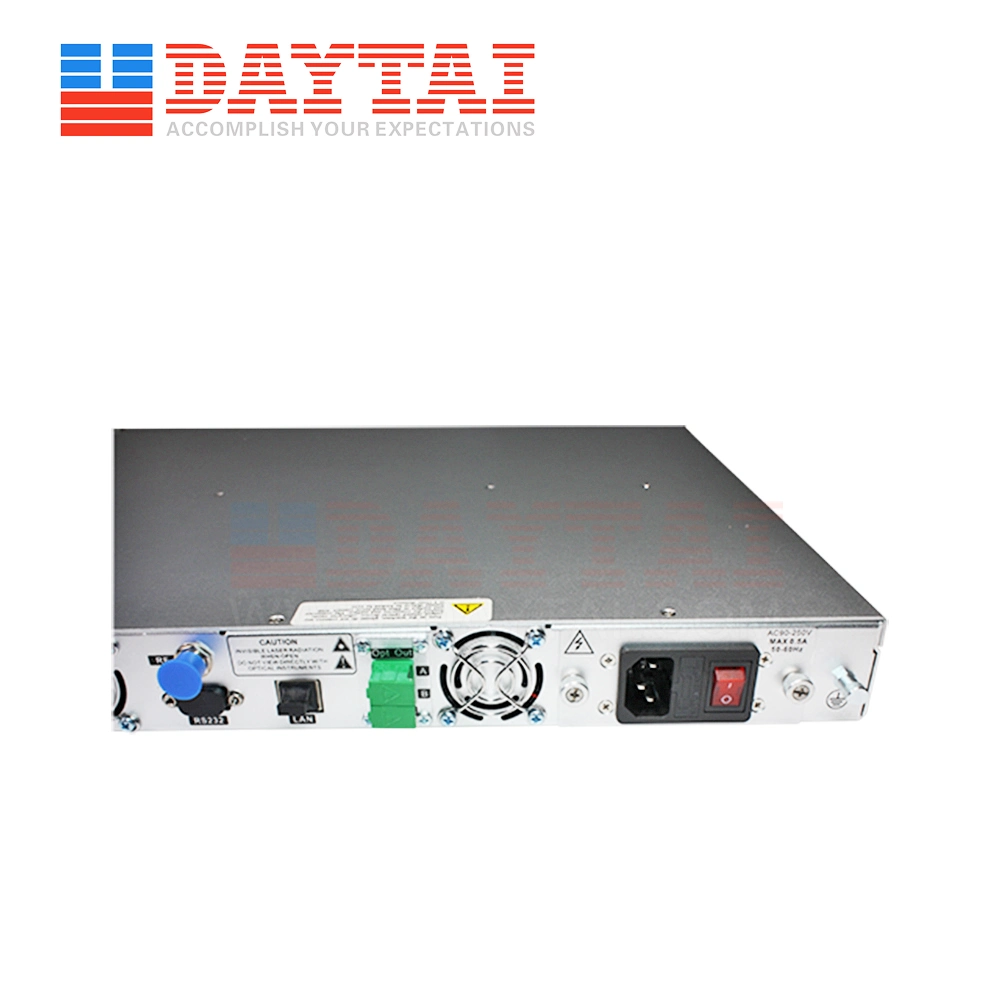

Optical connector		SC/APC, FC/APC
Operating temperature	°C	-5~45
Storage temperature	°C	-30~+70
Power Source Specification	V	90~265VAC
Power Source Specification	V	36~72VDC
Consumption	W	≤60
Dimension	mm	483(L) × 455(W) × 44(H)
Total Weight	kg	5.5
