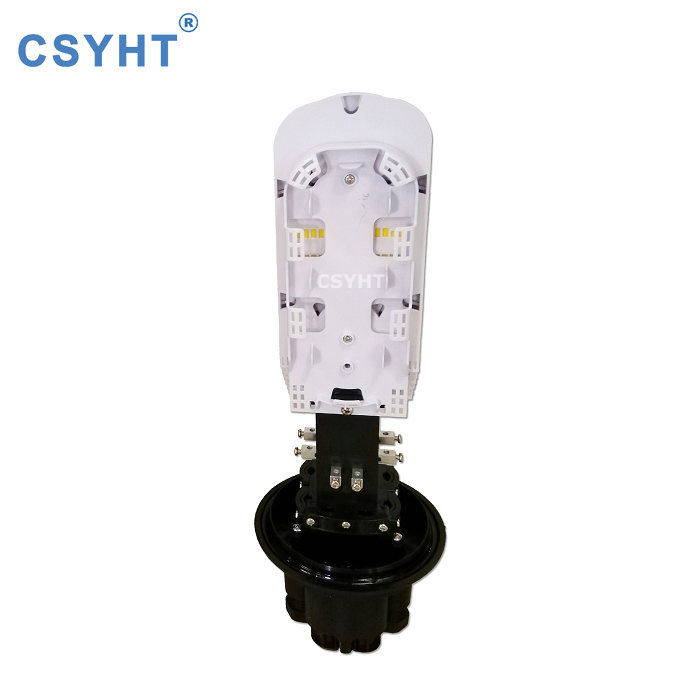

CV024 144 Foc Dome Fiber Optic Closure with Mechanical Sealing Cable Ports

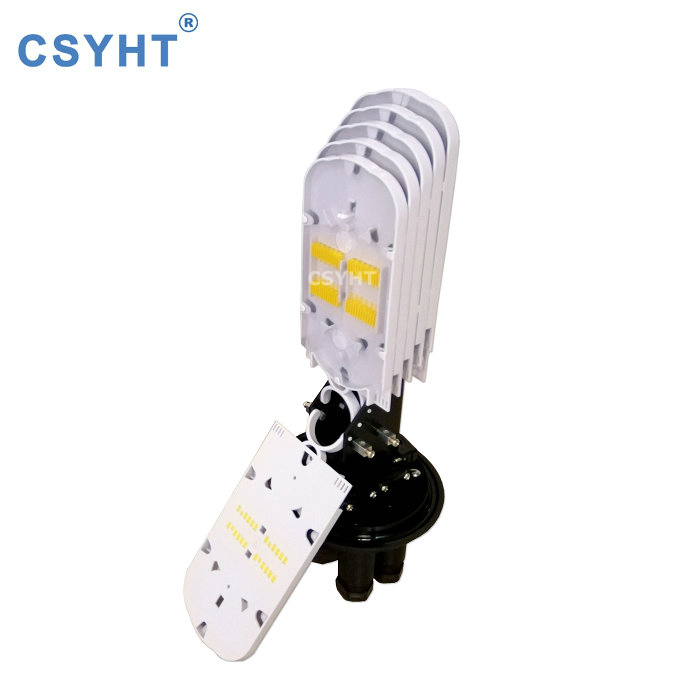

CV024 144 Foc Dome Fiber Optic Closure with Mechanical Sealing Cable PortsFiber optic splice closure CV024 is widely applied to the splicing, distributing variable optical cables and splitting. The solid box shell and the main structure can endure harsh environment.It protect the fiber optic cable f......
Send Inquiry
Product Description
CV024 144 Foc Dome Fiber Optic Closure with Mechanical Sealing Cable Ports

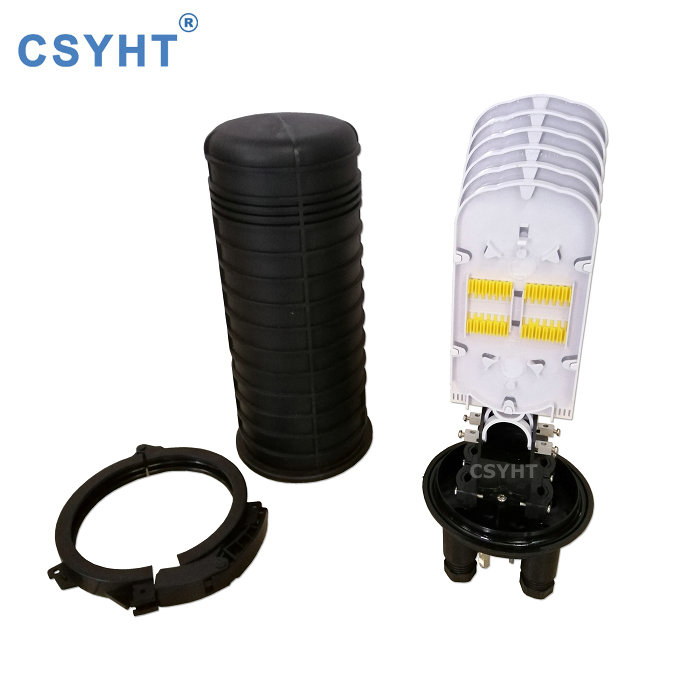

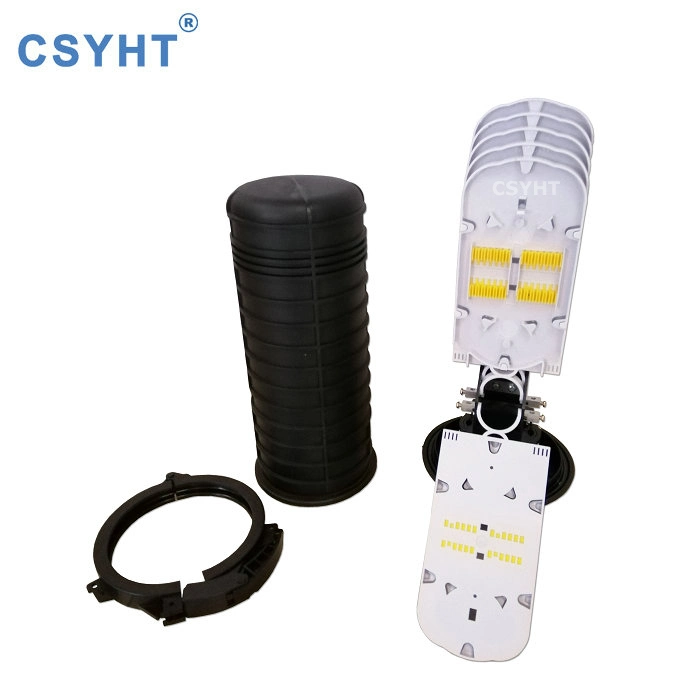

Fiber optic splice closure CV024 is widely applied to the splicing, distributing variable optical cables and splitting. The solid box shell and the main structure can endure harsh environment.It protect the fiber optic cable from vibration,impact,stretches,twists. The closure can work in -35ºC~70ºC environment,cold and heat resitance,electrical insulation,chemical corrosion resistance.
Specification:
Feature:
Material:High impact PP plastic+UV resistance agent.

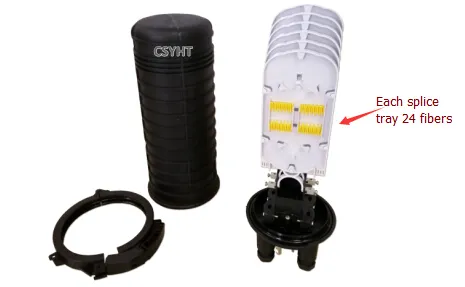

Capacity:Use OST-062 tray,Each tray for 24fiber splicing.Max. for 6 trays,144cores.

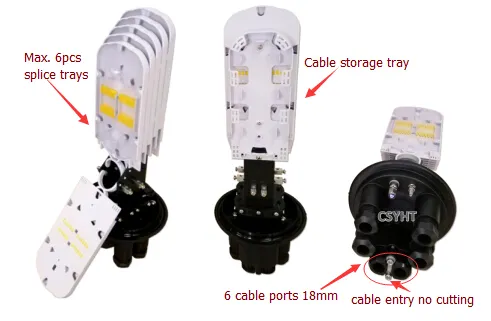

Cable ports:6pcs Ø18mm ports(2pcs Ø12mm extra spare parts)
Sealing:Mechanical sealing
IP grade:IP68
Packing information:
4 pcs per carton, each carton 53x45x44mm

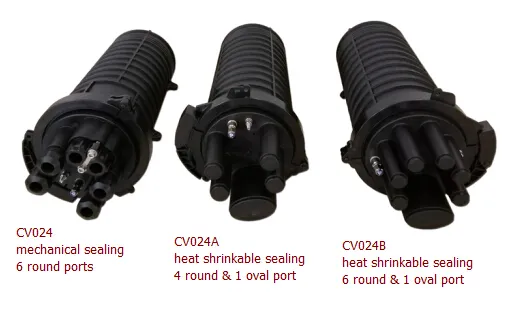

Similar models:
Fiber optic splice closure CV024 is widely applied to the splicing, distributing variable optical cables and splitting. The solid box shell and the main structure can endure harsh environment.It protect the fiber optic cable from vibration,impact,stretches,twists. The closure can work in -35ºC~70ºC environment,cold and heat resitance,electrical insulation,chemical corrosion resistance.
Specification:
| Model | Size | Material | Splice tray | Capacity | Cable port | Sealig structure |

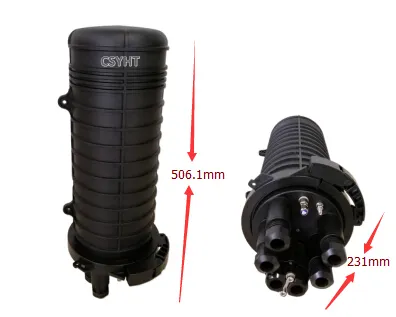

| CV024 | 231x506.1mm | PP plastic | Max. 6pcs | Max. 144 fibers | 6 cable ports | Mechanical seaing |
Feature:
Material:High impact PP plastic+UV resistance agent.
Capacity:Use OST-062 tray,Each tray for 24fiber splicing.Max. for 6 trays,144cores.
Cable ports:6pcs Ø18mm ports(2pcs Ø12mm extra spare parts)
Sealing:Mechanical sealing
IP grade:IP68
Packing information:
4 pcs per carton, each carton 53x45x44mm
Similar models:
