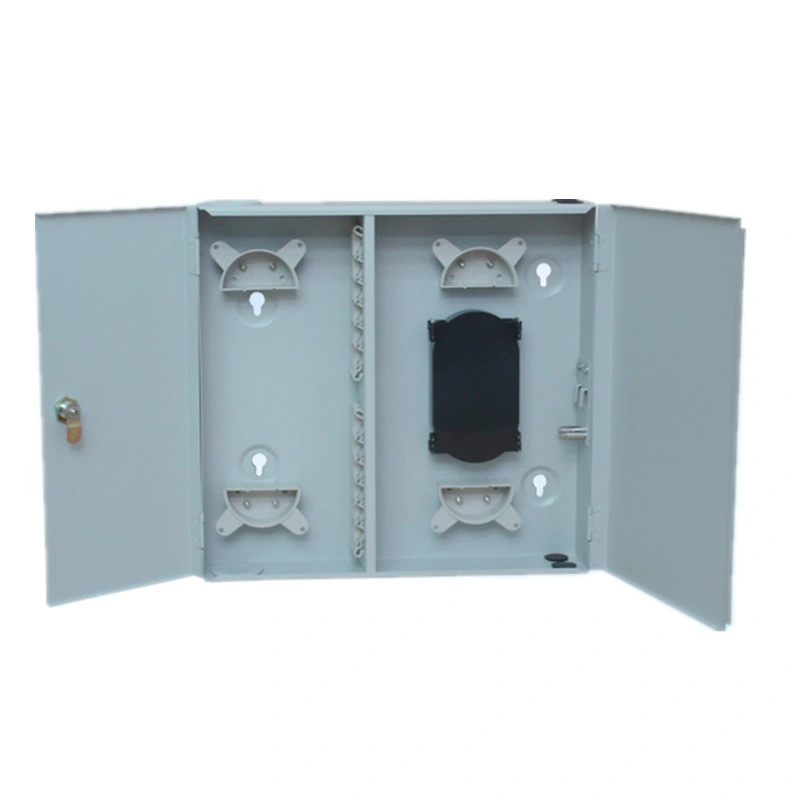

Cold-Roll Steel Indoor Wall Mounted ODF

Cold-roll steel Indoor wall mounted ODF

1. Description:
Fiber optic distribution frame provides efficient cable connections between outside plant cables and equipment inside the buildings and communications facilities.
Box integrates fiber splicing, storage and cable connections together in a unit. They can manage both bundle type and ribbon type fiber cables. It is with large working space to integrate the pigtail, cables and adapters for fiber management.
This fiber optic distribution frame is designed for indoor wall mounted using, cold-roll steel, with adapter plate & splice trays at one side for fiber splicing, distribution and management.

Cold-roll steel Indoor wall mounted ODF

2. Features:
Cold-roll steel, electrostatic painting
ABS plastic tray inside, 12cores per tray
Splice trays in one side or both sides available
Different adapter plate available: FC, SC, LC, ST…
Cable entry ports suitable for single fiber, bundle & ribbon fiber cables
Reasonable design ensures the cables are in good order
Wall mouted type, indoor using; pole mounted available
With lock on front door
8, 12, 24, 48, 96 … capacity customised

Cold-roll steel Indoor wall mounted ODF

3. Application:
Mainly used for cable inlet and fixing; fiber splicing and protecting; pigtail storage; patch cord storage, connection and use management between wiring closets and equipments.
Applicable to Telecommunications, Fiber to the home (FTTH), LAN / WAN, CATV ect. System projects.

Cold-roll steel Indoor wall mounted ODF

4. Parameters:
Operating temperature: -5~+40ºC
Relative humidity: ≤85%(+30ºC)
Atmospheric pressure:70~-106Kpa
Durability: >1000 times
Standard working wavelength: 850nm, 1310nm, 1550nm

Cold-roll steel Indoor wall mounted ODF

5. Specification:
