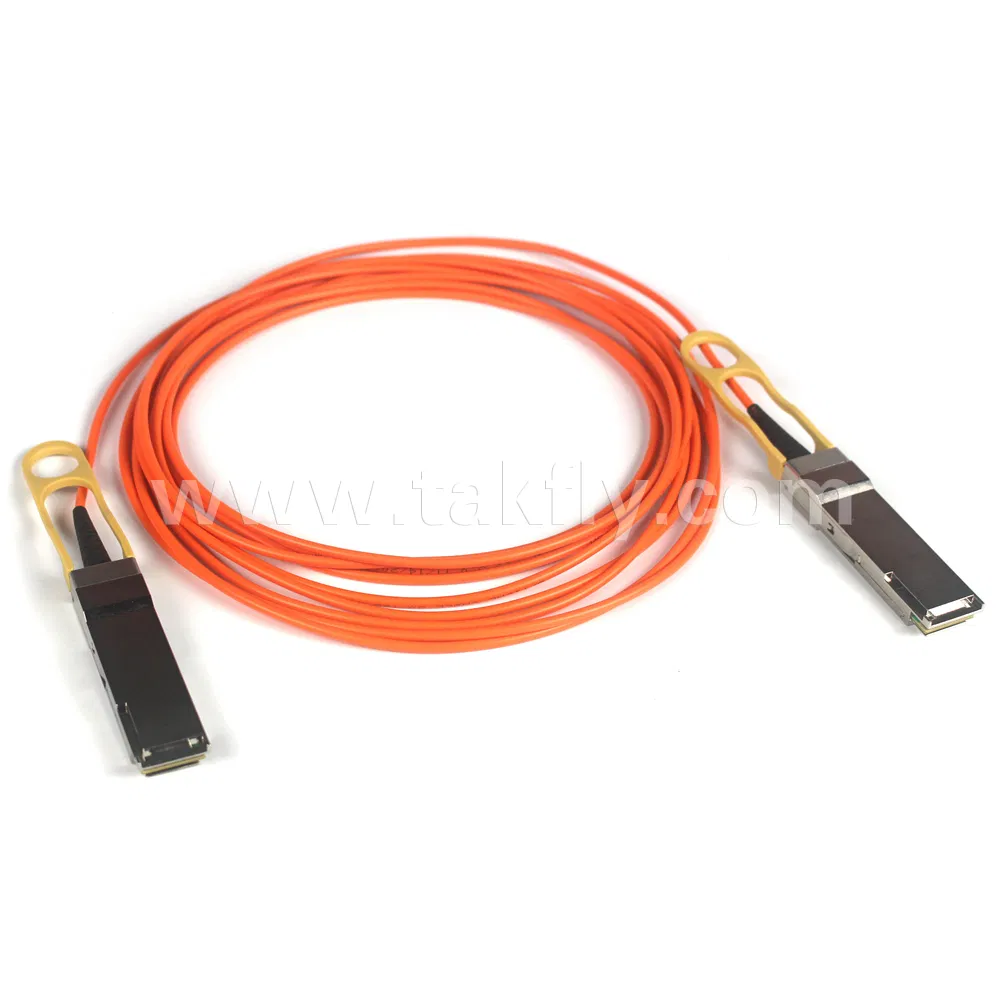

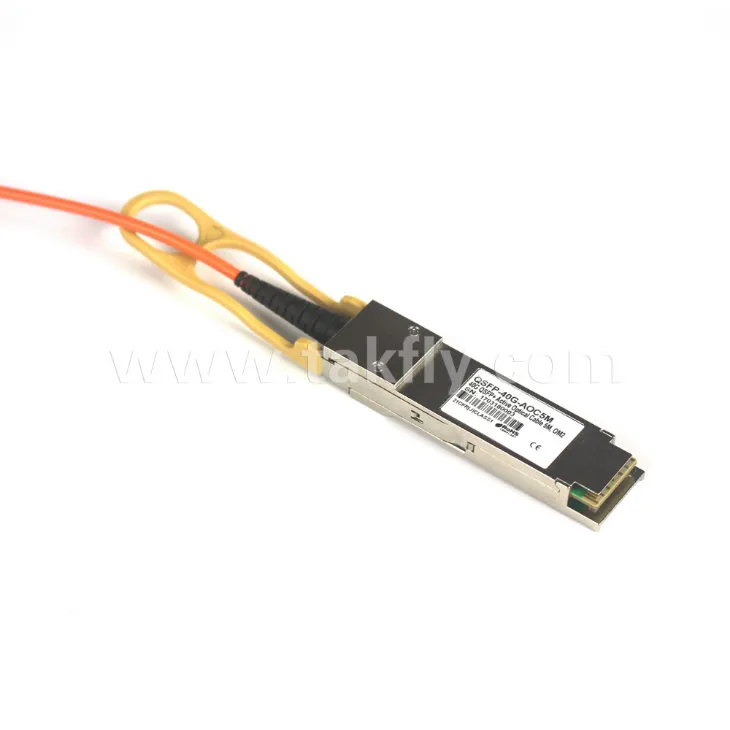

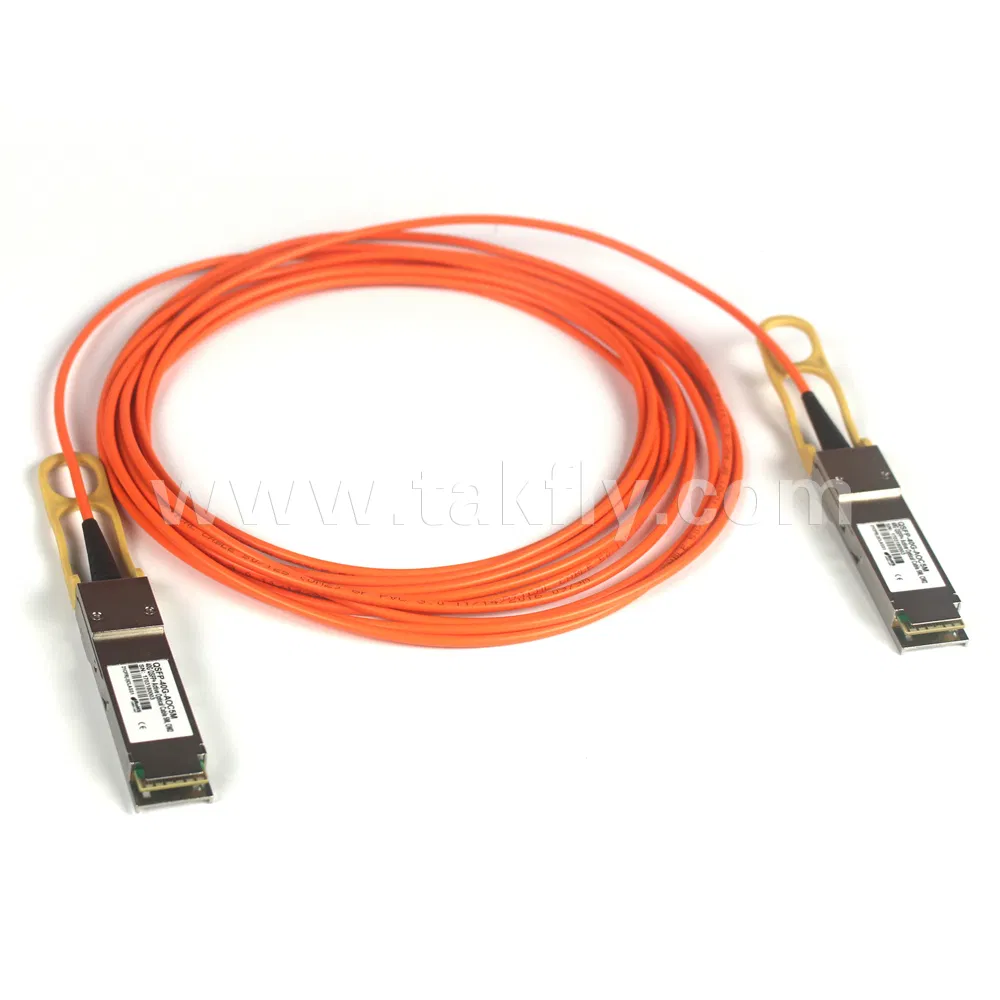

China Manufacturer 40g Qsfp+ Aoc

1.Description
qsfp+ transceiver active optic cables are a high performance, low power consumption, long reach interconnect solution supporting 40G Ethernet, fiber channel and PCIe. It is compliant with the QSFP MSA and IEEE P802.3ba 40GBASE-SR4. Gigalight QSFP AOC is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 10Gb/s, providing an aggregated rate of 40Gb/s.


2.Features
1).Full duplex 4 channel 850nm parallel active optical cable
2).Transmission data rate up to 10.3Gbit/s per channel
3).SFF-8436 QSFP+ compliant
4).Hot pluggable electrical interface
5).Differential AC-coupled high speed data interface
6).4 channels 850nm VCSEL array
7).4 channels PIN photo detector array
8).Maximum link length of 300m on OM3 Multimode Fiber (MMF)and 400m on OM4 MMF
9).Low power consumption <1.5W
10).Operating case temperature 0°C to +70°C
11).3.3V power supply voltage
12).RoHS 6 compliant


3.Applications
