Built in CWDM optical Amplifier for Gpon CATV
HA5800A

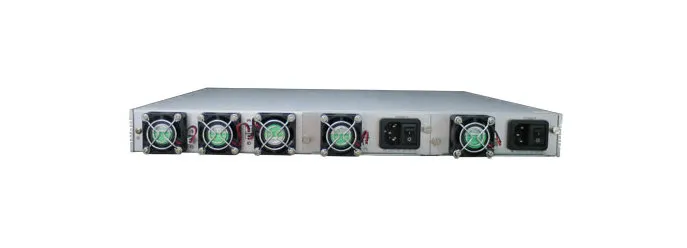

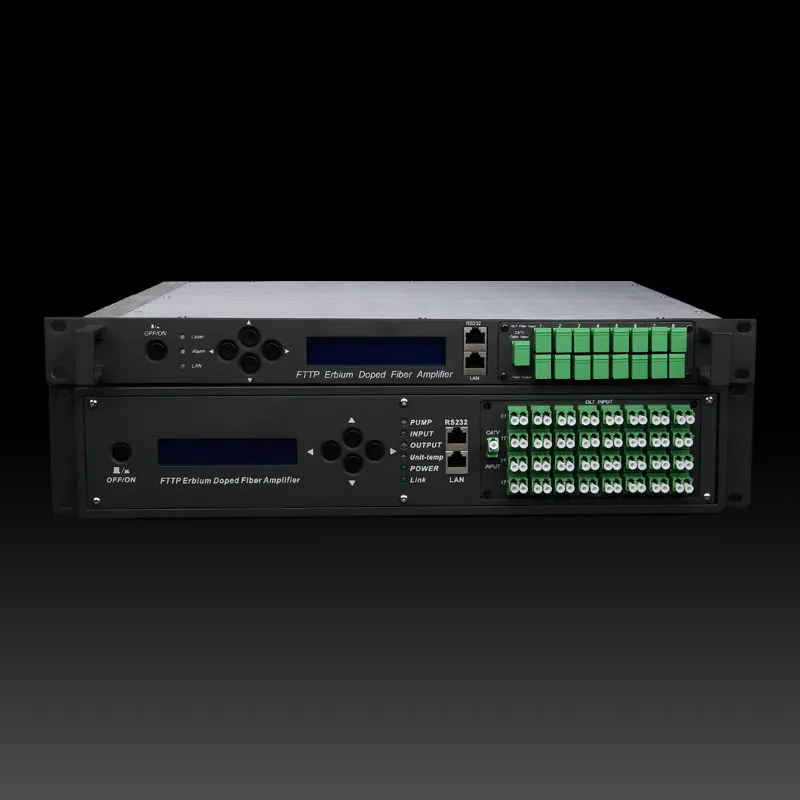

Product description
HA5800A (1RU) series is a low noise, high performance, FTTP high power, multi-ports Built in CWDM optical Amplifier for Gpon CATV with gain spectrum band within 1540~1563nm. Each output port for optical amplifier has built-in well-performed CWDM. Every external up-link optical port of optical amplifier can connect with OLT PON port very conveniently. Each 1550nm (CATV)'s output optical port multiplex 1310/1490n's data stream, in order to reduce the quantity of the component and improve the index and reliability of the system.

HA5800A optical amplifier can be compatible with any FTTx PON Technology. It offers a flexible and low-cost solution for three-network integration and Fiber to the Home.

Product features
1.Each output optical port is with built-in high performance CWDM, single fiber three

wavelengths, which can save optical fiber resources largely.
2.Simplified machine-room links, improve the system reliability, and largely reduce the .

network maintenance cost.
3.Can compatible with any FTTx PON technology: EPON/GEPON, GPON
4.Total output power optional 500~5000mW ( 27~37dBm )
5.19" 1U rack up to optional 16 up-link ports, which used in OLT; And 16 1550nm output

optical ports, multiplex the 1310/1490nm data stream.

Main application
1.FTTx PON
2.RFoG

Technical index

Performance			Index			Suplement
Performance			Min.	Typ.	Max.	Suplement
Optical feature	CATV Operation wavelength	(nm)	1540		1563	CATV
	OLT pass wavelength	(nm)		1310/1490
	CATV pass wavelength loss	(dB)			0.8	1550nm
	OLT pass wavelength loss	(dB)			0.8	1310/1490nm
	CATV & OLT isolation	(dB)	40
	Number of uplink optical ports ( for olt)	(pcs)			16
	CATV input power( Pi )	(dBm)	-10		+10
	Total output power¹⁾	(dBm)			37
	Number of output ports	(pcs)			16
	Each port output power	(dBm)	0		22
	Difference of each output power	(dB)	-0.5		+0.5
	Output optical power monitoring	(dB)		-20		Optional
	Output power dajustable range	(dBm)	-6		0
	Noise figure	(dB)		4.5	5.5	HA5800A-1xXXX
	Noise figure	(dB)		5.0	6.0	HA5800A-2xXXX
	Switch time	(ms)			8.0	HA5800A-2xXXX
	Polarization dependance loss	(dB)			0.3
	Polarization dependance gain	(dB)			0.4
	Polarization mode dispersion	(ps/nm)			0.3
	Input/output isolation	(dB)	30
	Pump power leakage	(dBm)			-30
	Echo loss	(dB)	55			APC
General featre	Serial interface		RS232
	Network management interface		RJ45
	Power supply	(V)	90		265	220VAC
	Power supply	(V)	30		72	-48VDC
	Power consume	(W)			50
	Operation temp.	( ºC )	-5		65
	Storage temp.	( ºC )	-40		80
	Operation relative humidity	(%)	5		95
	Size (W) × (D) × (H)	( " )	19 × 14.5 × 1.75 ( " )			HA5800A ( 1RU )
