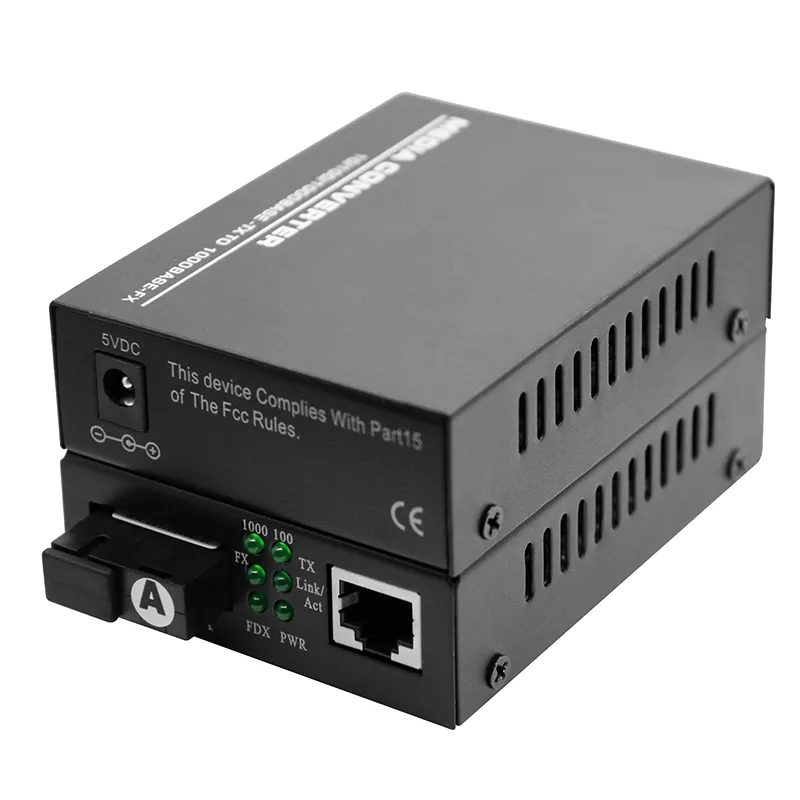

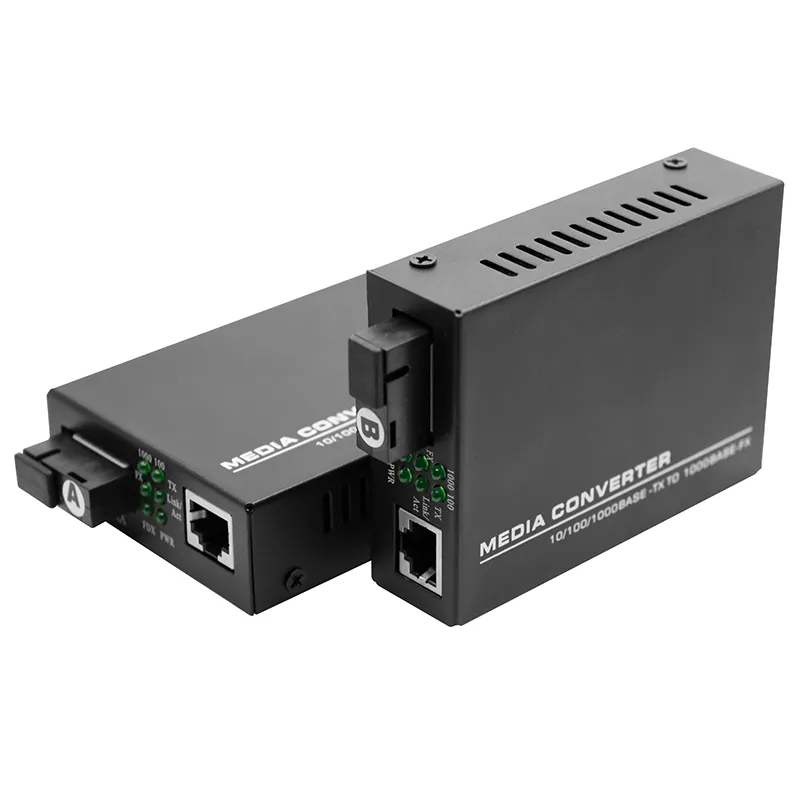

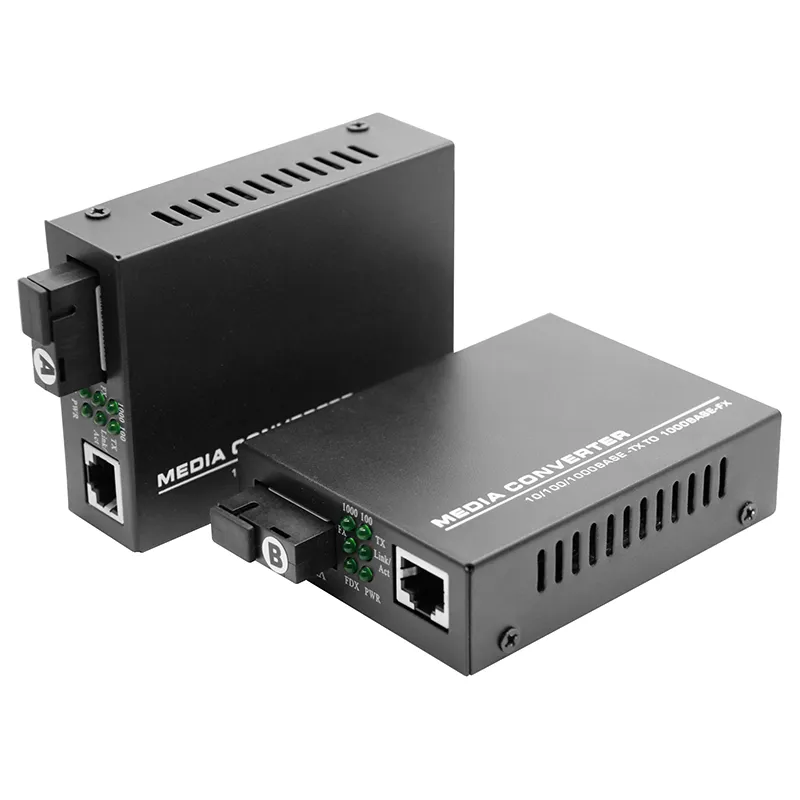

Bidi Wdm Single Fiber 10/100/1000m 1310/ 1550 20km Llf LFP SFP Fiber Optic Media Converter OEM Factory
BIDI WDM single fiber 10/100/1000M 1310/1550 20km LLF LFP sfp fiber optic media converter oem factory DescriptionMedia converters can be used anywhere in the network to integrate newer technology with existing equipment to support new applications, technologies and future growth. Instead of costly, ......
Send Inquiry
Product Description
Description
Media converters can be used anywhere in the network to integrate newer technology with existing equipment to support new applications, technologies and future growth. Instead of costly, across-the-board upgrades, media converters can extend the productive life of the existing cabling as well as the active equipment.
Features:
1,Auto negotiation function allows UTP ports to auto select 10/100/1000M and Full Duplex or Half Duplex.
2. The UTP port supports the connection of MDI/MDI-X auto crossover.
3. Singlemode Fiber: the max distance up to 60km
4. Supporting the max 1536 byte Ethernet packet
5. Supporting flow control
6. Adopting internal power supply
Specification
| Product Name | Fiber Optic Converter |
| Fiber Type | Singlemode |
| Wavelength | 1310nm |
| Connetor Type | SC |
| Transmission speed | 10/100/1000M |
| Transmission distance | 25KM |
| Power | DC 5V 1A |
| Operting termperature | -40~85°C |
Connector type | SC | SC | SC | SC | SC |
Fiber type | Multi-mode | Single-mode | Single-mode | Single-mode | Single-mode |
Wavelength | 850nm | 1310nm | 1310nm | 1550nm | 1550nm |
Max Distance | 62.5µm: 224m | 20Km | |||
50µm: 550m | |||||
Min TX PWR | -11.0dBm | -9.0dBm | -4.0dBm | -8.0dBm | -3.0dBm |
Max TX PWR | -6.0dBm | -5.0dBm | 0dBm | 0dBm | 0dBm |
Sensitivity | < -18dBm | < -21dBm | < -24dBm | < -25dBm | < -25dBm |
Link Budget | 7.0dBm | 12.0dBm | 20.0dBm | 17.0dBm | 22.0dBm |
10/100/1000M single fiber
Connector type | SC | SC | SC | SC |
Fiber type | Single-mode | Single-mode | Single-mode | Single-mode |
Wavelength | 1310/1550nm | 1310/1550nm | 1310/1550nm | 1490/1550nm |
Max Distance | 20Km | 40Km | 60Km | 80Km |
Min TX PWR | -10.0dBm | -4.0/-8dBm | 0/-5.0dBm | -1dBm |
Max TX PWR | -4.0dBm | 0dBm | 3/0dBm | 3dBm |
Sensitivity | < -22dBm | < -25dBm | < -25dBm | < -25dBm |
Link Budget | 12.0dBm | 20/17dBm | 25/20dBm | 24.0dBm |
