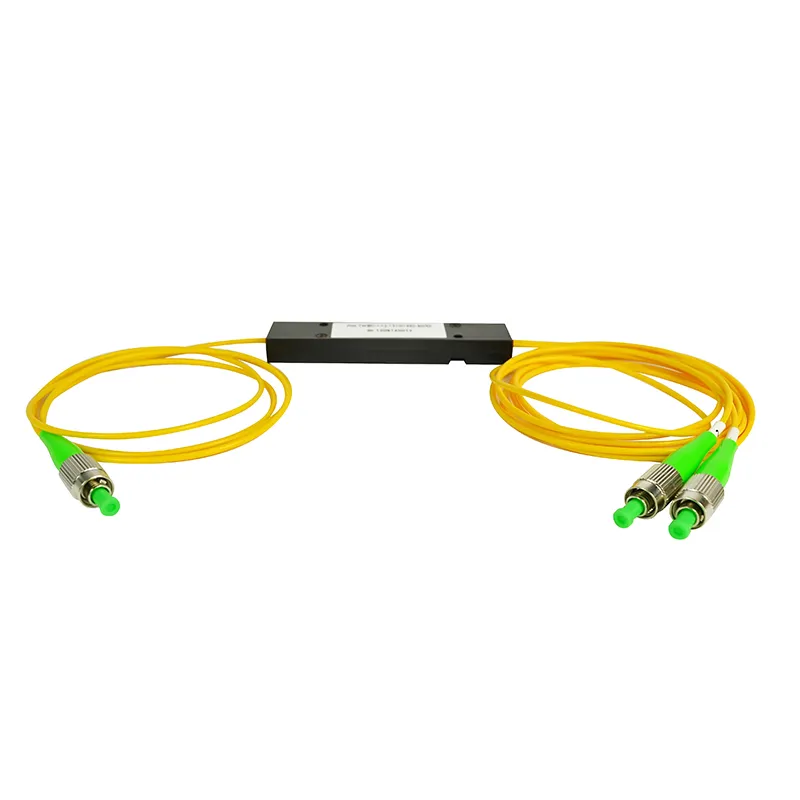

ABS Box Fiber Optic PLC Splitter Singlemode Sc/APC Pigtail 1310/ 1550 /1490 Nm Fbt Coupler
ABS Box Fiber Optic PLC Splitter Singlemode SC/APC Pigtail 1310/1550/1490 Nm Fbt CouplerFiber Optic FBT splitter is a type of optical power management device that is fabricated using Fused.It features small size, high reliability, cheap cost and good channel-to-channel uniformity, and is widely used......
Send Inquiry
Product Description

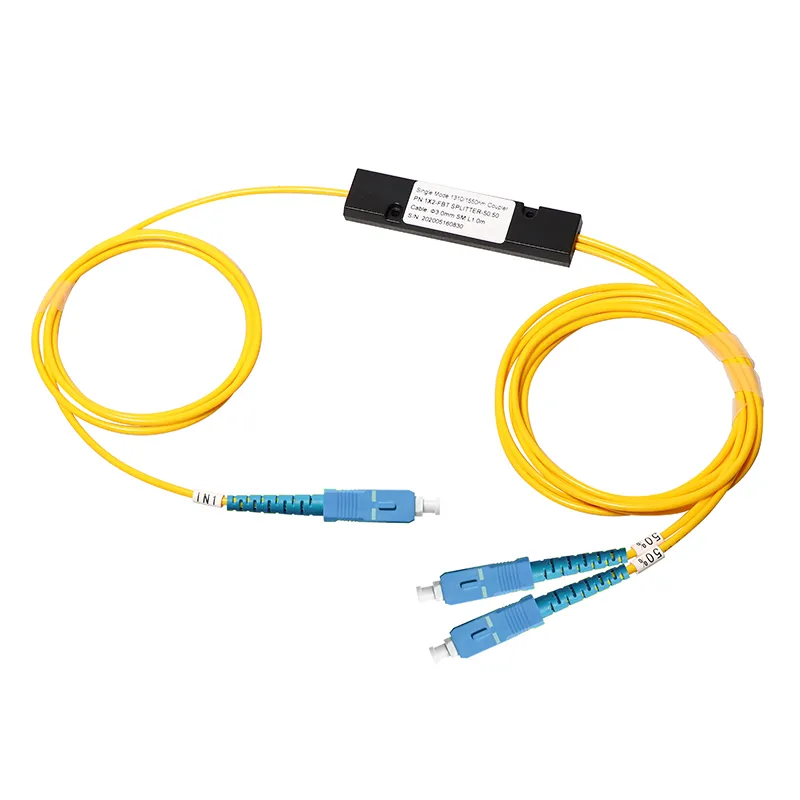

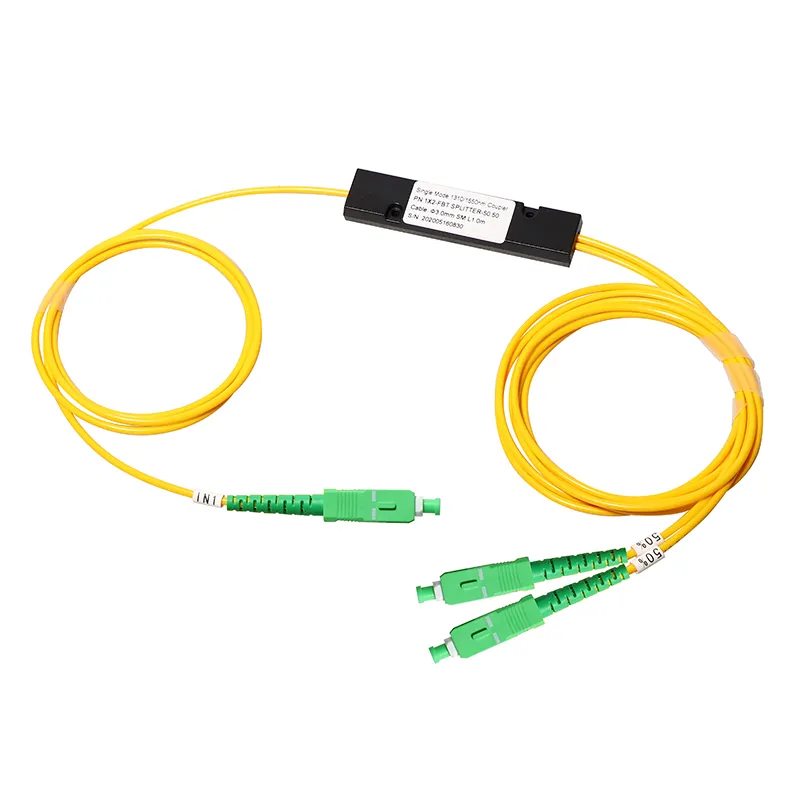

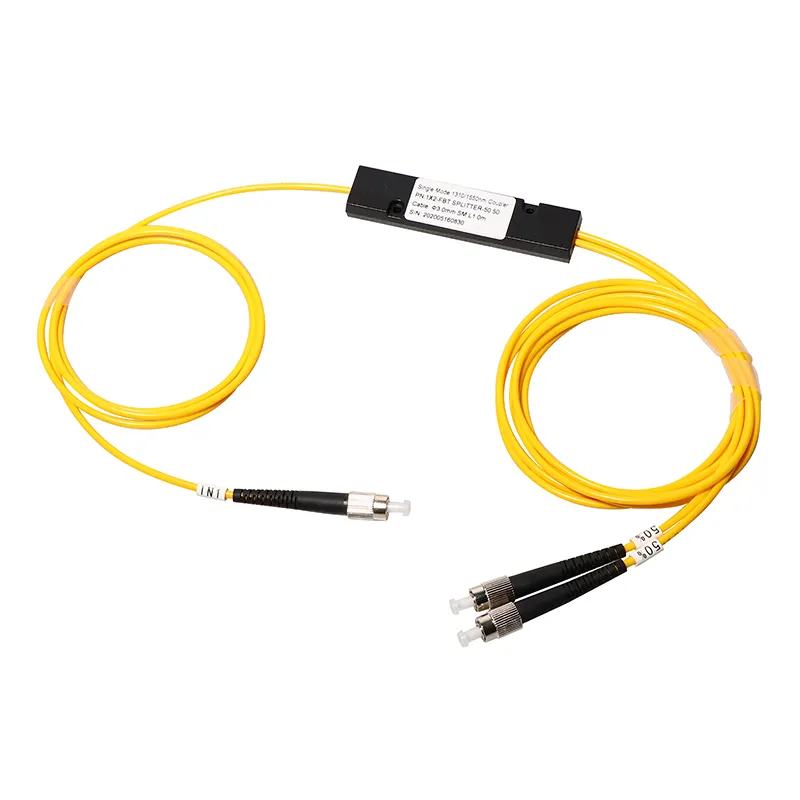

ABS Box Fiber Optic PLC Splitter Singlemode SC/APC Pigtail 1310/1550/1490 Nm Fbt Coupler
Fiber Optic FBT splitter is a type of optical power management device that is fabricated using Fused.
It features small size, high reliability, cheap cost and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
DYS fiber provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE.
Application
1)Long-haul Telecommunications
2)CATV Systems & Fiber Optic Sensors
3)Local Area Network
Feature
Materials in line with the IEC standard connector
Distribution frame in the ODF to achieve sub-line
Low PDL
Compact Design
Low Insertion loss
Good channel-to-channel uniformity
Good direction,Good interchangeability
Fiber Optic FBT splitter is a type of optical power management device that is fabricated using Fused.
It features small size, high reliability, cheap cost and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
DYS fiber provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE.
Application
1)Long-haul Telecommunications
2)CATV Systems & Fiber Optic Sensors
3)Local Area Network
Feature
Materials in line with the IEC standard connector
Distribution frame in the ODF to achieve sub-line
Low PDL
Compact Design
Low Insertion loss
Good channel-to-channel uniformity
Good direction,Good interchangeability
| Parameter | Specfication | |
| Channel Number | 1×2 or 2×2 | |
| Operration Wavelength(nm) | 1310,1550,1310/1550,1310/1550/1490 | |
| Operration Bandwidth(nm) | ±40 | |
| Coupling Ratio | Coupling Ratio Insertion Loss(dB) | |
| P Grade | A Grade | |
| 50/50 | ≤3.3 | ≤3.5 |
| 40/60 | ≤4.5/2.6 | ≤4.7/2.8 |
| 30/70 | ≤5.7/1.9 | ≤5.9/2.1 |
| 20/80 | ≤7.6/1.3 | ≤7.75/1.38 |
| 10/90 | ≤10.85/0.68 | ≤11.2/0.75 |
| 5/95 | ≤14.4/0.45 | ≤15.5/0.48 |
| 2/98 | ≤18.5/0.6 | ≤19.8/0.38 |
| 1/99 | ≤21.8/0.28 | ≤22.8/0.35 |
| PDL(dB) | ≤0.15 | ≤0.2 |
| Directivity(dB) | ≥50 | |
| Return Loss(dB) | ≥55 | |
