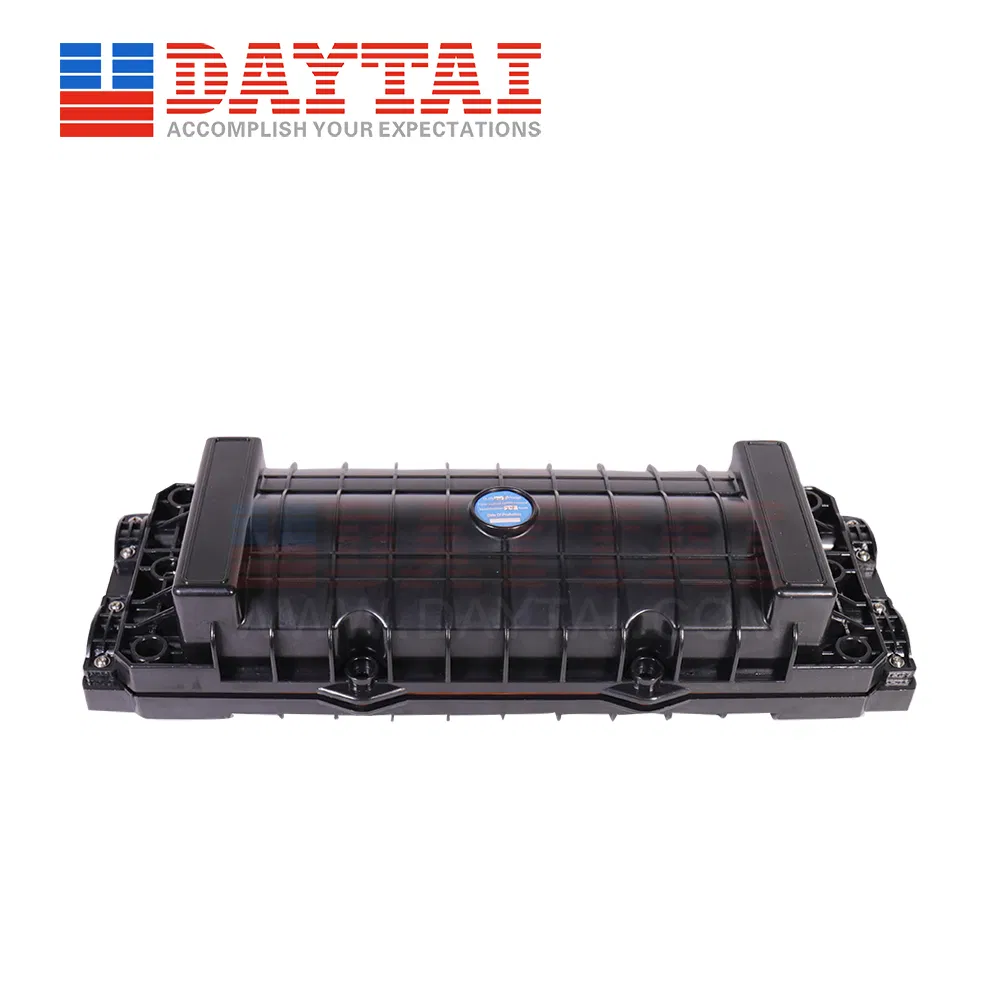

413× 160× 88mm Horizontal Type 96 Core Fiber Optic Splice Enclosure
Description Horizontal Closure,DT-FOSC-H8018,Protection Grade:IP68,Number of ports:4 Pieces:2 inlet+2 outlet ,Diameter of fiber optic cable:Φ8-Φ16MM,Max.Capacity:Bunchy:96Cores.12 Core or 24 Core Splice Tray is Optional,(xCore=x*12Core Splice Tray,xCore=x*24Core Splice Tray),Outside......
Send Inquiry
Product Description

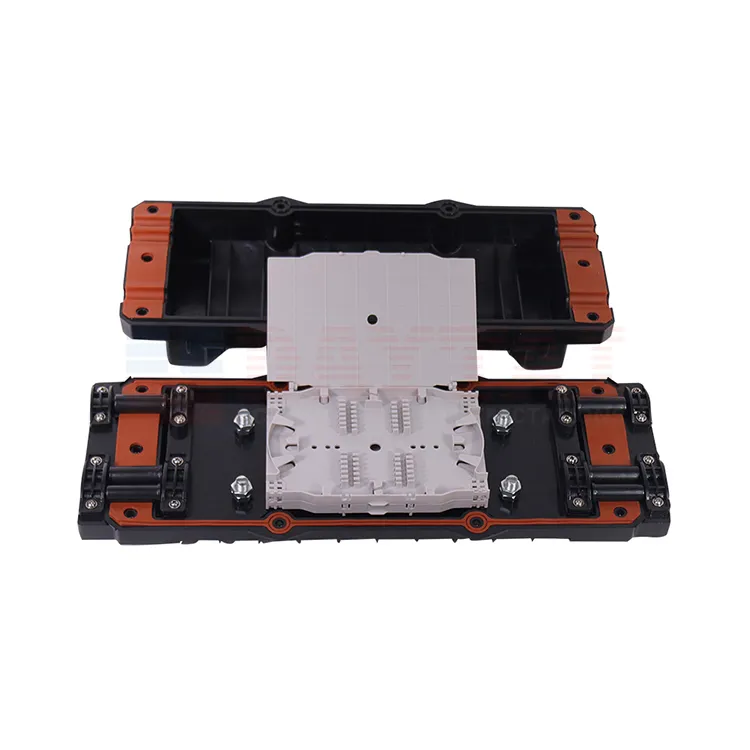

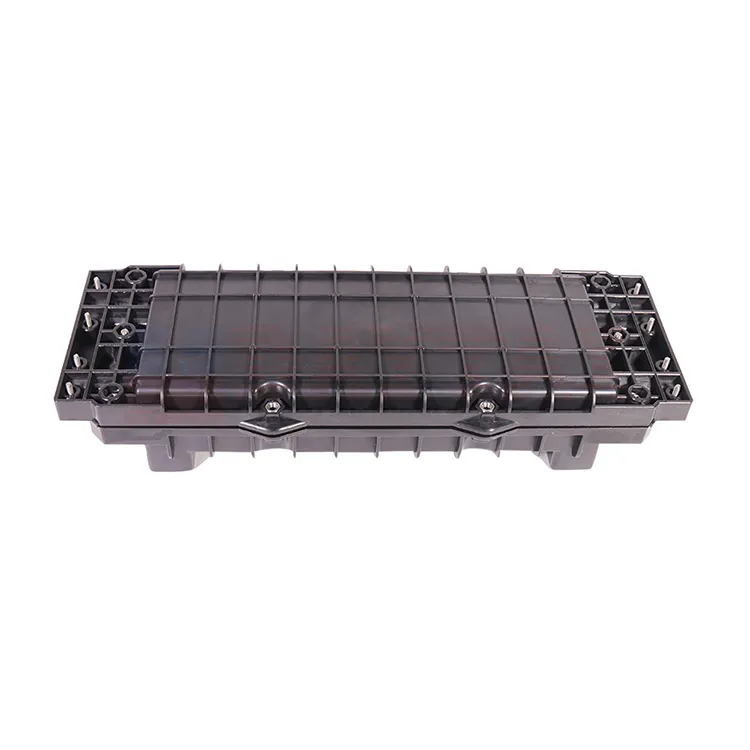

★Description Horizontal Closure,DT-FOSC-H8018,Protection Grade:IP68,Number of ports:4 Pieces:2 inlet+2 outlet ,Diameter of fiber optic cable:Φ8-Φ16MM,Max.Capacity:Bunchy:96Cores.12 Core or 24 Core Splice Tray is Optional,(xCore=x*12Core Splice Tray,xCore=x*24Core Splice Tray),Outside Dimension(LxWxH): 413×160×88MM.Weight:2.75-3.20Kg.
★Scope of application
⊙This Installation Manual is suit for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.
⊙The scope of application is:aerial,underground,wall-mounting,duct-mounting, handhole-mounting. The ambient temperature ranges from -20ºC to +65ºC.
★Dimension and capacity
| Ietm | |
| Outside dimension (LxWxH) | 413×160×88 (mm) |
| Weight (excluding outside box) | 2750g-3200g |
| Number of inlet/outlet ports | 4 Pieces:2 inlet+2 outlet |
| Diameter of fiber cable | Φ8-Φ16 (mm) |
| Capacity of FOSC | Bunchy: 12-96(Cores) Ribbon: max. 144(Cores) |
| ambient temperature ranges | -20ºC to +65ºC |

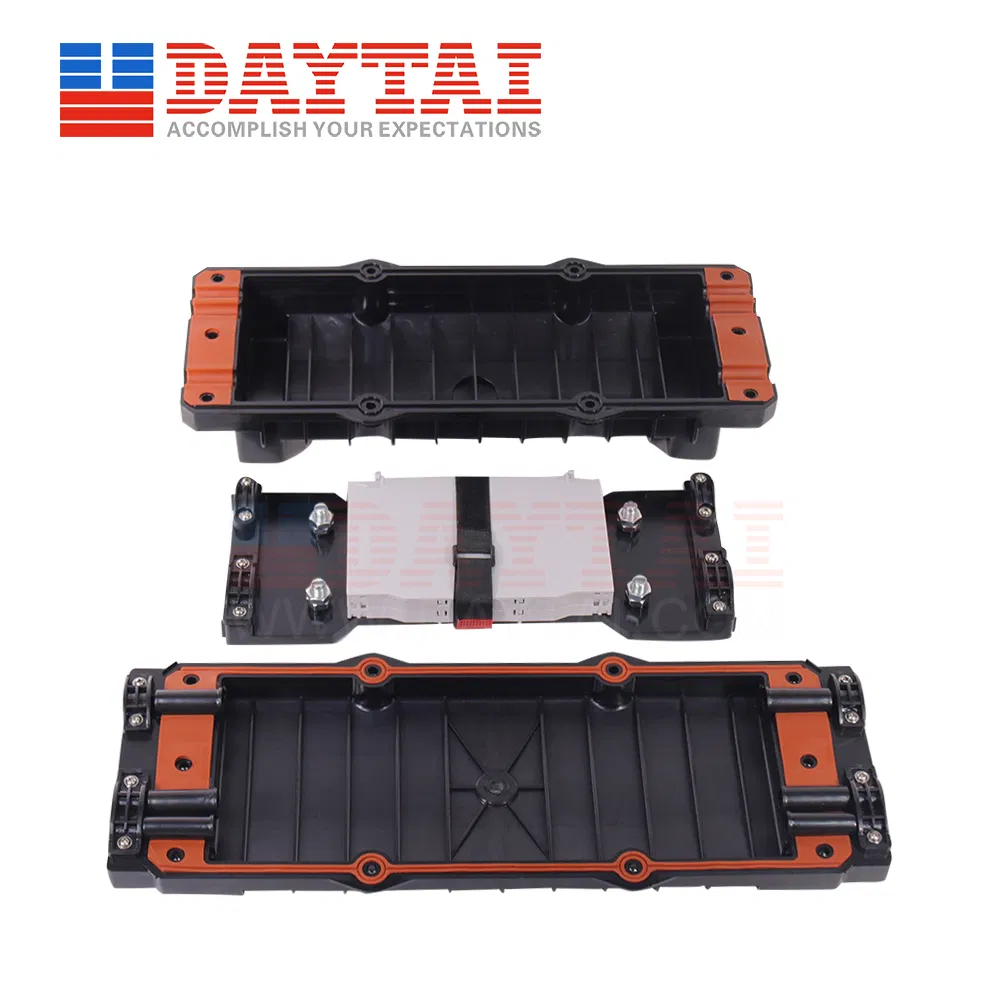

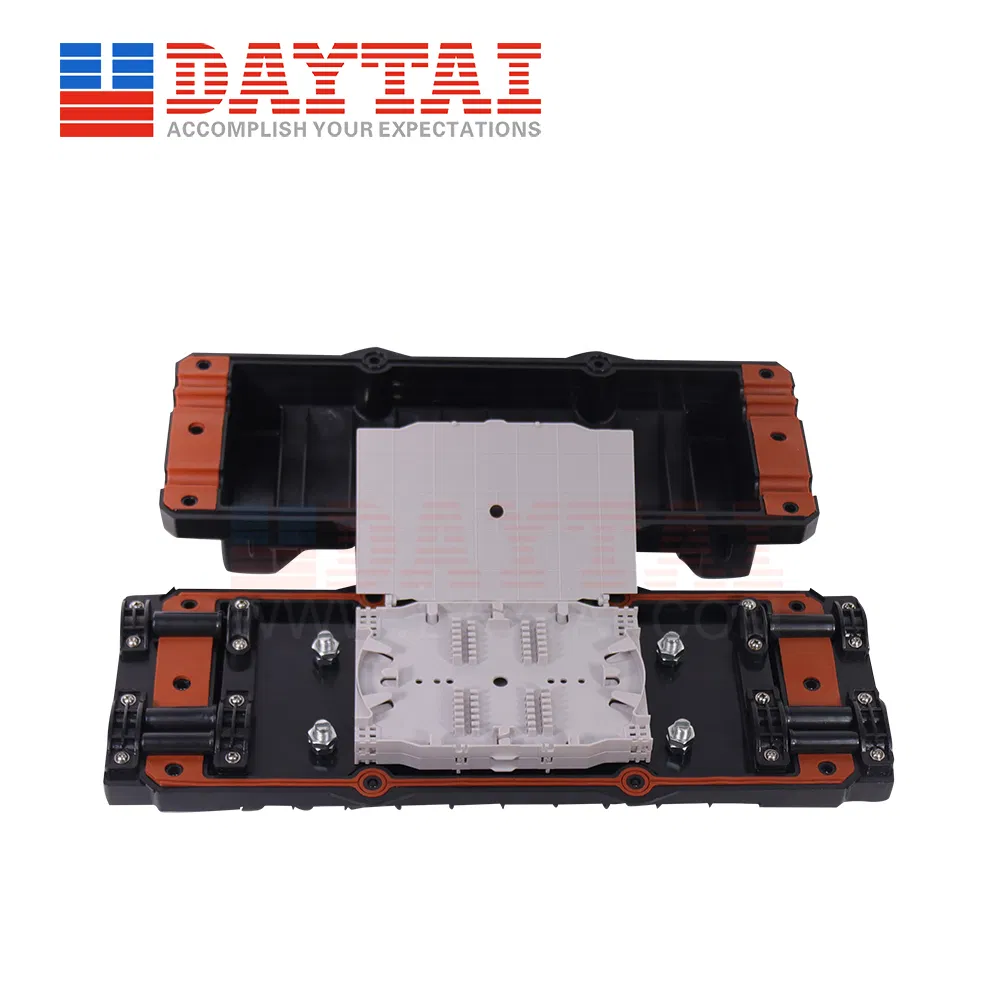

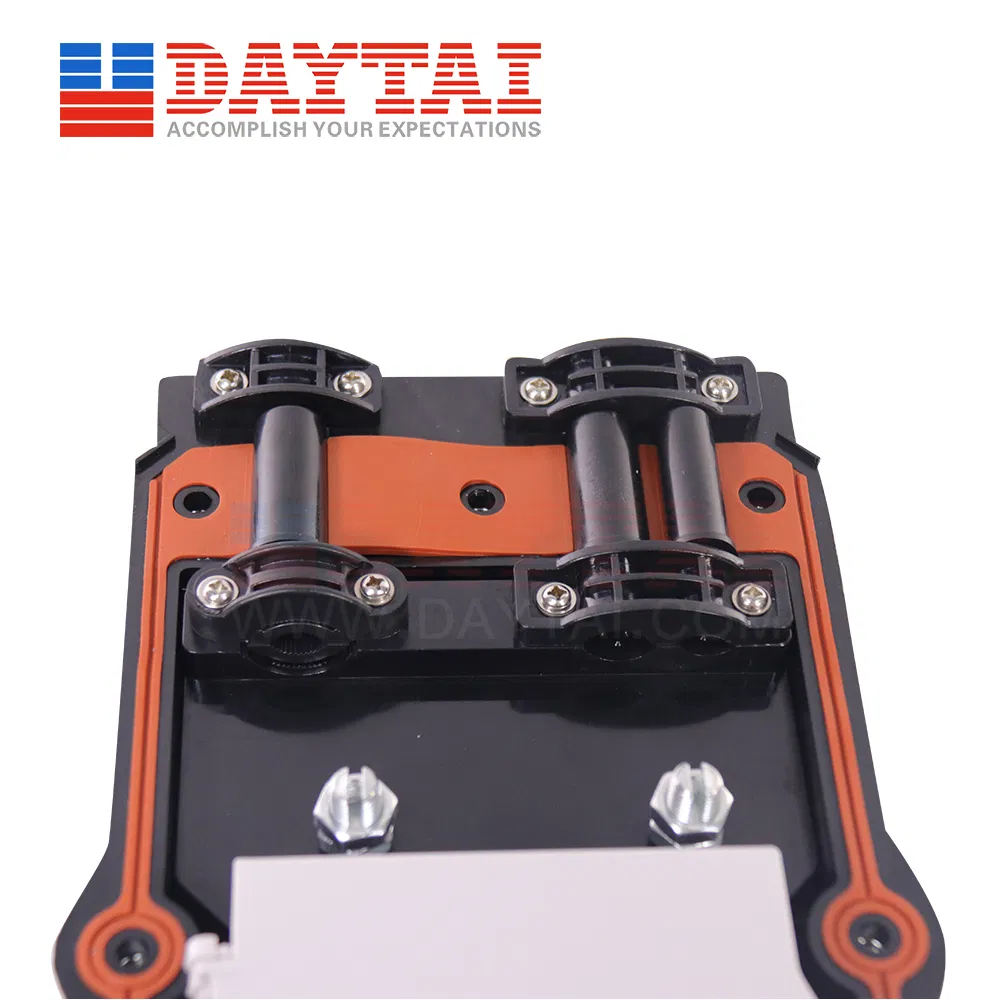

★Main components

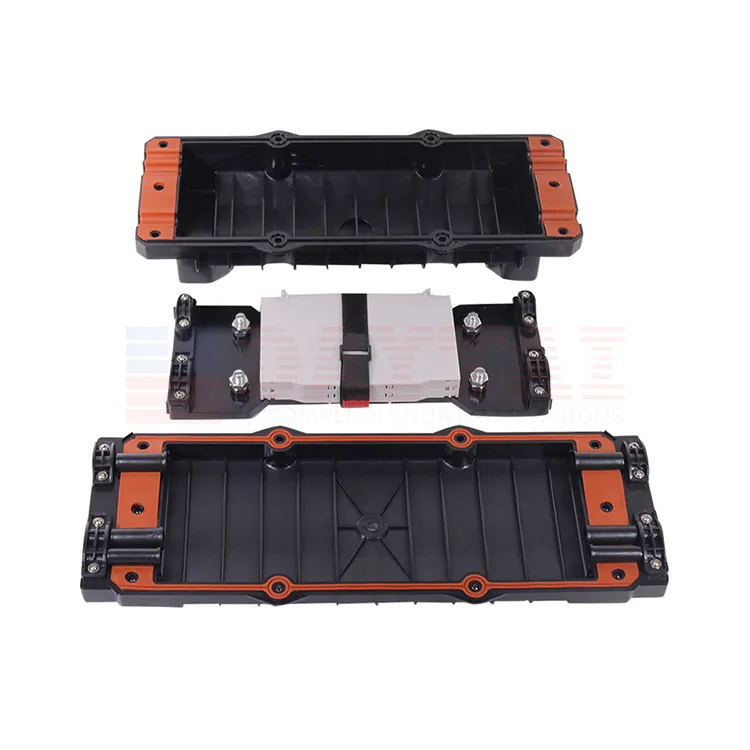

| No. | Name of components | Quantity | Usage | Remarks | |
| 1 | Housing | 1 set | Protecting fiber cable splices in whole | Internal diameter: 270×100×60 (mm) | |
| 2 | Fiber optic splice tray (FOST) | max. 2 pcs (bunchy) max.2 pcs (ribbon) | Fixing heat shrinkable protective sleeve and holding fibers | Suitable for: Bunchy:12,24(cores) Ribbon:3 (pieces) | |
| 3 | Foundation | 1 set | Fixing reinforced core of fiber- cable and FOST | ||
| 4 | Seal fitting | 1 set | Sealing between FOSC cover and FOSC bottom | ||
| 5 | Port plug | 4 pieces | Sealing empty ports | ||
| 6 | Earthing deriving device | 1 set | Deriving metallic components of fiber cable in FOSC for earthing connection | Configuration as per requirement | |

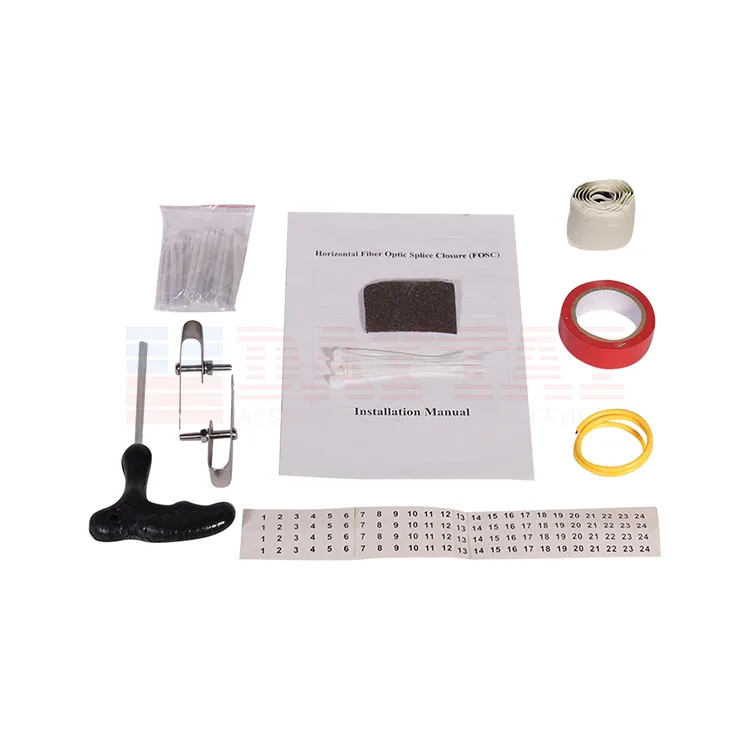

★ Main accessories and special tools
| No. | Name of accessories | Quantity | Usage | Remarks |
| 1 | Heat shrinkable protective sleeve | Protecting fiber splices | Configuration as per capacity | |
| 2 | Nylon tie | Fixing fiber with protective coat | Configuration as per capacity | |
| 3 | Insulation tape | 1 roll | Enlarging diameter of fiber cable for easy fixing | |
| 4 | Seal tape | 1 roll | Enlarging diameter of fiber cable which fits in with seal fitting | Configuration as per specification |
| 5 | Hanging hook | 1 set | For aerial use | |
| 6 | Earthing wire | 1 piece | Putting through between earthing devices | |
| 7 | Abrasive cloth | 1 piece | Scratching fiber cable | |
| 8 | Labeling paper | 1 piece | Labeling fiber | |
| 9 | M6 Special wrench | 1 pieces | Fixing small bolts of housing | |
| 10 | M10 Special wrench | 1 piece | Tightening nut of reinforced core |
