4 Port Fiber Optic Termination Desk Box with Sc/LC
4 Port Fiber Optic Termination desk Box with SC/LCDescription:This box is used as a termination point for the feeder cable to connect with drop cable in FTTx communicationnetwork system.It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it pr......
Send Inquiry
Product Description

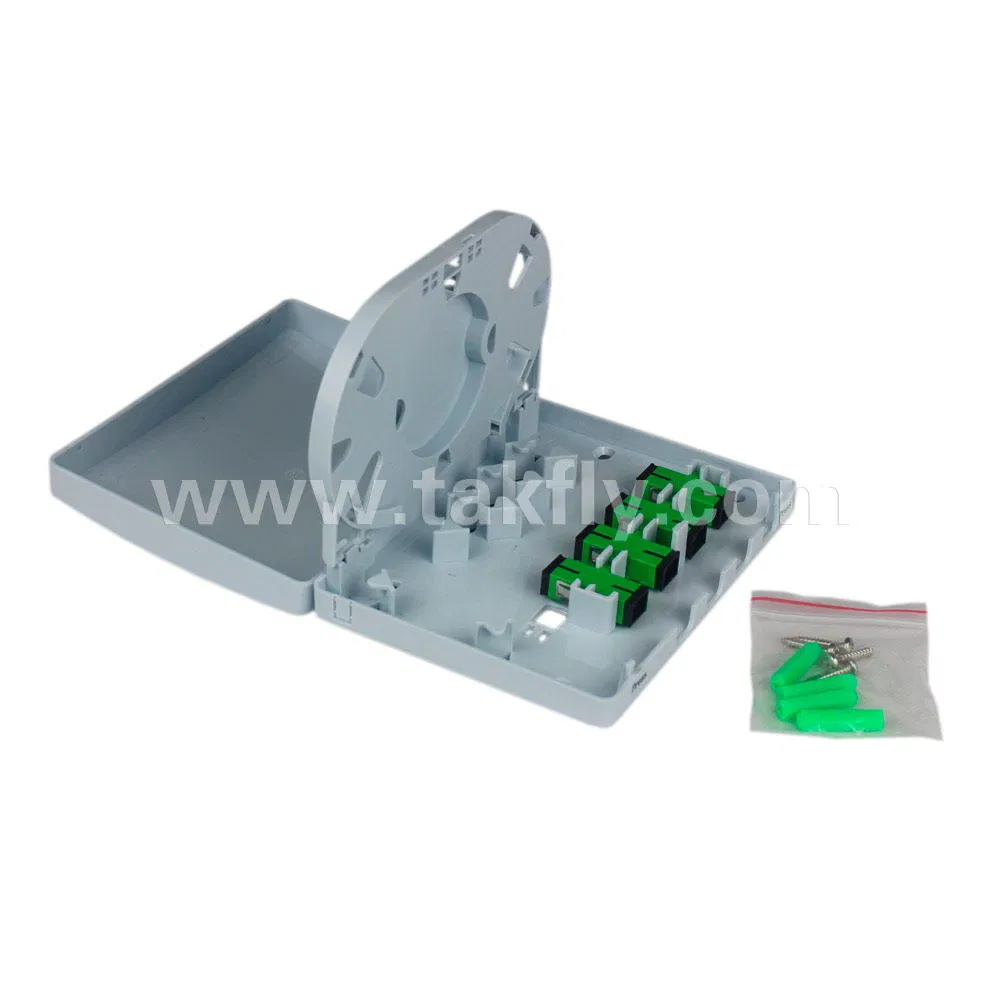

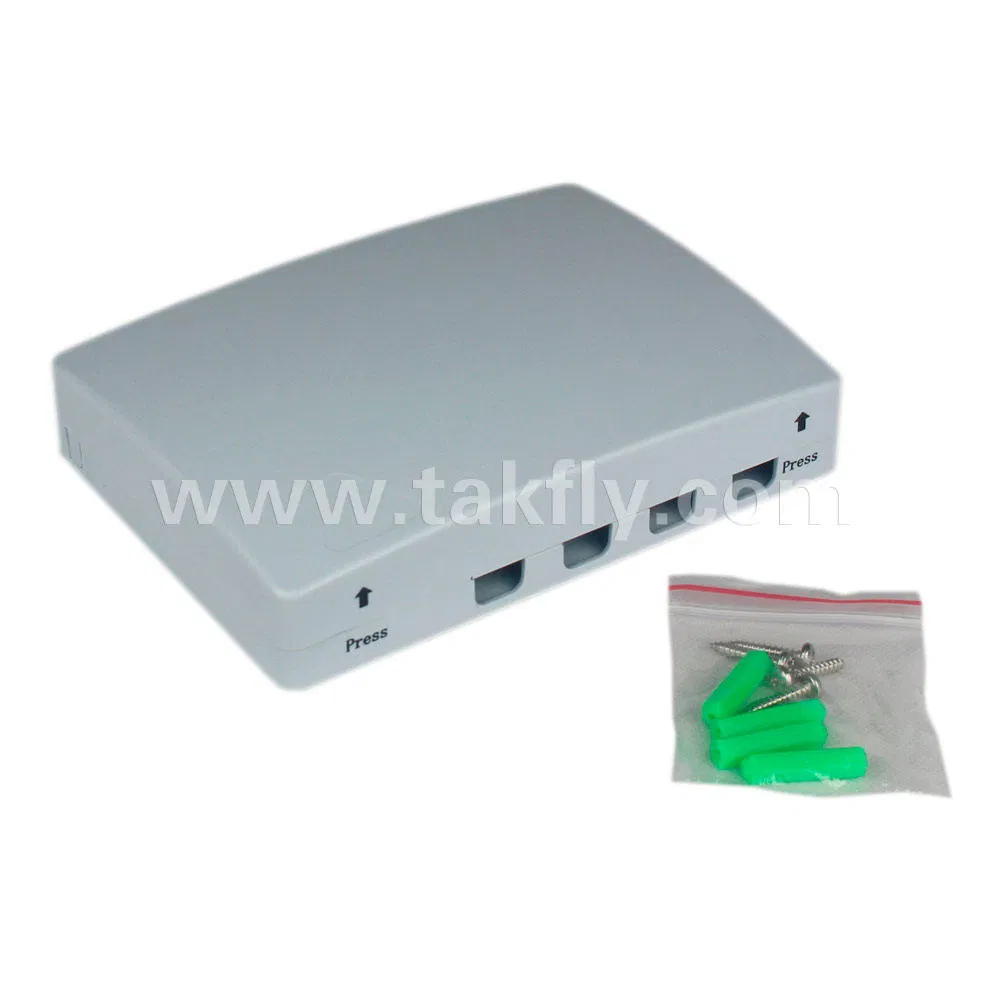

4 Port Fiber Optic Termination desk Box with SC/LC
Description:
This box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication
network system.
It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides
solid protection and management for the FTTx network building.
Features:
Total enclosed structure, be in nice shape
Protects and manages cable effectively
Secured with anti-theft lockingmechanism
Standard size, light weight
High quality PC +ABS material
Good properties of dust, and moisture proofing,IP65
Suitable for both outdoor and indoor use
Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one
Suitable for SC and LC duplex adaptor and pigtail
Easy to operate
Application:
Telecommunication subscriber loop
Fiber to the home(FTTH)
LAN/WAN
Performance index
Package and shipping:
About package: Carton case and common exporting packages
About Shipping: A. Shipping time is depends on quantity and factory schedule
B. About Shipping ways:By air,sea and courier(DHL,Fedex,Ups,TnT or EMS)
About Payment:Usually paypal for sample,T/T,Western Union is available
Description:
This box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication
network system.
It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides
solid protection and management for the FTTx network building.
Features:
Total enclosed structure, be in nice shape
Protects and manages cable effectively
Secured with anti-theft lockingmechanism
Standard size, light weight
High quality PC +ABS material
Good properties of dust, and moisture proofing,IP65
Suitable for both outdoor and indoor use
Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one
Suitable for SC and LC duplex adaptor and pigtail
Easy to operate
Application:
Telecommunication subscriber loop
Fiber to the home(FTTH)
LAN/WAN
Performance index
| Work Temperature | -40 .C ~+85 .C |
| Relative Humidity | ≤ 85% (+30 .C) |
| Atmospheric Pressure | 70Kpa~106Kpa |
| Insert Loss | ≤ 0.2dB |
| UPC Return Loss | ≥ 50dB |
| APC Return Loss | ≥ 60dB |
| Insert and Pull out Life | ≥ 1000 times |
| Adaptor | SC & LC |
| Insulation Withstand Voltage | The grounding device is insulated with the Termination box, IR ≥1000m /500V (direct current) Between the grounding device and the box body, the withstand voltage is over 3000V/Min, no breakdown and flashover. U ≥3000V (direct |
Package and shipping:
About package: Carton case and common exporting packages
About Shipping: A. Shipping time is depends on quantity and factory schedule
B. About Shipping ways:By air,sea and courier(DHL,Fedex,Ups,TnT or EMS)
About Payment:Usually paypal for sample,T/T,Western Union is available
