32 Port Pon CATV Wdm Erbium Doped Fiber Amplifier with Big Touch Screen of Xgs-Pon Ng-Pon2
32 port PON & CATV WDM EDFA Combiner FWAP-1550H-32XN PON & CATV EDFA Combiner, 32ways of 1550 /1490 /1310/1270/1577/1535/1600nm out Products description FWAP-1550H-32xNdBm series E......
Send Inquiry
Product Description

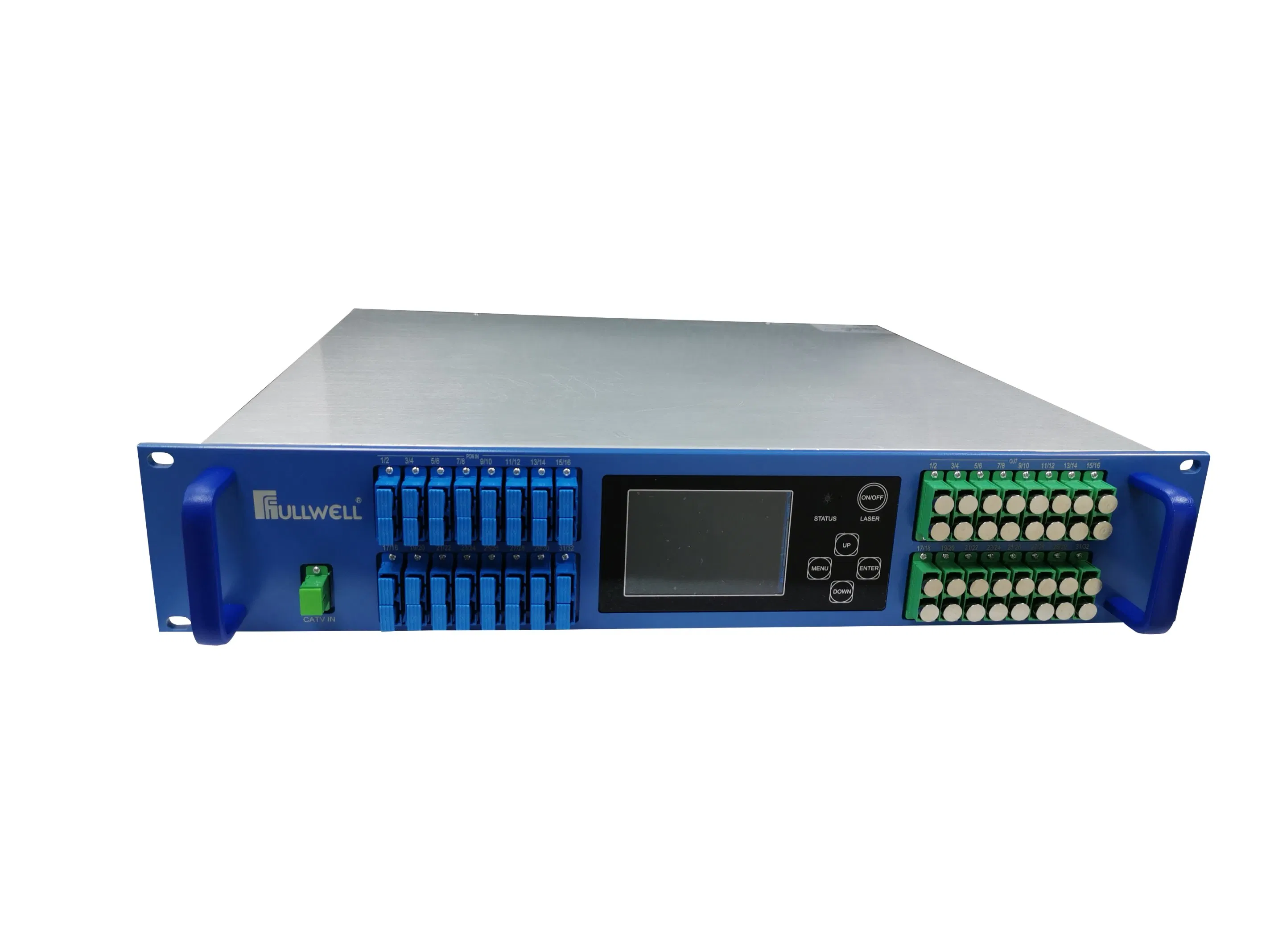

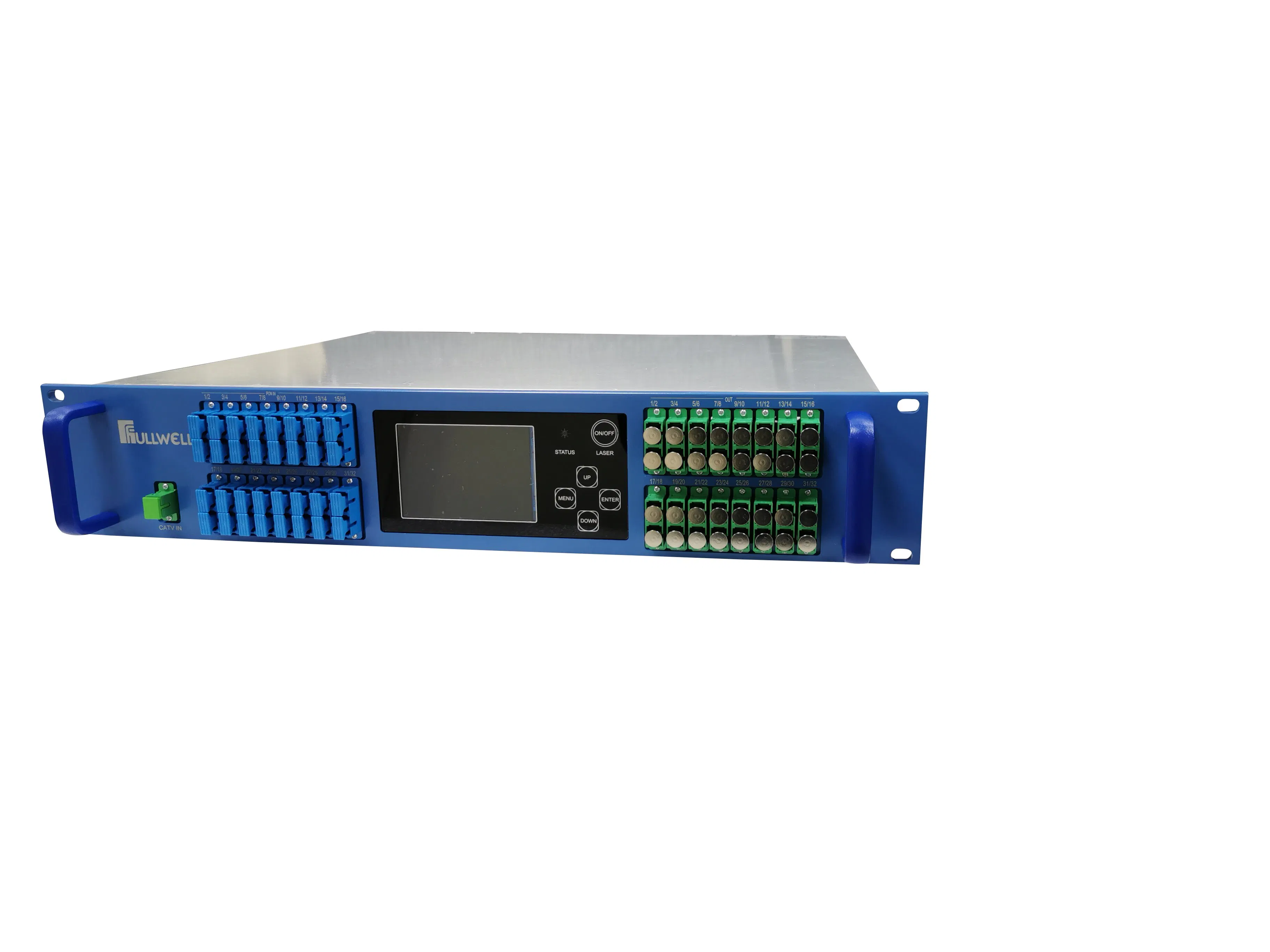

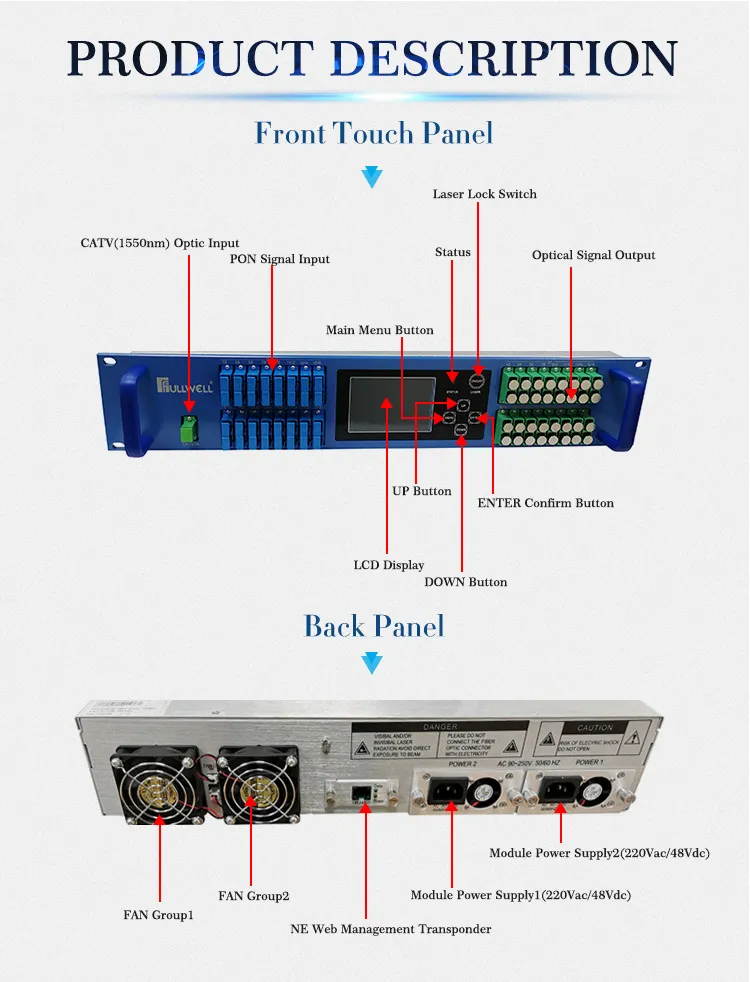

32 port PON & CATV WDM EDFA Combiner
optical transmitter system equipment realized combine the function of the amplification of optical signal OLT
and CATV 1550nm. The optical input number: 1 port of CATV + 32ports PON input ports, 32 ports outputs
of 1550nm/1490nm/1310nm combine output, the combined optical output power rate: 26~38dBm. plug-in
power supply, achieved the function of OLT and CATV 1550nm optical single combined and amplify,
having high-cost performance value.
EDFA's wavelength is 1550nm, it is in line with the low-loss band of fiber and its technology has been
relatively mature, so widely used. Erbium-doped fiber is the core components of the EDFA, it makes
quartz optical fiber as matrix material, and incorporate a certain proportion of rare earth element erbium
ions (Er3 +) in the core of a fiber. When a certain amount of pump light is injected into the erbium-doped
fiber, Er3 + have been excited from the low-energy level to the high energy level, due to Er3 + has a very
short lifespan on the high energy level, and soon transit to a higher level by the form of a non-radiative,
and form the population inversion distribution between this energy level and low-energy-level. Because
the energy between these two energy levels is exactly equal to the photon energy of 1550nm, stimulated
emission of 1550nm light can only occur, we can only enlarge 1550nm optical signal.
the DFB, thermoelectric cooling DFB laser produced by JDSU, Fujitsu, Nortel, Lucent, Fitel and other
world-renowned semiconductor companies as the pumping source. In the interior of the machine is
equipped with the light power export stable circuit and laser Thermoelectric cooling device Temperature
stability control circuit to ensure optimal machine performance and long-life laser stability.
The microprocessor software monitors the lasers' working state, the Digital Panel (VFD) displays the
operating parameters. Once the laser operating parameters deviate from the permissible range set by
the software, micro-processing will automatically turn off laser power, the red light goes on to warn, digital
panel prompts cause of troubles., a detailed report of the device parameters please read "instructions."

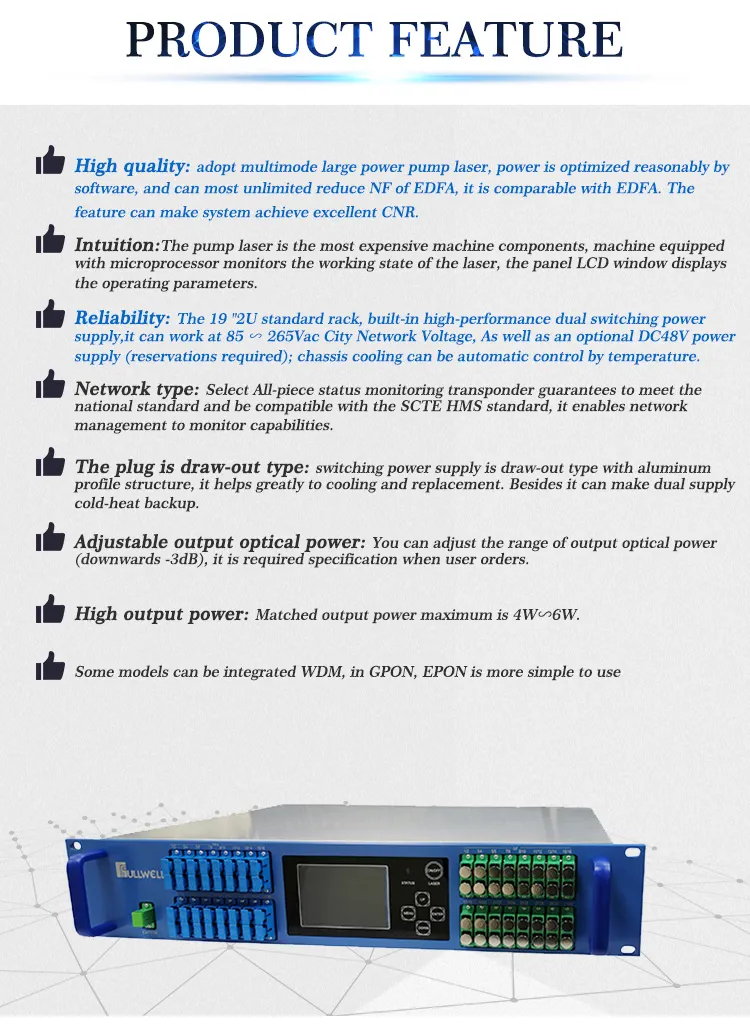

Features
-32 uplink optical ports used in OLT, 32 ports of PON and 1550nm CATV EDFA Combiner out, Each
output port for optical amplifier has built-in well-performed CWDM, and 1550nm CATV's output optical
port multiplexes 1310/14901270/1577/1535/1600 n's data stream and not lose.

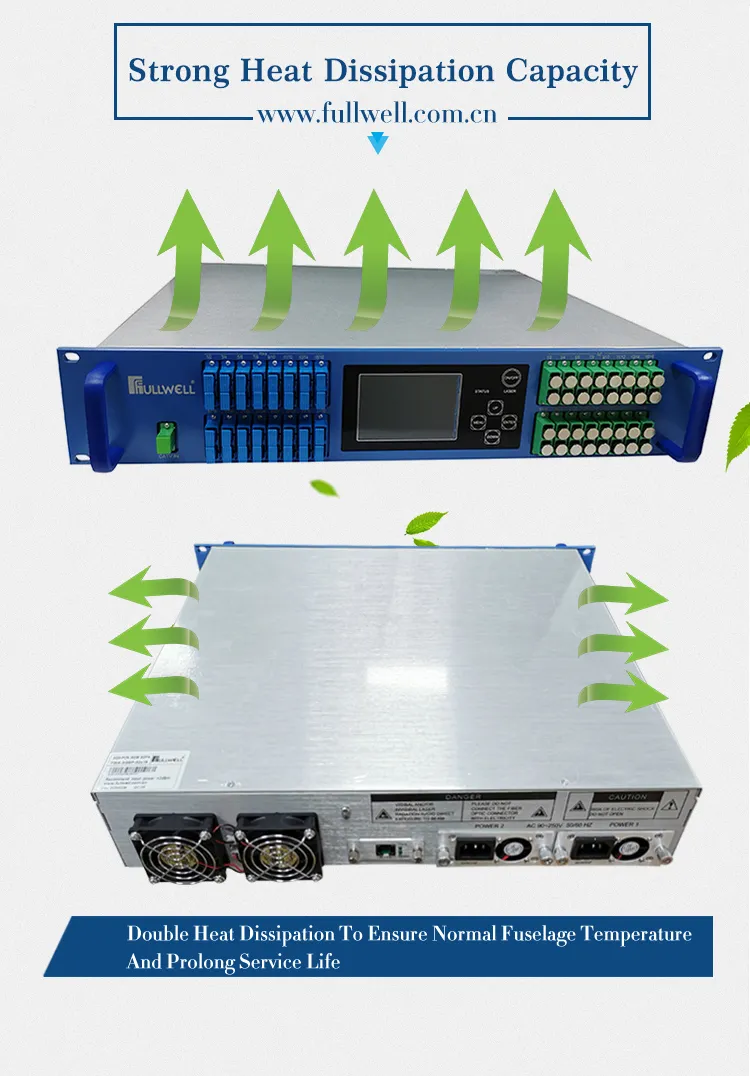

-Double cooling system to protect the pump laser.

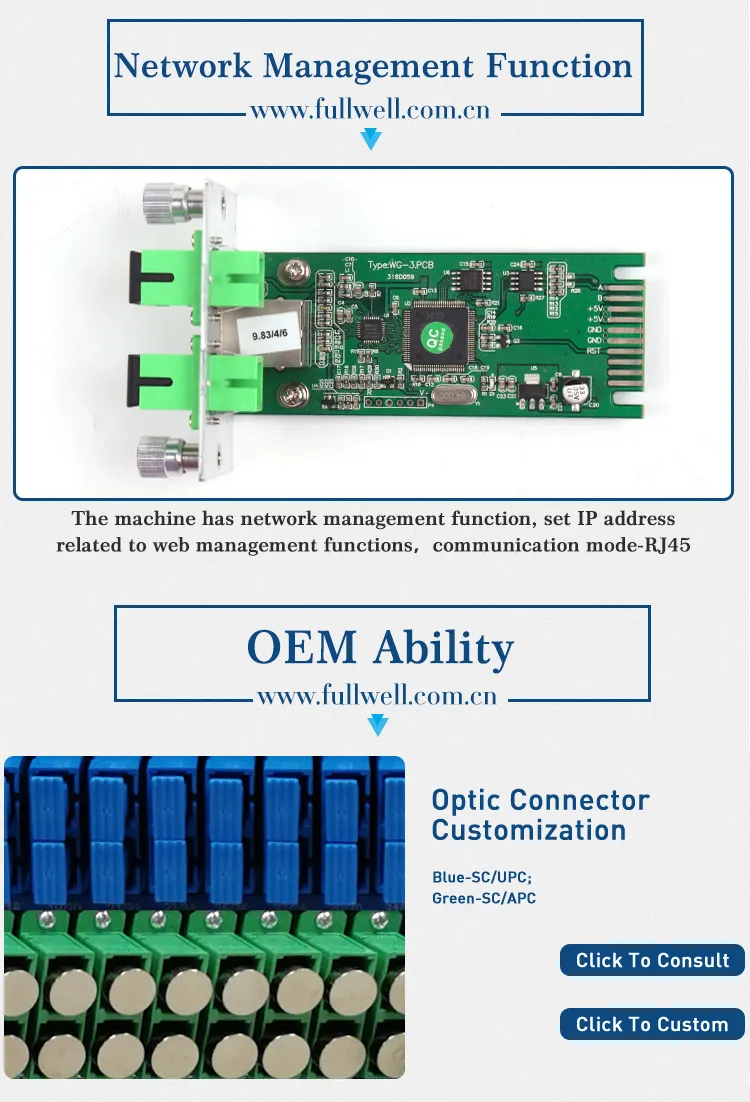

-RJ45 Port for Plug-in SNMP system can realize remote management at any time.
-Adopting JDSU, Bookham and Fitel laser.
-LCD displays the parameters, functions and trouble alarm.

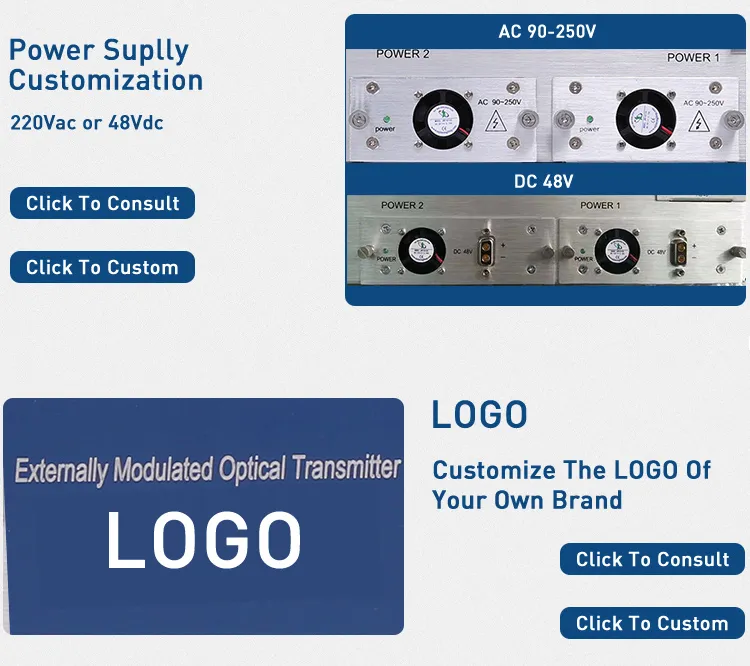

-Switch power supply can work in the range of 90V~265V AC or -48V DC .
-FWAP-1550H-32xNdBm ,1U or 2U,32ports of PON+1 port CATV input EDFA,32 ports of coupled out
,EDFA:26~38dBm.
Set and operation
Items | Parameter | Supplement | |
CATV Operation wavelength | nm | 1530~1565 | CATV |
OLT pass wavelength | nm | 1310/1490/1270/1577/1535/1600 |
|
CATV pass wavelength loss | dB | 0.8 | 1550nm |
OLT pass wavelength loss | dB | 0.8 | 1310/1490nm |
CATV & OLT isolation | dB | 40 |
|
Number of uplink optical ports (for OLT) | pcs | 4/8 | FWAP-1550T,1U |
16/32 | FWAP-1550H, 1U or 2U | ||
CATV input power | dBm | -5~+10 |
|
Total output power | dBm | 13~26 | FWAP-1550T,1U |
27~38 | FWAP-1550H,1U or 2U | ||
Number of output ports | pcs | 4/ 8 | FWAP-1550T,1U |
16/32 | FWAP-1550H,1U or 2U | ||
Each port output power | dBm | 6~22 |
|
Difference of each output power | dB | -0.5~+0.5 |
|
Output power adjustable range | dBm | -3~0 |
|
Noise figure (Pin=0dBm) | dB | 4.5~5.0 |
|
Polarization dependence loss | dB | 0.3 |
|
Polarization dependence gain | dB | 0.4 |
|
Polarization mode dispersion | ps/nm | 0.3 |
|
Input/output isolation | dB | 30 |
|
Pump power leakage | dBm | -30 |
|
Echo loss | dB | 55 |
|
SNMP network management interface |
| RJ45 |
|
Opticalconnector(IN/OUT) |
| LC/UPC ,LC/APC | SC/APC |
Power supply | V | 90~265 | 220VAC |
30~72 | -48VDC | ||
Power consume | W | 50~150 |
|
Work temp. | ºC | 0~65 |
|
Storage temp. | ºC | -40~80 |
|
Relative humidity | % | 5~95 |
|
Size (W) × (D) × (H) | " | 19×15×1.75 | FWAP-1550T,1U |
" | 19×15×1.75 | FWAP-1550H,1U or 2U | |
Products series
| Total Output (dBm) | Total Output (mW) | Output No. | Each Outputs(dBm) |
| FWAP-1550H-26 | 400 | 4 | 18.5 |
| 8 | 15.0 | ||
| FWAP-1550H-27 | 500 | 4 | 19.5 |
| 8 | 16.0 | ||
| FWAP-1550H-28 | 630 | 4 | 20.5 |
| 8 | 17.0 | ||
| FWAP-1550H-29 | 800 | 4 | 21.5 |
| 8 | 18.0 | ||
| FWAP-1550H-30 | 1000 | 8 | 19.0 |
| 16 | 15.5 | ||
| FWAP-1550H-31 | 1250 | 8 | 20.0 |
| 16 | 16.5 | ||
| FWAP-1550H-32 | 1600 | 8 | 21.0 |
| 16 | 17.5 | ||
| FWAP-1550H-33 | 2000 | 8 | 22.0 |
| 16 | 18.5 | ||
| FWAP-1550H-34 | 2500 | 16 | 19.5 |
| 32 | 16.0 | ||
| FWAP-1550H-35 | 3200 | 16 | 20.5 |
| 32 | 17.0 | ||
| FWAP-1550H-36 | 4000 | 16 | 21.5 |
| 32 | 18.0 | ||
| FWAP-1550H-37 | 5000 | 16 | 22.5 |
| 32 | 19.0 | ||
| FWAP-1550H-38 | 6000 | 16 | 23.5 |
| 32 | 20.0 |
*WDM LOSS:1dBm
