2PCS Cable Entry Ports Fiber Optic Terminal Joint Box
Fiber Optic Terminal BoxOTB-0216-E1Description:The fiber optic terminal box is suitable for optical fiber splitting/splicing using. It is reasonable design for fiber arrangement, and its bend radius is more than 30mm. FeaturesIndustry Standard User Interface, be made of ABS plastic.Can accommodate ......
Send Inquiry
Product Description

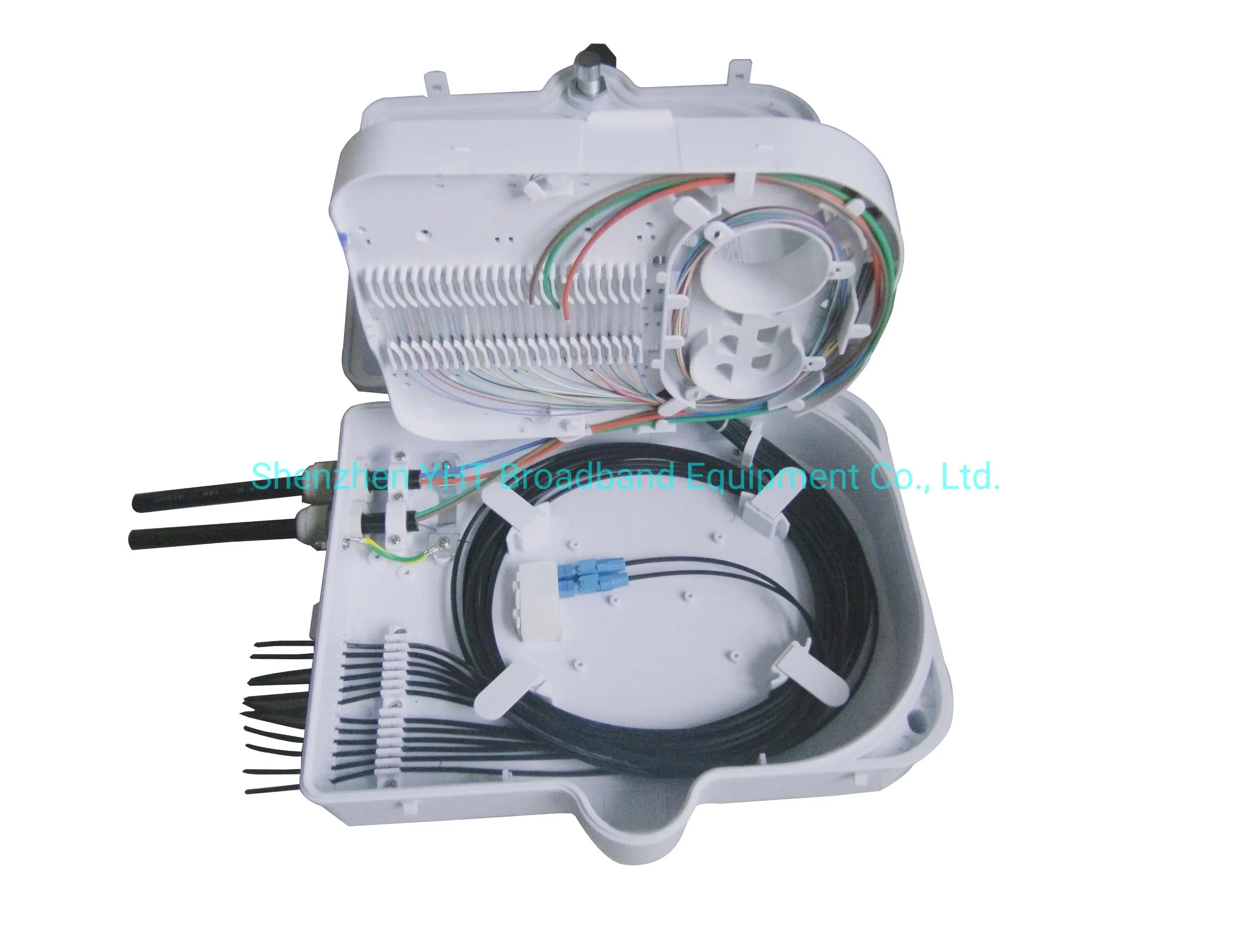

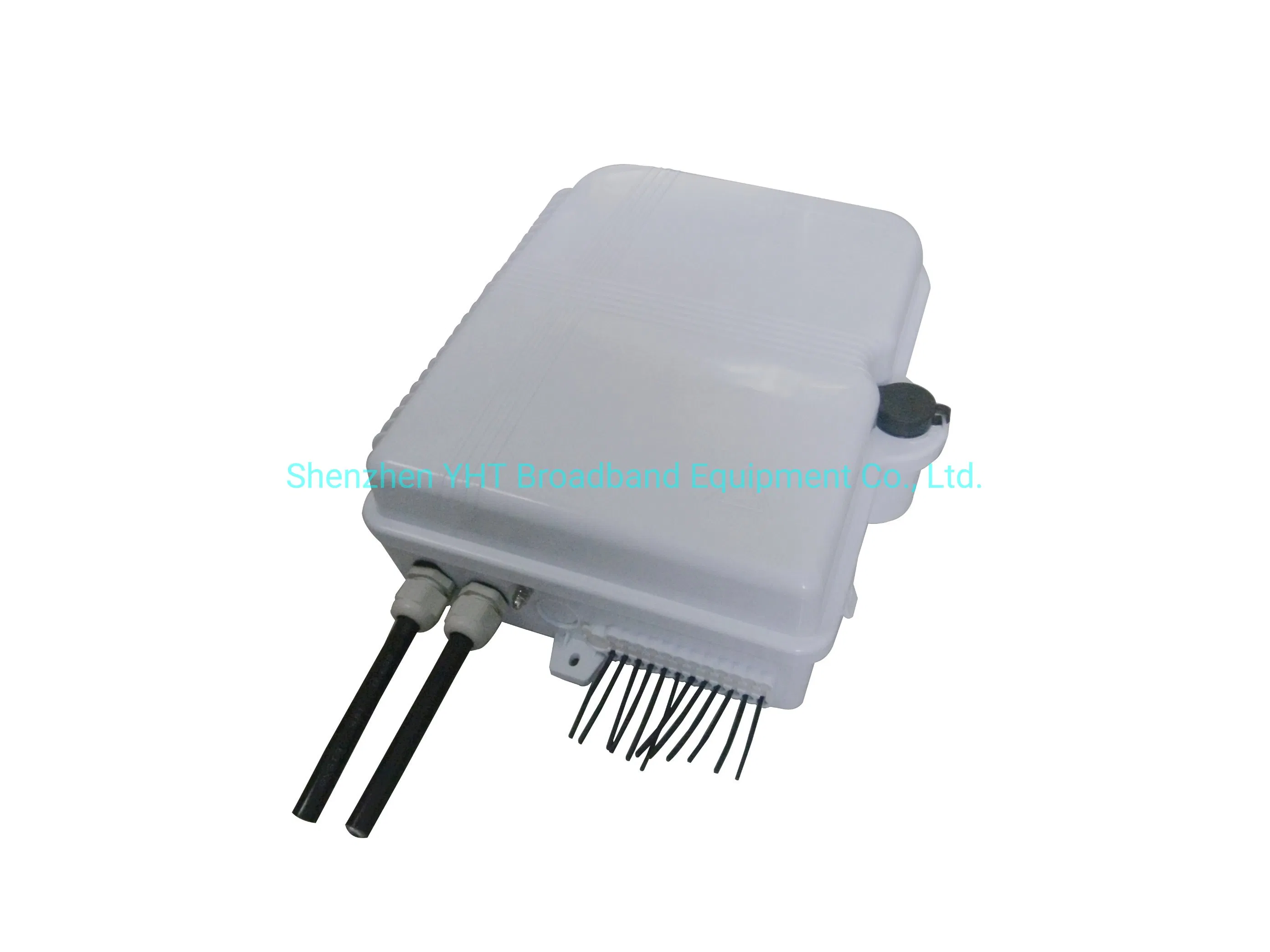

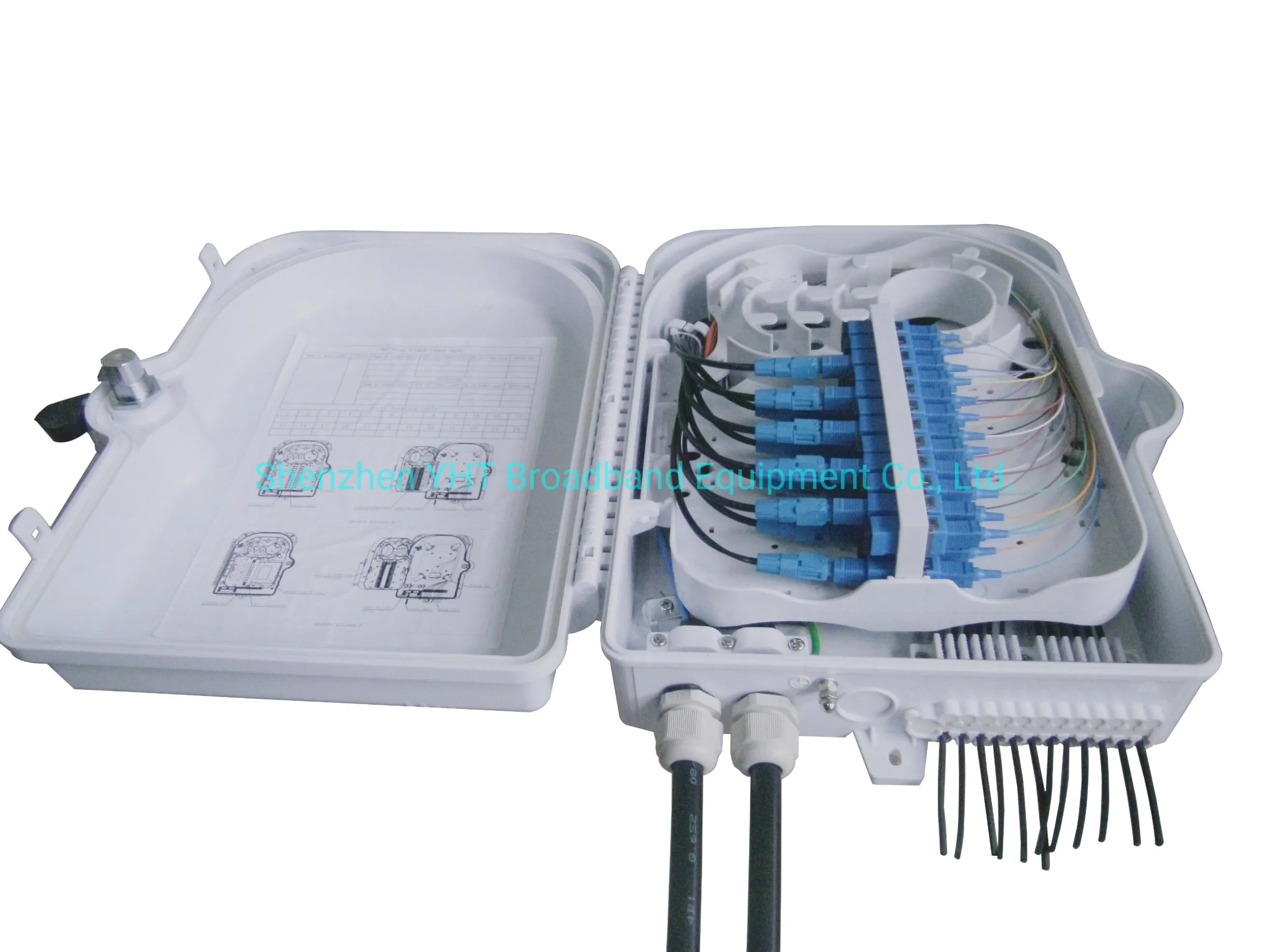

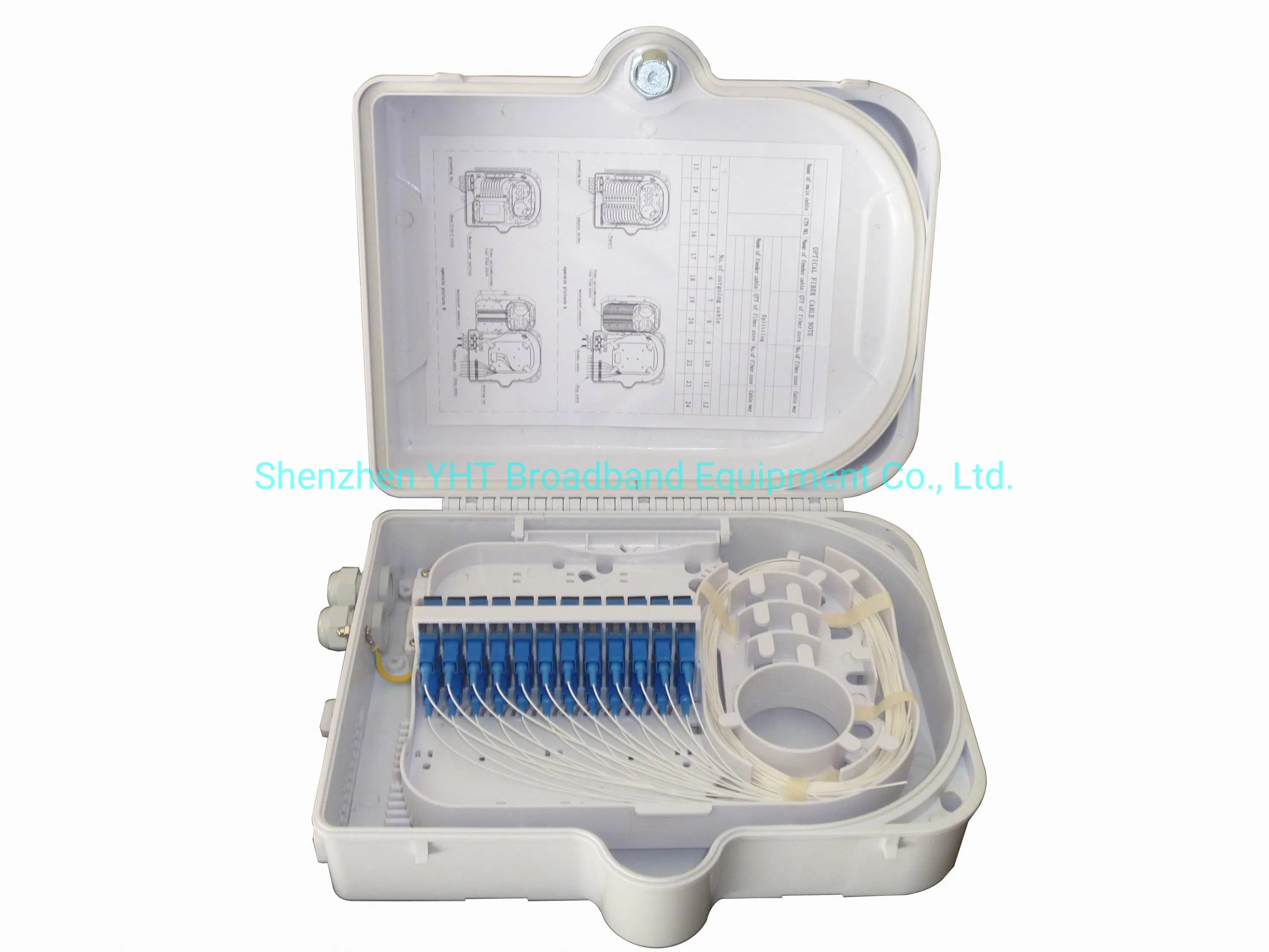

Fiber Optic Terminal Box
OTB-0216-E1
Description:
The fiber optic terminal box is suitable for optical fiber splitting/splicing using. It is reasonable design for fiber arrangement, and its bend radius is more than 30mm.
Features
Specification:
Application
OTB-0216-E1
Description:
The fiber optic terminal box is suitable for optical fiber splitting/splicing using. It is reasonable design for fiber arrangement, and its bend radius is more than 30mm.
Features
- Industry Standard User Interface, be made of ABS plastic.
- Can accommodate 1x4,1x8,1X16, 2x4,2x8 & 2x16 PLC steel tube splitter.
- Rainfall resistant, outdoor using, IP66.
- Can load 24pcs LC, FC, ST, SC … adapters.
- Wall mounting and pole mounting application.
- 2pcs cable entry ports; 24pcs exit ports for FTTH drop cable.
Specification:
| Model | Capacity | Dimension | Remark |
| OTB-0216-E1 | Max. 24fibers | 274.3x334.2x114.1mm | Can load max.2pcs splitter box Can load max.24pcs SC simplex, FC simplex, LC duplex … adapters |
Application
- FTTH access network.
- Telecommunication Networks
- CATV Networks
- Data communications Networks
