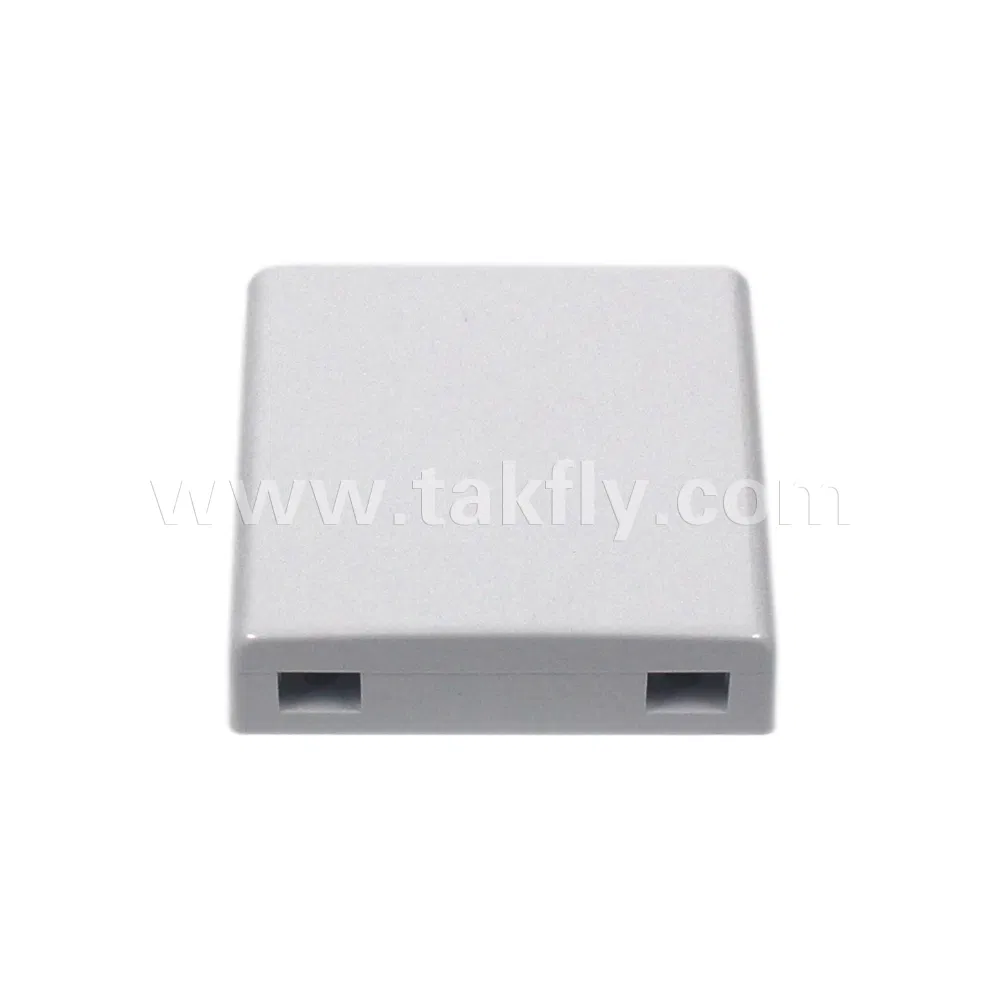

2 Core Wall Mount Fiber Optic Faceplate FTTH Subscriber
2 core wall mount fiber optic faceplate FTTH Subscriber1.Description1.Suitable for multi type module installation, application in the work area routing subsystem;2.The embedded surface box, installation, convenient disassembly with protective door, dust; according to customer requirements can be pri......
Send Inquiry
Product Description

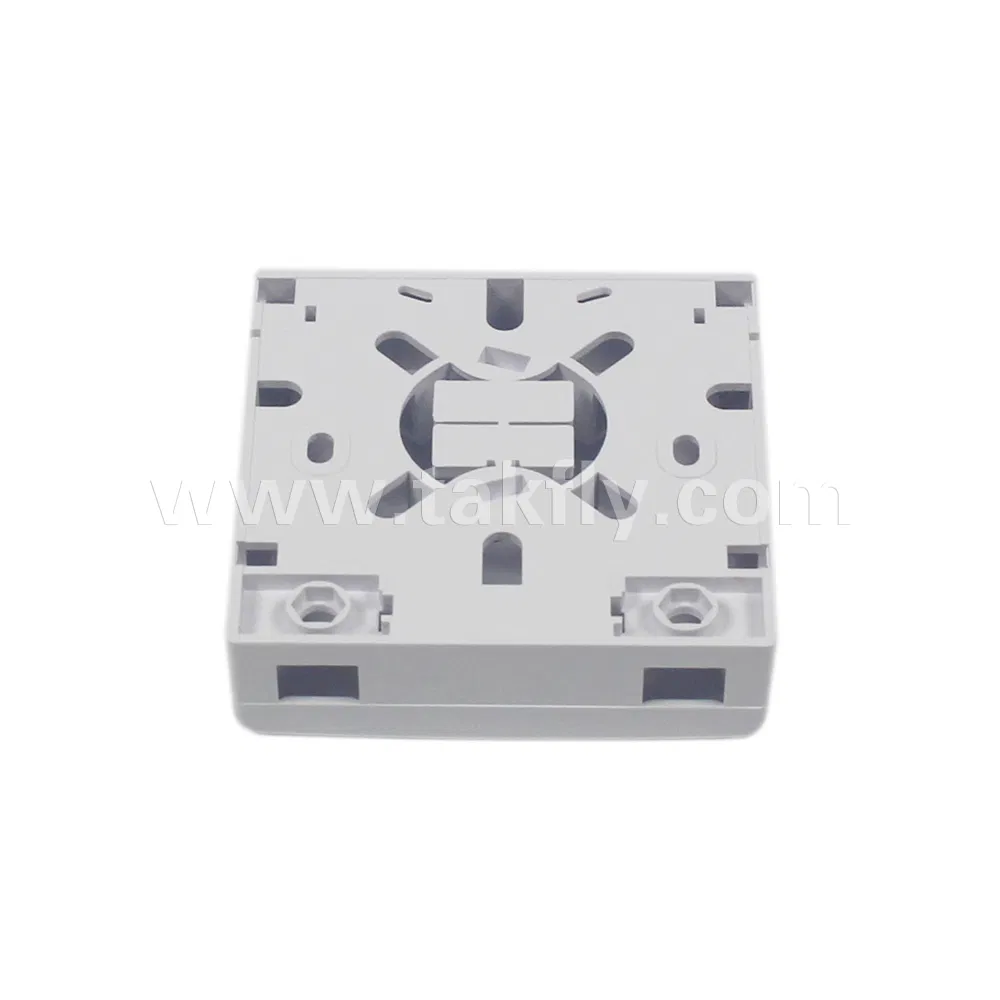

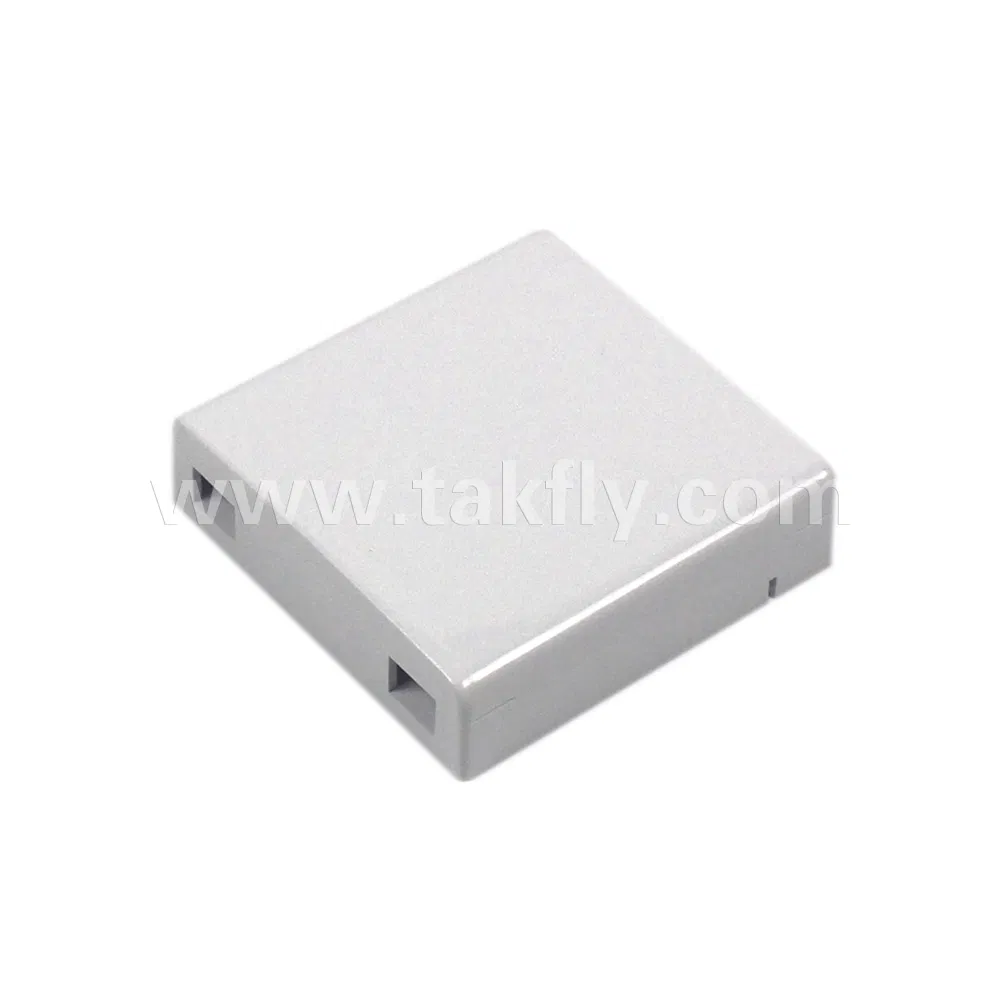

2 core wall mount fiber optic faceplate FTTH Subscriber
1.Description
1.Suitable for multi type module installation, application in the work area routing subsystem;

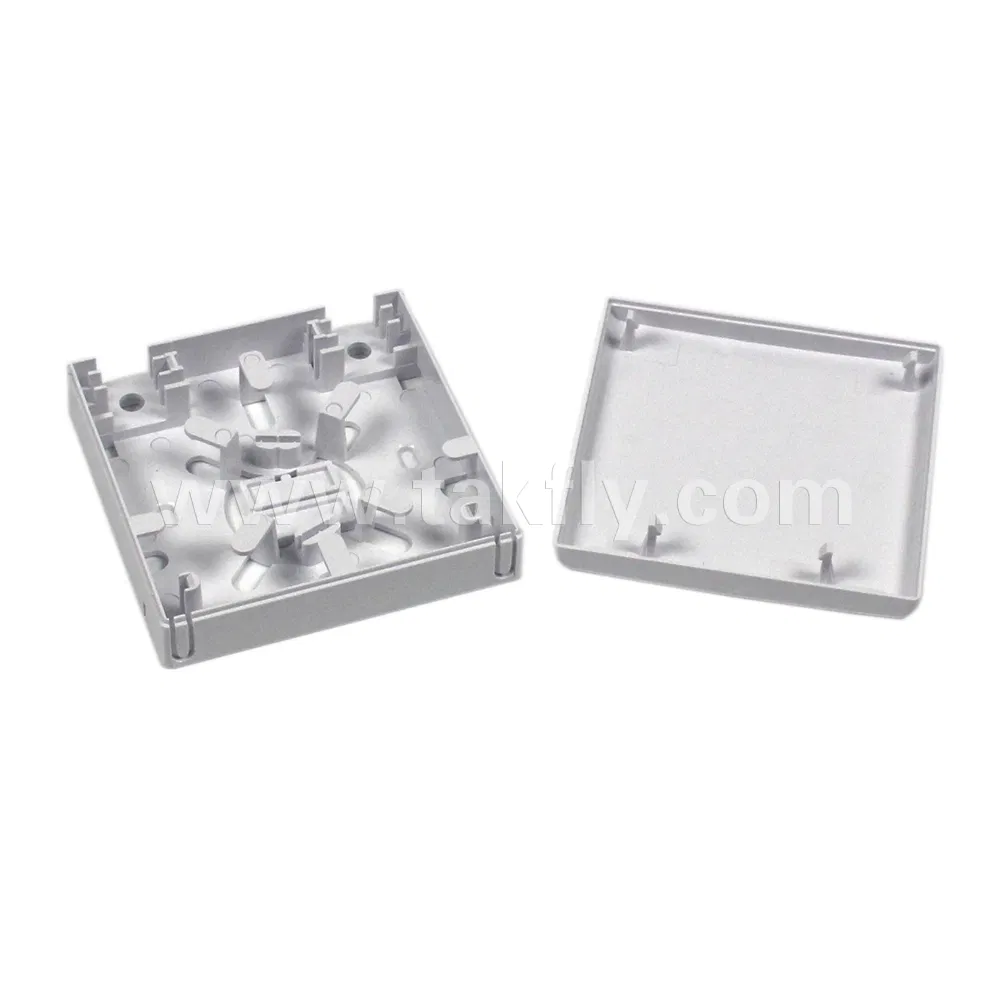

2.The embedded surface box, installation, convenient disassembly with protective door, dust; according to customer requirements can be printed LOGO;
3.Application of optical fiber with SC / LC simplex, duplex different environment bright dress, flush plate. A combination of all the modules can be according to customer selection and configuration;
4.All modules are free welding mode.
2.Working area
1.The telecommunication network, metropolitan area network, optical fiber communication system;
2.Optical testing equipment/instrument;
3.CATV optical fiber, optical fiber sensor;
4.Optical fiber broadband access network, FTTH optical fiber;
5.Optical fiber distribution frame, frame type and wall type optical fiber distribution unit;
3.Specification
5.Accessories list
6.Our termination box outlet
7.Our workshop
8.Our OTB families
9.Our workship
10.Company Information
Takfly, established in 2000, has been manufacturing and exporting fiber cable, adapter, attenuator, connector, coupler, splitter, termination box, ODF, fiber instruments, media conceiver, switch, optical module, CWDM/DWDM, etc. Takfly's products have passed the management verification: ISO14001: 2004. and goods have passed RoHS, CE, FCC, REACH, EN50575, ISO9001, etc.
So far, Our products have been widely installed in many big worldwide project and work perfectly. Many project contactors ask the first and second operators to purchase fiber items from Takfly for their new project. In addition, we also have builted long term cooperation with Lapp, Amper, Telefonica, orange and Ericsson. All enquiry are warmly welcomed here no matter it's small or big, we promise to provide all customers high quality and good price item.
Takfly can provide empty and full loaded OTB to you. Any interest, you can contact Sophie at any time.
1.Description
1.Suitable for multi type module installation, application in the work area routing subsystem;
2.The embedded surface box, installation, convenient disassembly with protective door, dust; according to customer requirements can be printed LOGO;
3.Application of optical fiber with SC / LC simplex, duplex different environment bright dress, flush plate. A combination of all the modules can be according to customer selection and configuration;
4.All modules are free welding mode.
2.Working area
1.The telecommunication network, metropolitan area network, optical fiber communication system;
2.Optical testing equipment/instrument;
3.CATV optical fiber, optical fiber sensor;
4.Optical fiber broadband access network, FTTH optical fiber;
5.Optical fiber distribution frame, frame type and wall type optical fiber distribution unit;

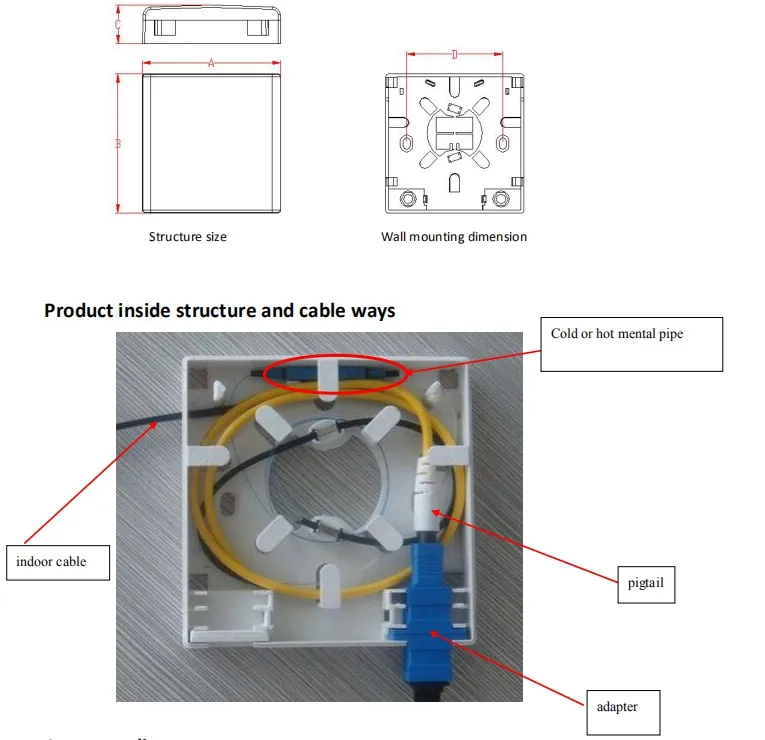

3.Specification
| Item | Technical data |
| A*B*C(mm)appearance dimension | 86*86*24 |
| D(mm)wall mounting dimension | 60 |
| usage range | 3.0 x 2.0 mm indoor cable |
| fiber diameter | 125μm ( 652 & 657 ) |
| cladding diameter | 250μm & 900μm |
| Applicable mode | Single mode and multimode |
| Tensile strength | >50 N |
| temperature | -40~+85ºC |
| adapter | SC & FC |
| insertion loss | ≤0.2dB(1310nm & 1550nm) |
| output port | 2 |
5.Accessories list
| Name | Unit | QTY | remarks |
| Heat shrinkable tube | L=40mm | 2 | |
| wall mounting parts | set | 1 |
6.Our termination box outlet

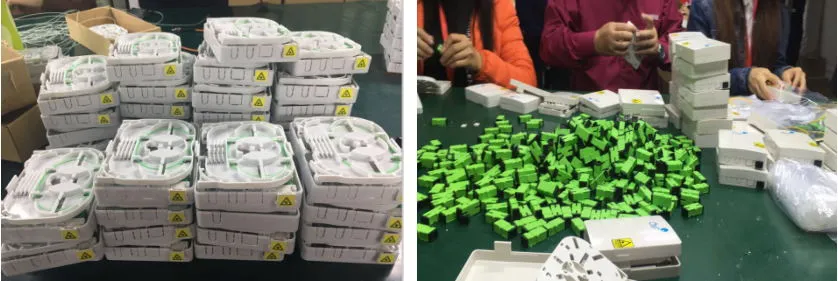

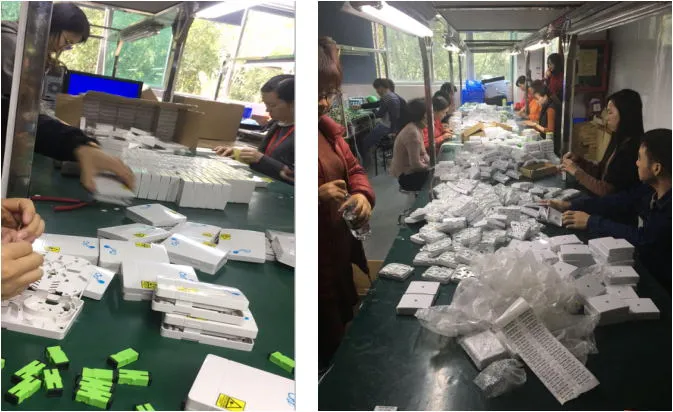

7.Our workshop

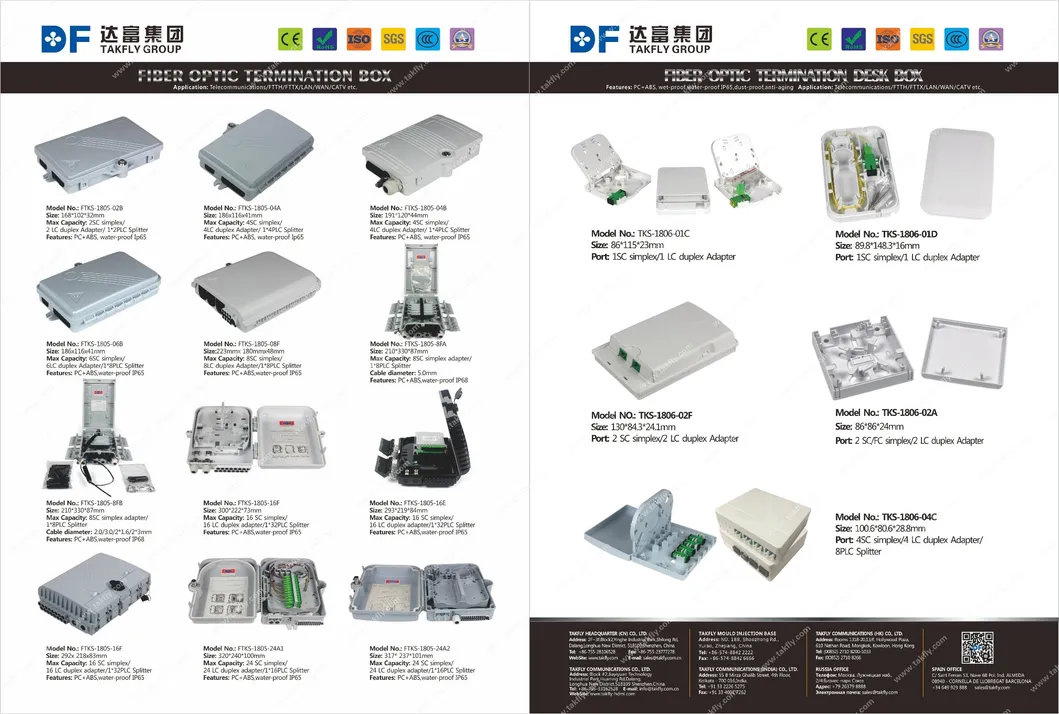

8.Our OTB families

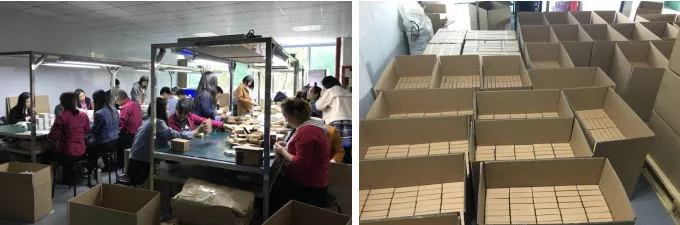

9.Our workship

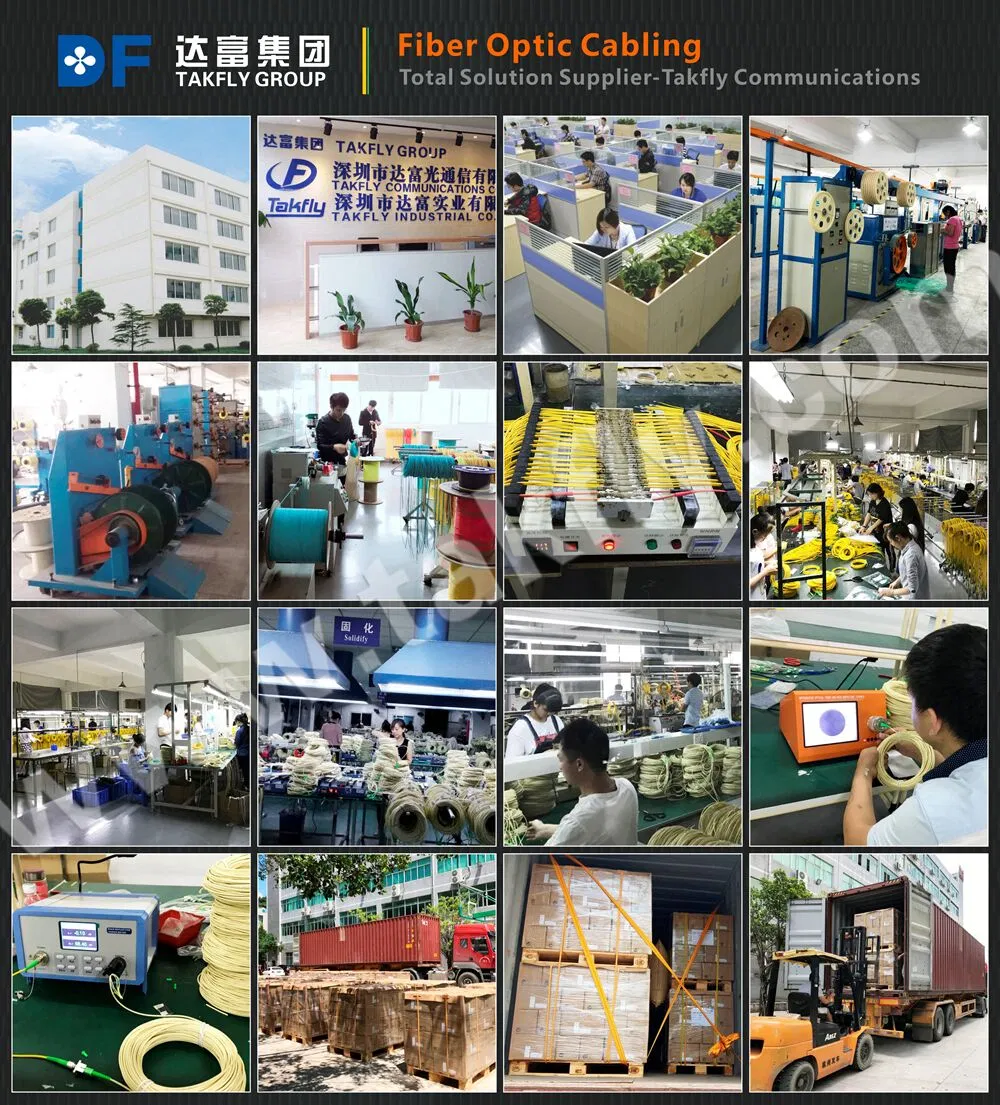

10.Company Information
Takfly, established in 2000, has been manufacturing and exporting fiber cable, adapter, attenuator, connector, coupler, splitter, termination box, ODF, fiber instruments, media conceiver, switch, optical module, CWDM/DWDM, etc. Takfly's products have passed the management verification: ISO14001: 2004. and goods have passed RoHS, CE, FCC, REACH, EN50575, ISO9001, etc.
So far, Our products have been widely installed in many big worldwide project and work perfectly. Many project contactors ask the first and second operators to purchase fiber items from Takfly for their new project. In addition, we also have builted long term cooperation with Lapp, Amper, Telefonica, orange and Ericsson. All enquiry are warmly welcomed here no matter it's small or big, we promise to provide all customers high quality and good price item.
Takfly can provide empty and full loaded OTB to you. Any interest, you can contact Sophie at any time.
