1X2 Steel Tube Type Fiber Optic PLC Splitter with Sc Connector
Product Description 1X2 Steel Tube Type Fiber Optic PLC Splitter DescriptionPlanar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wave......
Send Inquiry
Product Description
Product Description

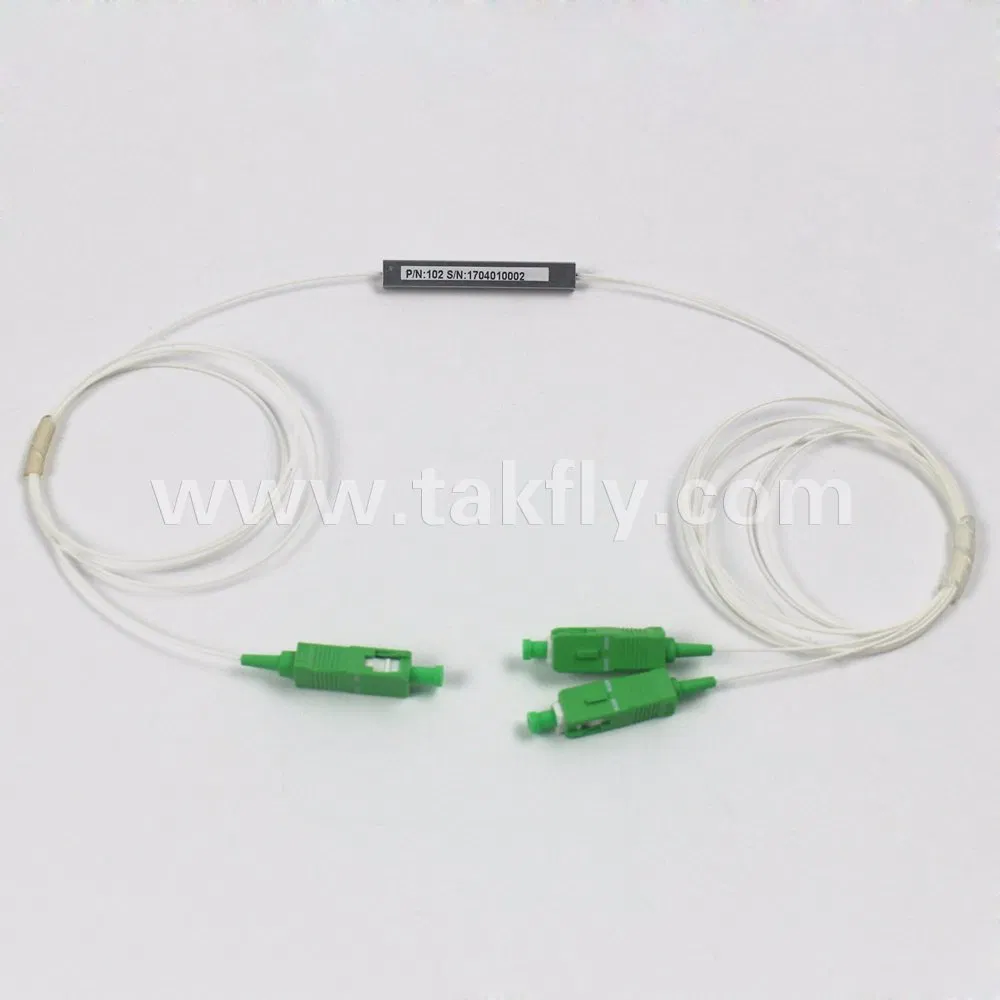

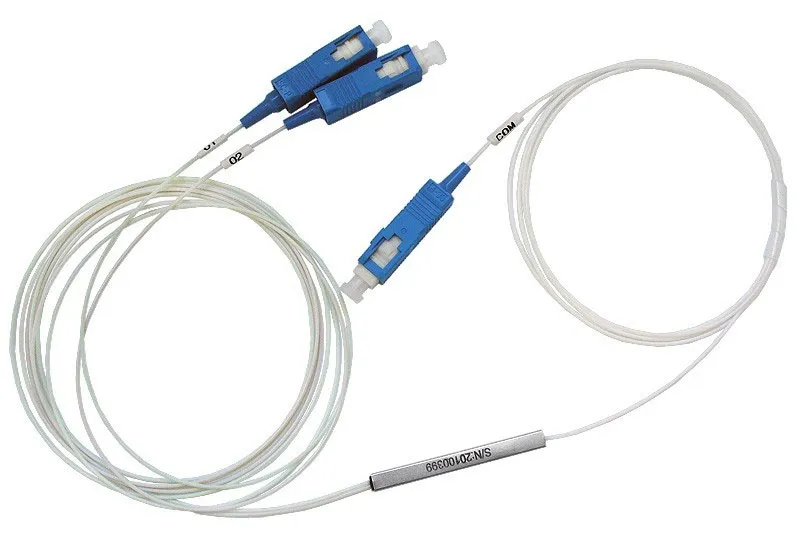

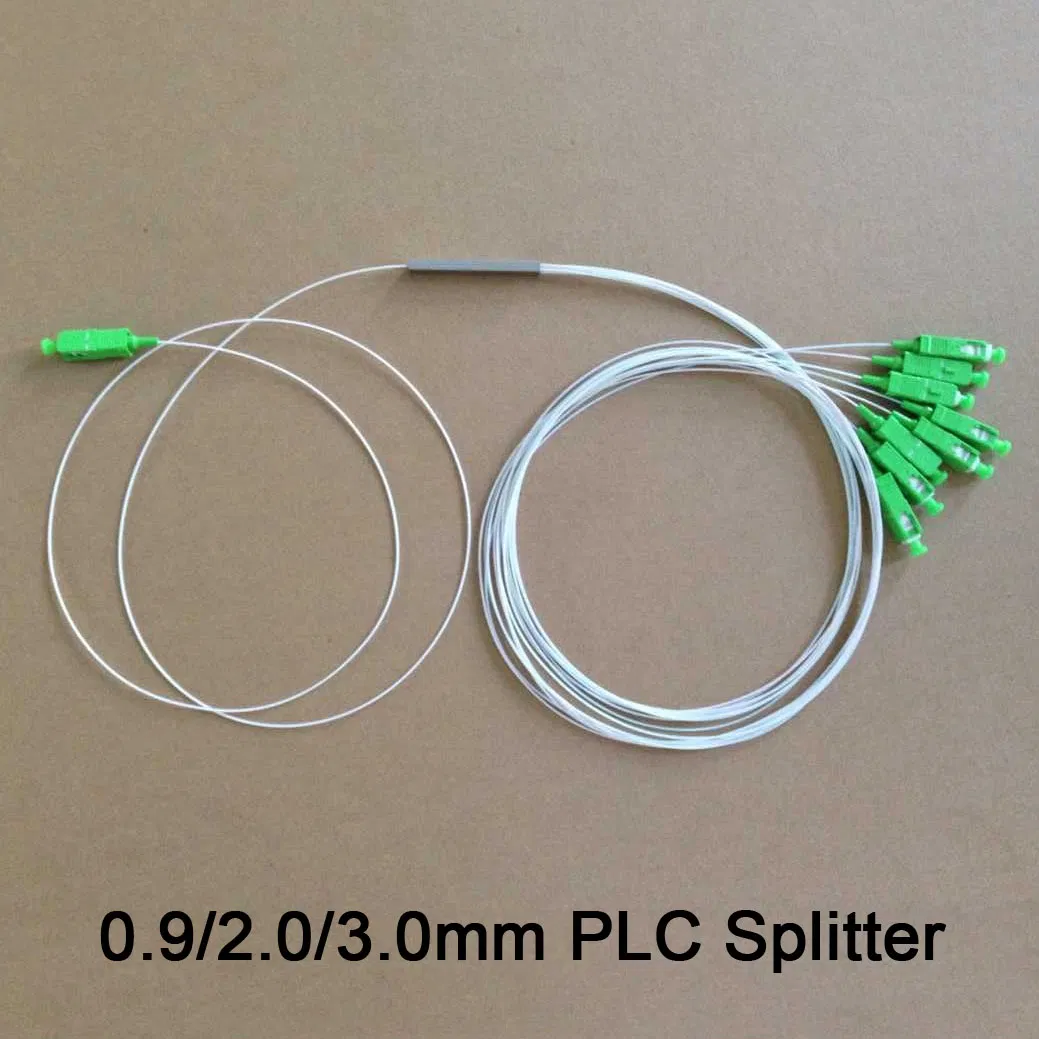

1X2 Steel Tube Type Fiber Optic PLC Splitter
Description
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. Takfly provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.
1×N PLC Splitter Specifications (Measured at room temperature and excludes connector loss)
2×N PLC splitter Specifications (Measured at room temperature and excludes connector loss)
Remark:The above IL is for the PLC Splitter without connectors,for the PLC Splitter with connectors, the above IL should add 0.3dB each.
