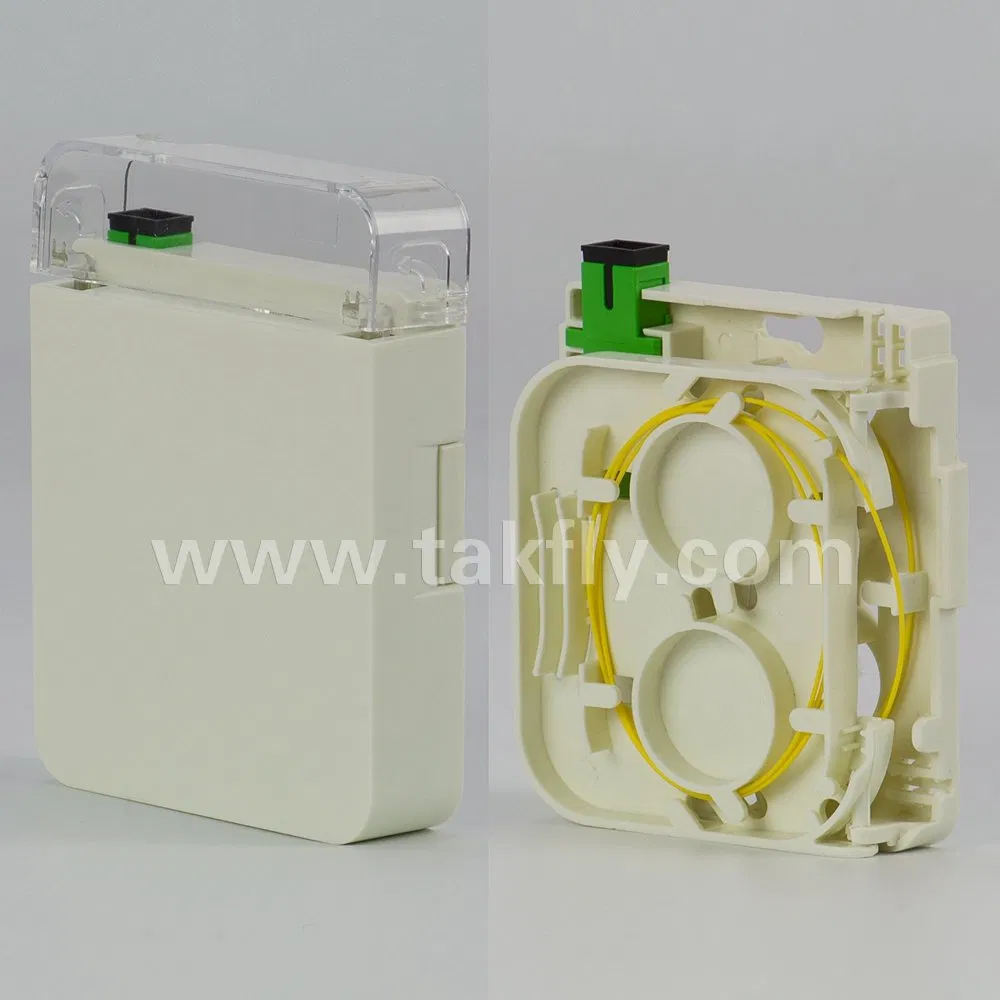

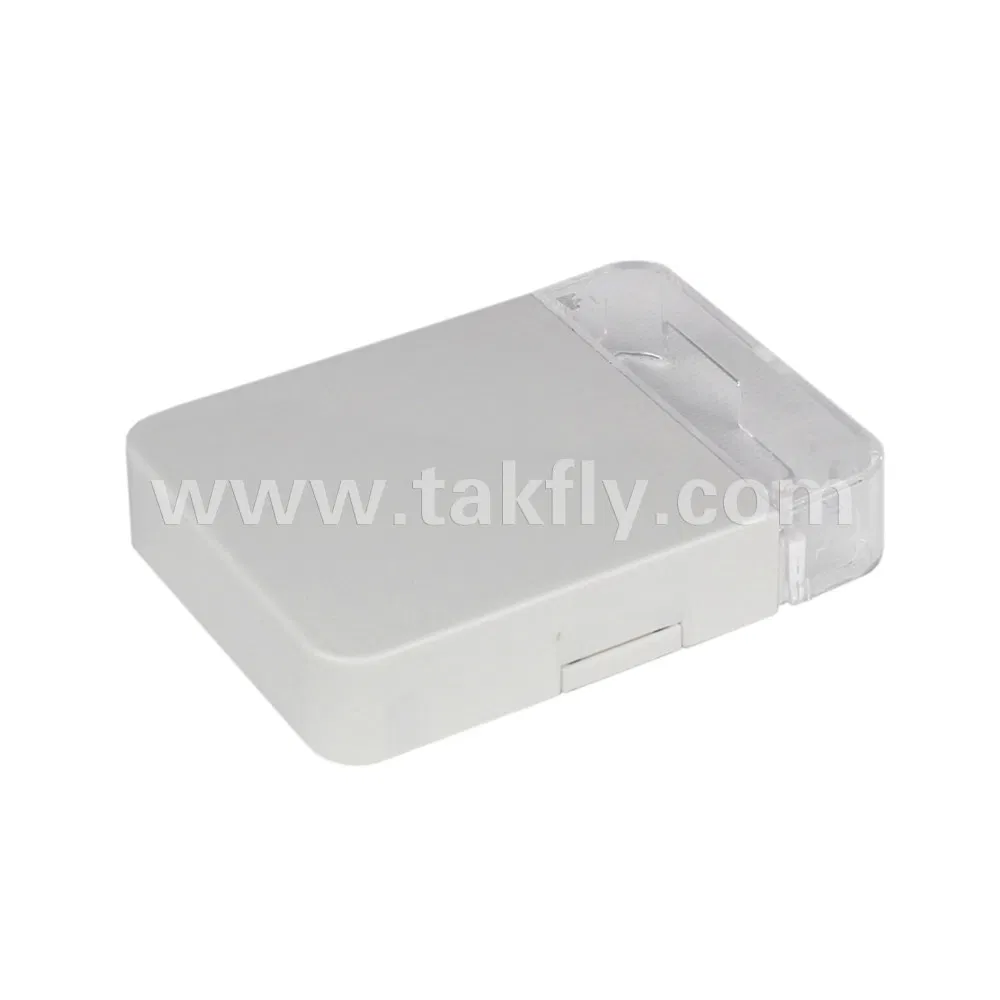

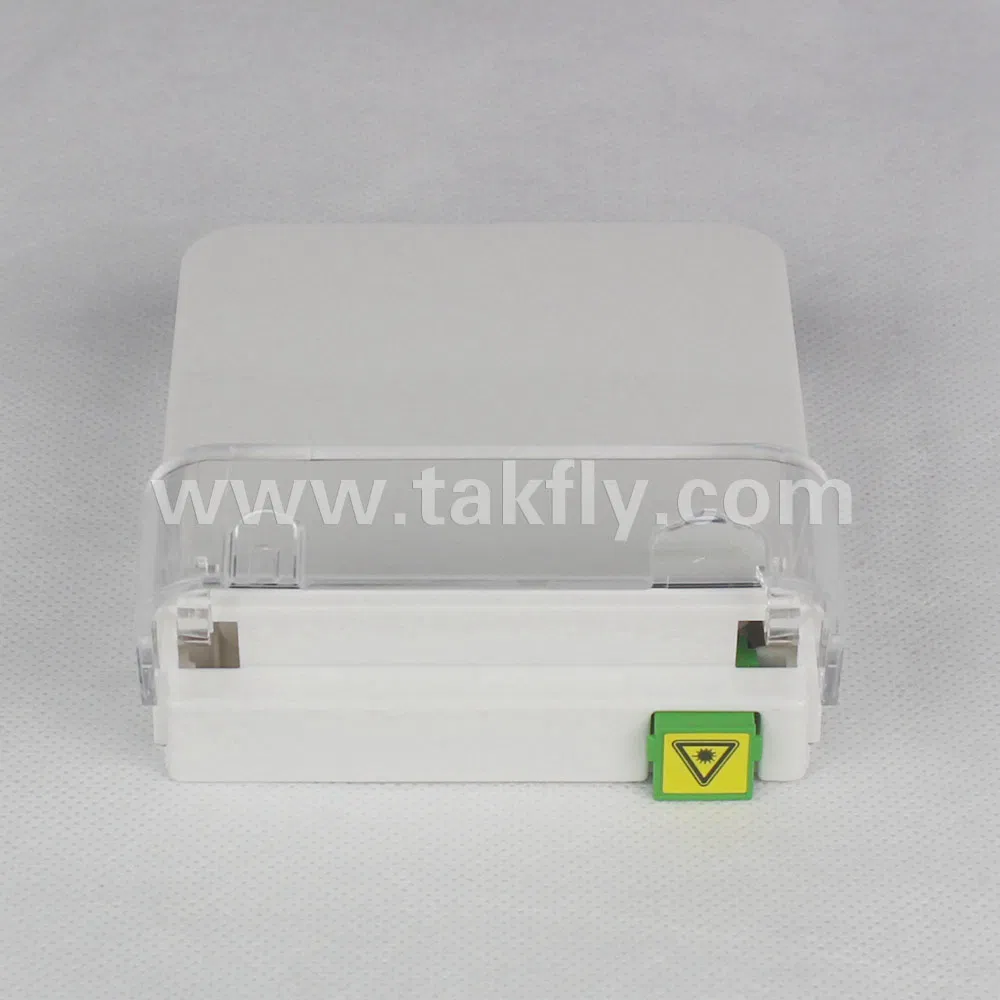

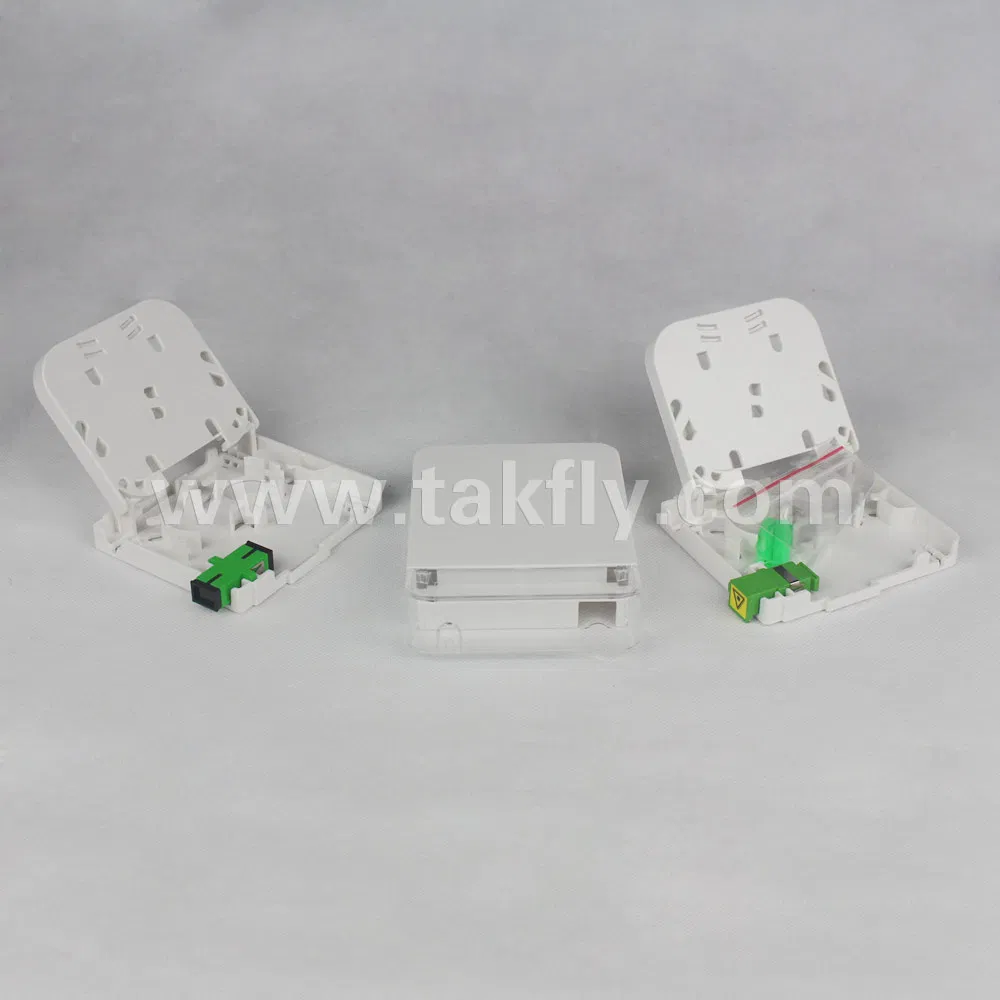

1pots Fiber Optic FTTH Wall Socket
1pots Fiber Optic FTTH Wall Socket Model No.: TKS-1806-01CDescriptionIt is used for different kinds of modules and applied to the working area subsystem.It uses embedded surface frame, easy to install and disassemble, it is with protective door and dusty free, can do OEM for any customers and print......
Send Inquiry
Product Description
1pots Fiber Optic FTTH Wall Socket
Model No.: TKS-1806-01C
Description
It is used for different kinds of modules and applied to the working area subsystem.
It uses embedded surface frame, easy to install and disassemble, it is with protective door and dusty free, can do OEM for any customers and print requested LOGO.
With application of fiber SC/LC simplex, duplex and other different environment installed plate or flush plate. All modules can be configured on customer's choice.
Cable management can be connected without cutting(with express port)
All modules are free of welding.
Working area
The telecommunication network, metropolitan area network, optical fiber communication system.
Optical testing equipment/instrument.
CATV optical fiber, optical fiber sensor.
Optical fiber broadband access network, FTTH optical fiber.
Optical fiber distribution frame, frame type and wall type optical fiber distribution unit.
Performance index
Configuration table
Table 1 Model and configuration
Installation
1. Wall-mounted installation
2. Drill 2 holes over the wall based on the size in table 1,place the expansion boltΦ5.5*30,place the box to match up the holes and use bolt to fasten.(see Pic 4)
Accessories
1. User Manual*1.
2. Accessories Bag * 1

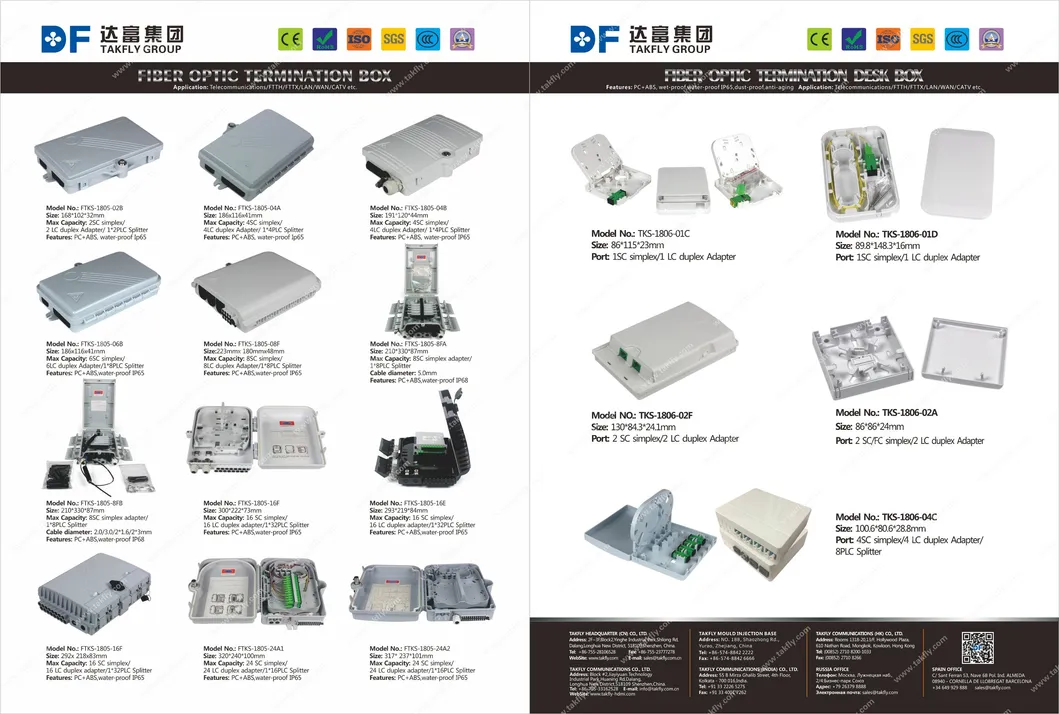

More Fiber Optic Termination Box From Takfly.Model No.: TKS-1806-01C
Description
It is used for different kinds of modules and applied to the working area subsystem.
It uses embedded surface frame, easy to install and disassemble, it is with protective door and dusty free, can do OEM for any customers and print requested LOGO.
With application of fiber SC/LC simplex, duplex and other different environment installed plate or flush plate. All modules can be configured on customer's choice.
Cable management can be connected without cutting(with express port)
All modules are free of welding.
Working area
The telecommunication network, metropolitan area network, optical fiber communication system.
Optical testing equipment/instrument.
CATV optical fiber, optical fiber sensor.
Optical fiber broadband access network, FTTH optical fiber.
Optical fiber distribution frame, frame type and wall type optical fiber distribution unit.
Performance index
| Item | Technical data |
| Application | 3.0 x 2.0 mm drop cable or indoor cable |
| Fiber diameter | 125μm ( 652 & 657 ) |
| Tight cladding diameter | 250μm & 900μm |
| Mode of application | Single mode & duplex mode |
| Tensile strength | >50 N |
| End-use temperature | -40~+85ºC |
| Adaptor | SC & LC |
| Insertion loss | ≤0.2dB(1310nm & 1550nm) |
| output | 1 |
Configuration table
Table 1 Model and configuration
| Model | Size(Pic 1) | Max Capacity | Installation Size(Pic 2) | |
| A*B*C(mm) | SC | LC | D (mm) | |
| TKS-1806-01C | 86*115*23 | 1 | 2 | 81 |
Installation
1. Wall-mounted installation
2. Drill 2 holes over the wall based on the size in table 1,place the expansion boltΦ5.5*30,place the box to match up the holes and use bolt to fasten.(see Pic 4)
Accessories
1. User Manual*1.
2. Accessories Bag * 1
*****For any interests of 1pots Fiber Optic Desktop box for FTTH,please leave me message below.
