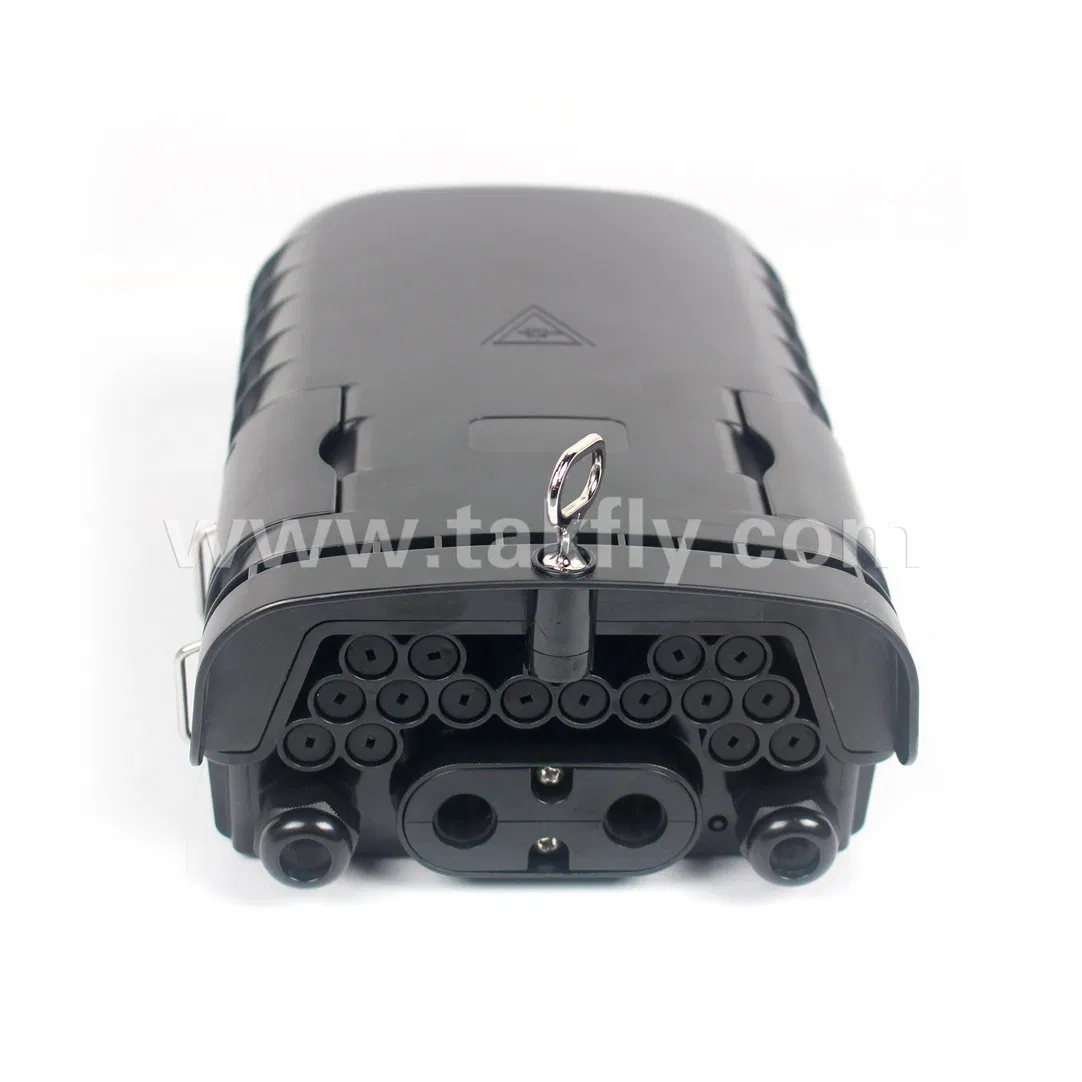

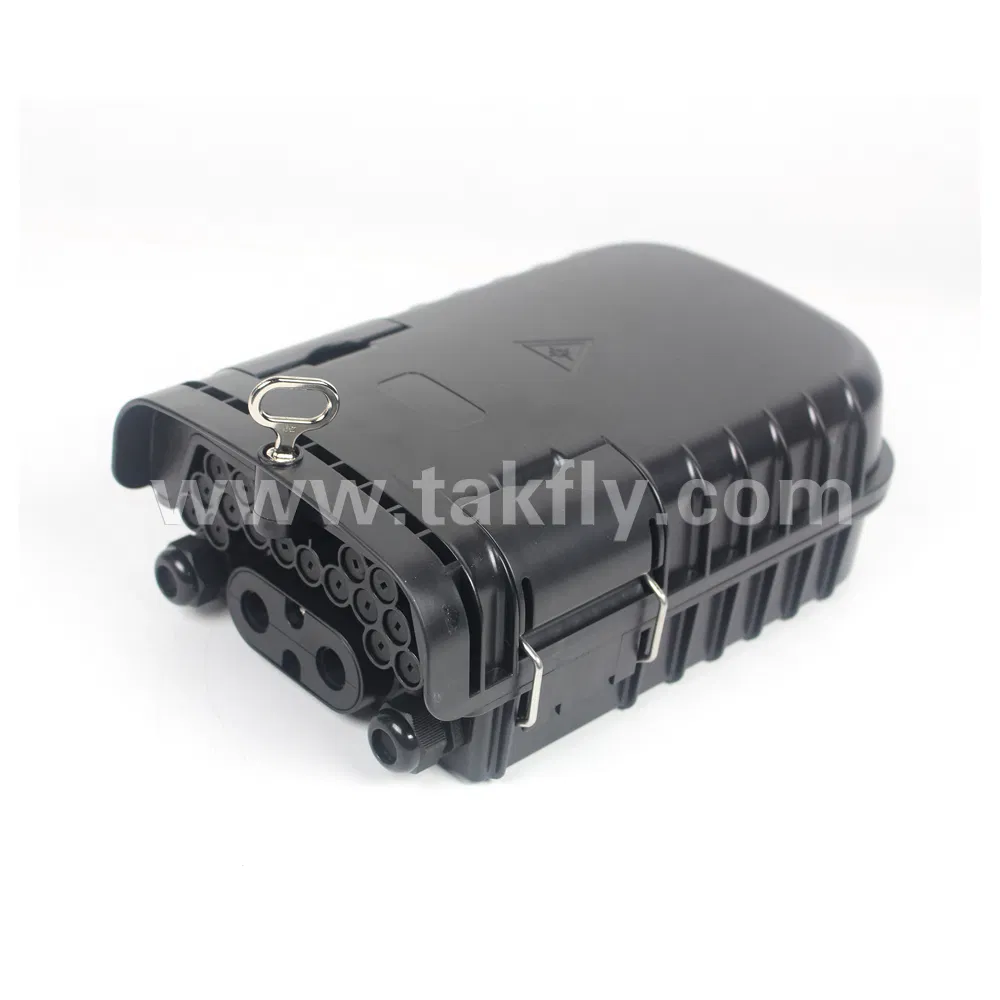

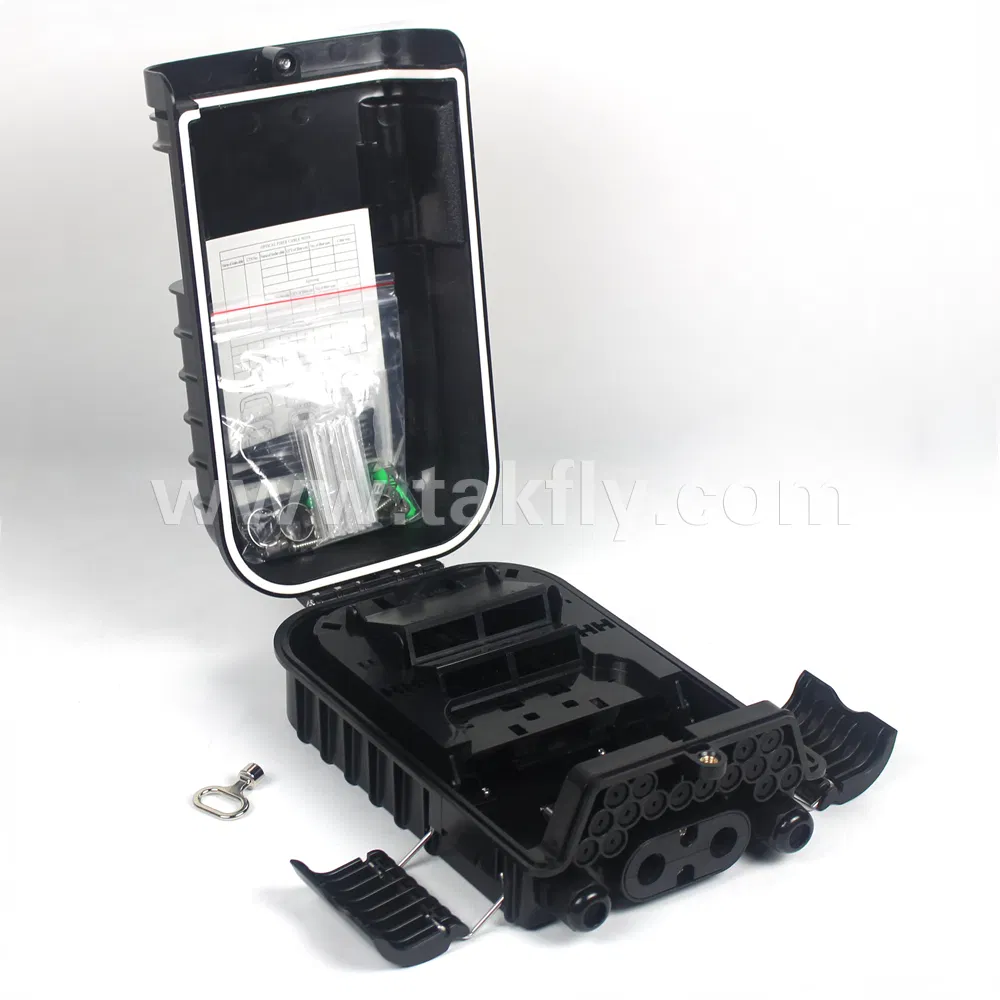

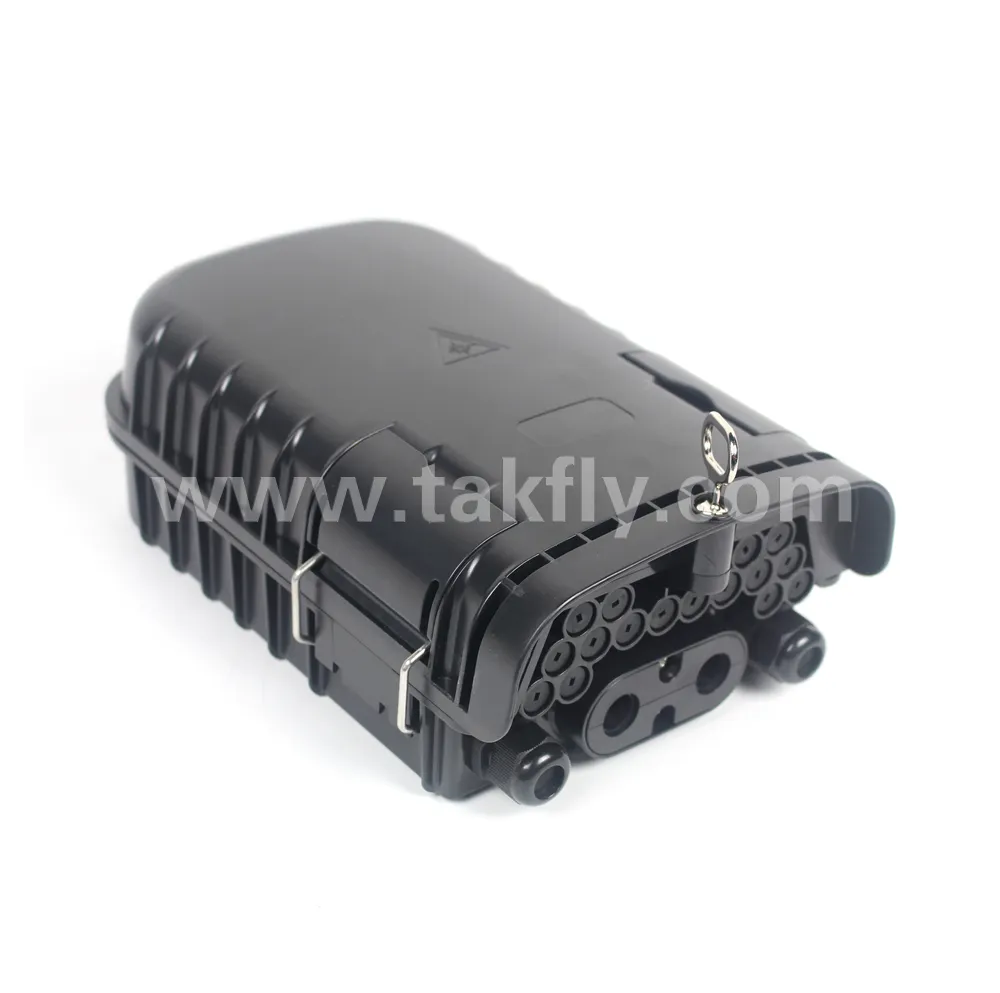

16 Ports Outdoor IP67 Optical Termination Box
16 ports Outdoor IP67 Optical Termination Box DescriptionThis box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.It integrates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provide......
Send Inquiry
Product Description
16 ports Outdoor IP67 Optical Termination Box
Description
This box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.
It integrates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building.
Features
1.Total enclosed structure, be in nice shape
2.Protects and manages cable effectively
3.Secured with anti-theft locking mechanism
4.Standard size, light weight
5.High quality PC +ABS material
6.Good properties of dust, and moisture proofing,IP67
7.Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one
8.Suitable for SC and LC duplex adaptor and pigtail
9.Easy to operate
10.Wall and pole mountable (accessories optional)
11.Suitable for both outdoor and indoor use
Application
1.Telecommunication subscriber loop
2.Fiber to the home(FTTH)
3.LAN/WAN
Technical Data
**************************************************************************************************************************************************************************************************
More Fiber Optic Termination Box
*****Any interest in 16 ports Outdoor IP67 Optical Termination Box, please don't forget to leave me a message below!!
Description
This box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.
It integrates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building.
Features
1.Total enclosed structure, be in nice shape
2.Protects and manages cable effectively
3.Secured with anti-theft locking mechanism
4.Standard size, light weight
5.High quality PC +ABS material
6.Good properties of dust, and moisture proofing,IP67
7.Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one
8.Suitable for SC and LC duplex adaptor and pigtail
9.Easy to operate
10.Wall and pole mountable (accessories optional)
11.Suitable for both outdoor and indoor use
Application
1.Telecommunication subscriber loop
2.Fiber to the home(FTTH)
3.LAN/WAN
Technical Data
| Work Temperature | -40 C ~+85 C |
| Relative Humidity | ≤85% (+30 C) |
| Atmospheric Pressure | 70Kpa~106Kpa |
| Insert Loss | ≤0.2dB |
| UPC Return Loss APC | ≥50dB |
| Return Loss | ≥60dB |
| Pull out Life Insulation | ≥1000 times |
| Withstand Voltage | The grounding device is insulated with the Termination box, IR ≥1000m /500V (direct current) Between the grounding device and the box body, the withstand voltage is over 3000V/Min, no breakdown and flashover. U ≥3000V (direct current) |
**************************************************************************************************************************************************************************************************

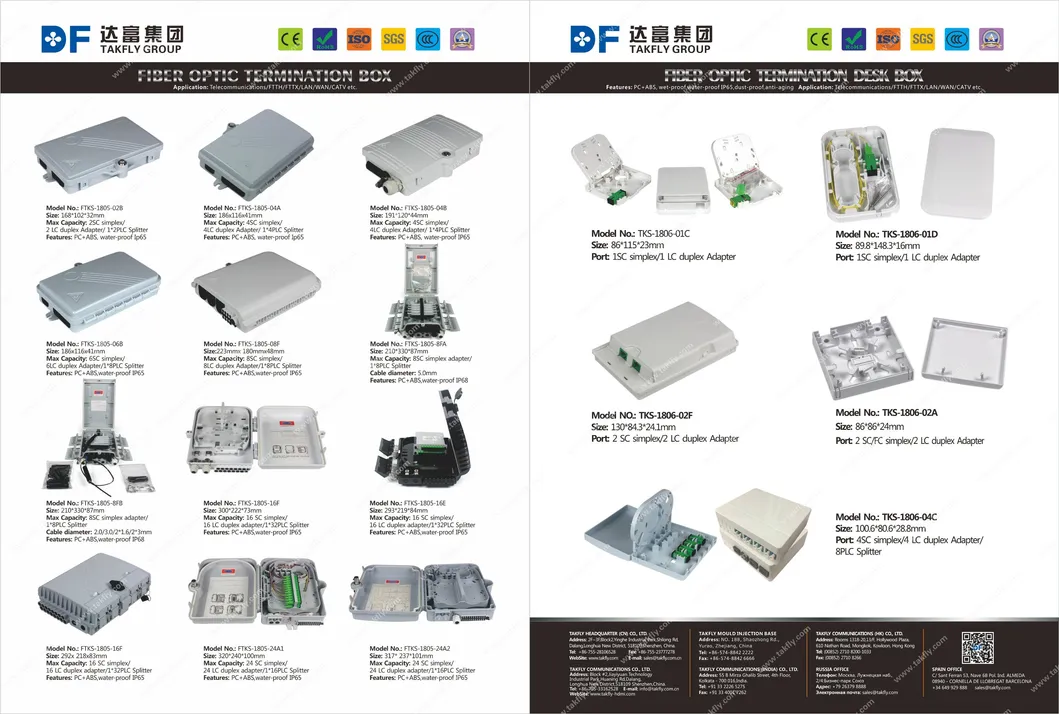

More Fiber Optic Termination Box
