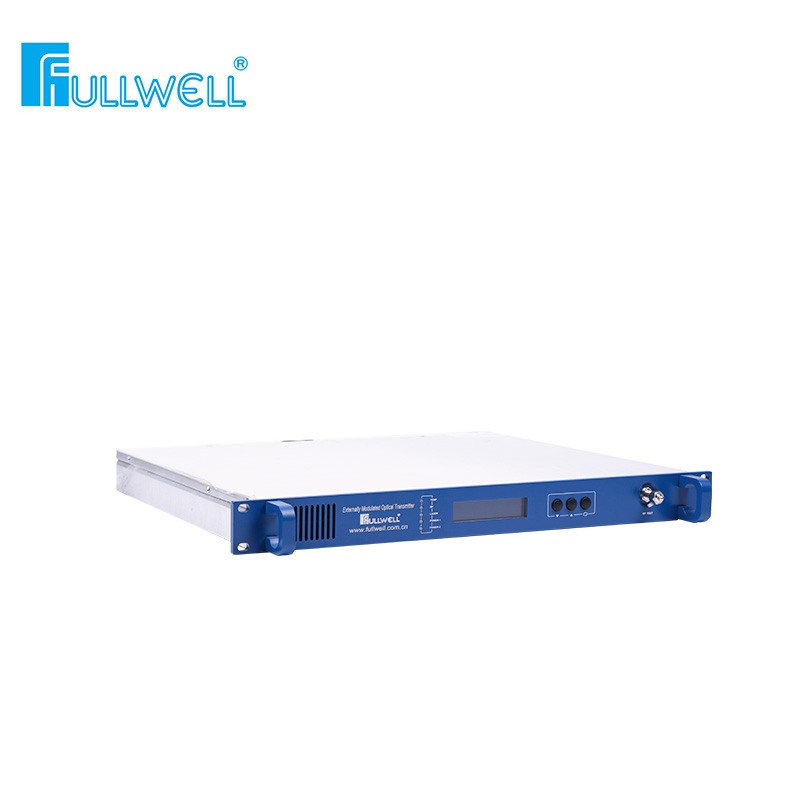

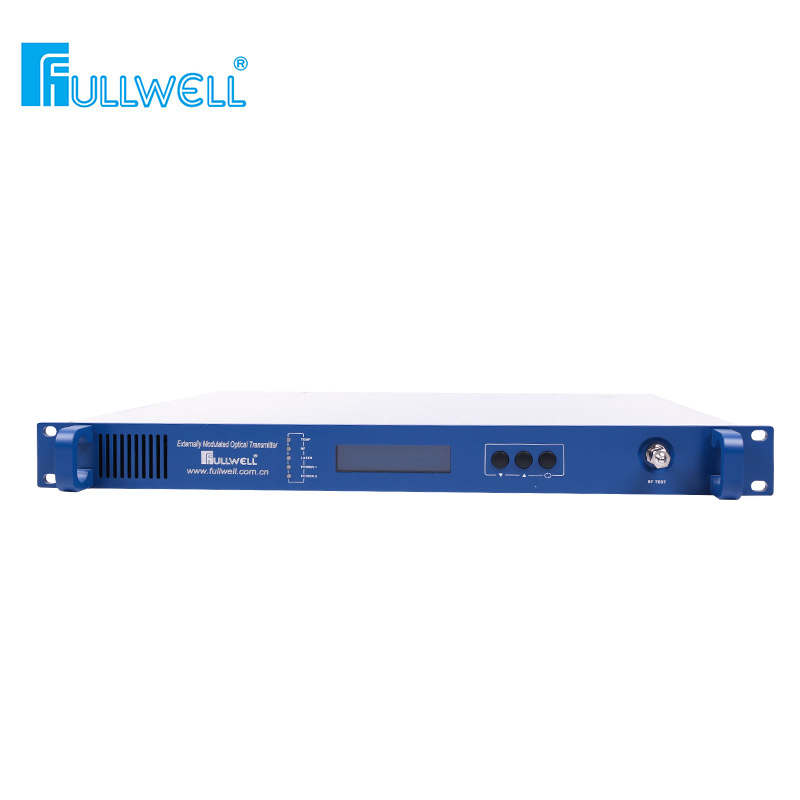

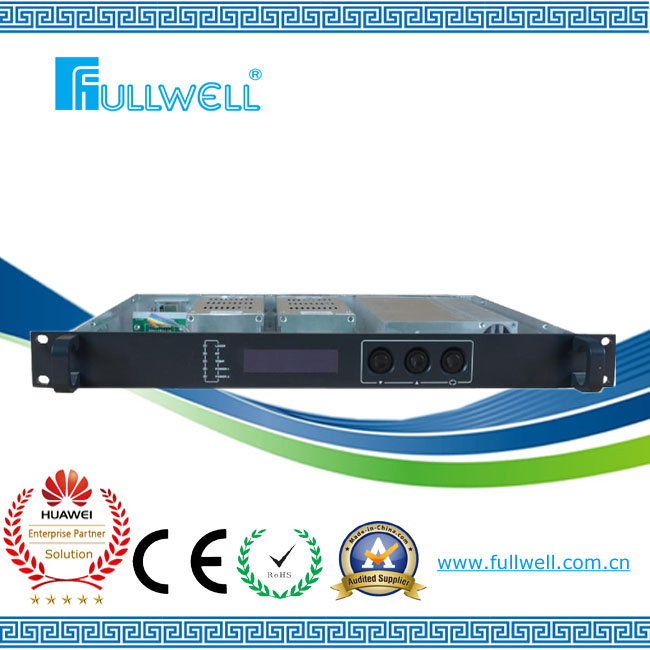

1550nm External Optical Transmitter Sbs 13 16dBm Adjustable
ItemsParameterRemarkOptic Operating wavelength(nm)1550±10 ParametersOutput power(dBm)1×51×5,1×6,1×7, 1x8, 2×3,2×4,2×5 , 2×6 Return loss(dB)≥52 Optical fiber connector SC/APCOptional SC/APC,FC/APCRF Ban......
Send Inquiry
Product Description
| Items | Parameter | Remark | ||
| Optic | Operating wavelength | (nm) | 1550±10 | |
| Parameters | Output power | (dBm) | 1×5 | 1×5,1×6,1×7, 1x8, 2×3,2×4,2×5 , 2×6 |
| Return loss | (dB) | ≥52 | ||

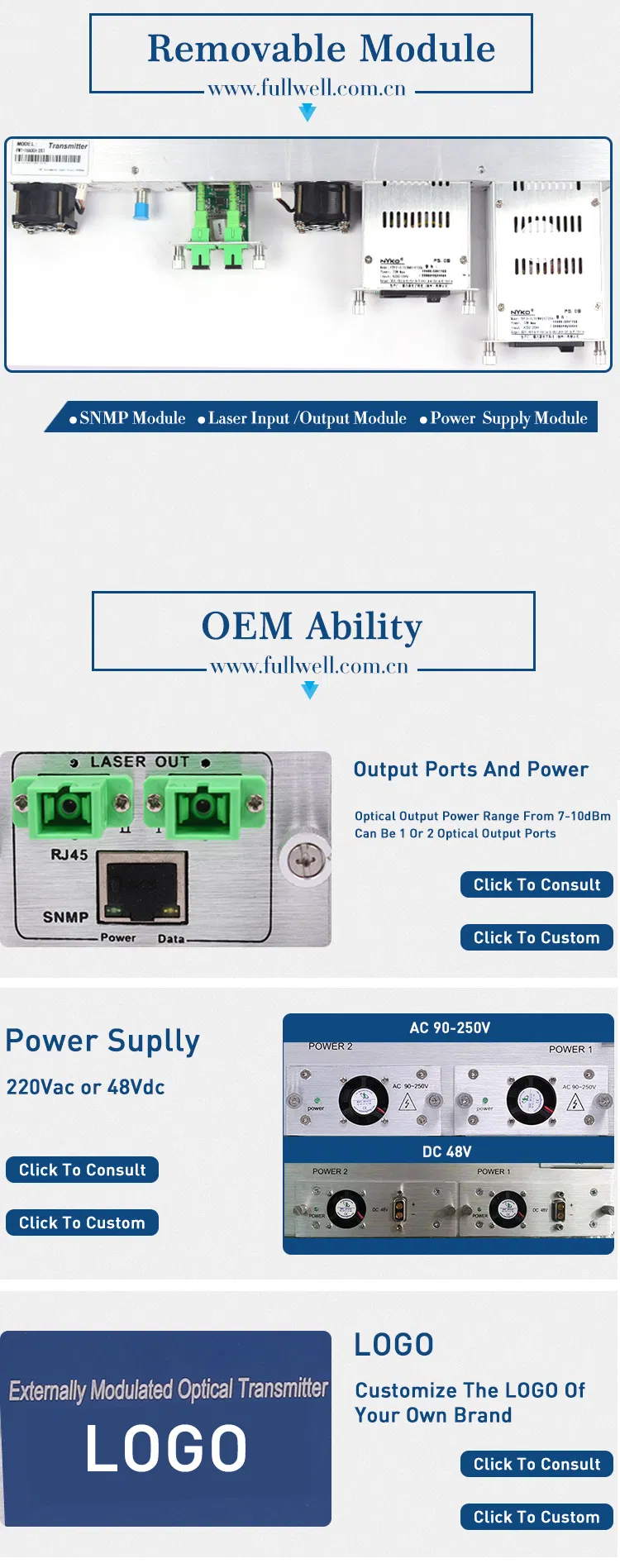

| Optical fiber connector | SC/APC | Optional SC/APC,FC/APC | ||
| RF | Bandwidth | (MHz) | 45-862 | |
| Parameters | Input level | (dBmV) | 23±5 | AGC |
| Flatness | (dB) | ≤±0.75 | 45~862MHz | |
| Return loss | (dB) | >16 | 45~750MHz | |
| Input Impedance | (Ω) | 75 | ||
| Link | Channels | PAL-D/60ch | ||
| Parameters | CNR | (dB) | ≥51 | 65Km fiber,Receive0dBm |
| CTB | (dB) | ≤-57 | ||
| CSO | (dB) | ≤-65 | ||

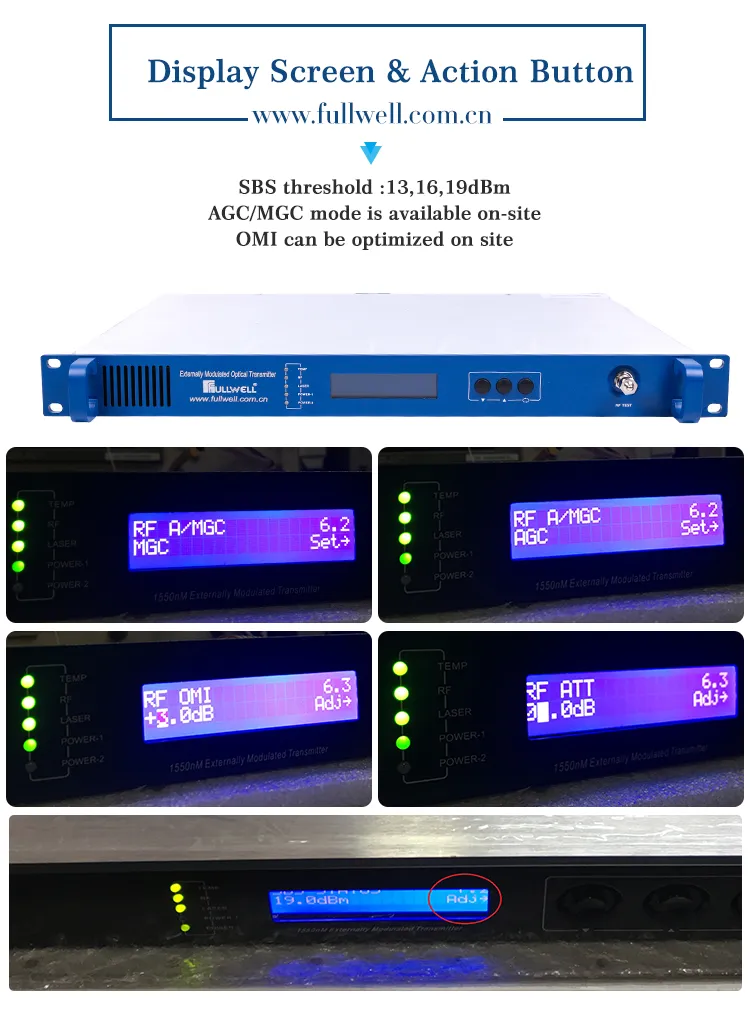

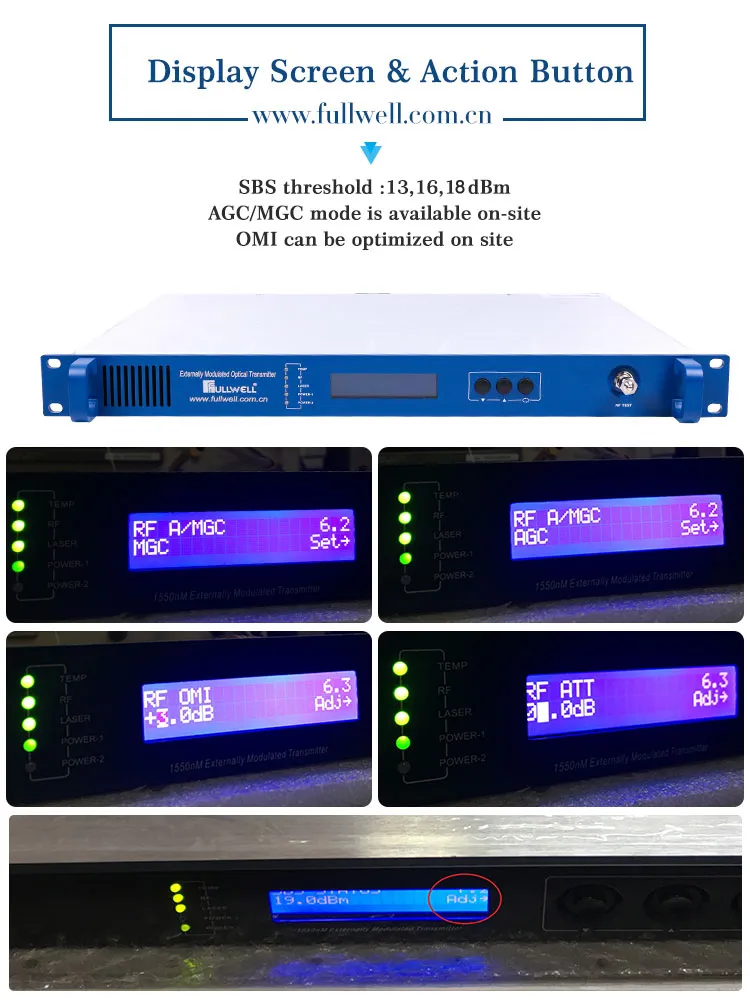

| SBS | (dB) | ≥16.0 | 13.16dB optional | |

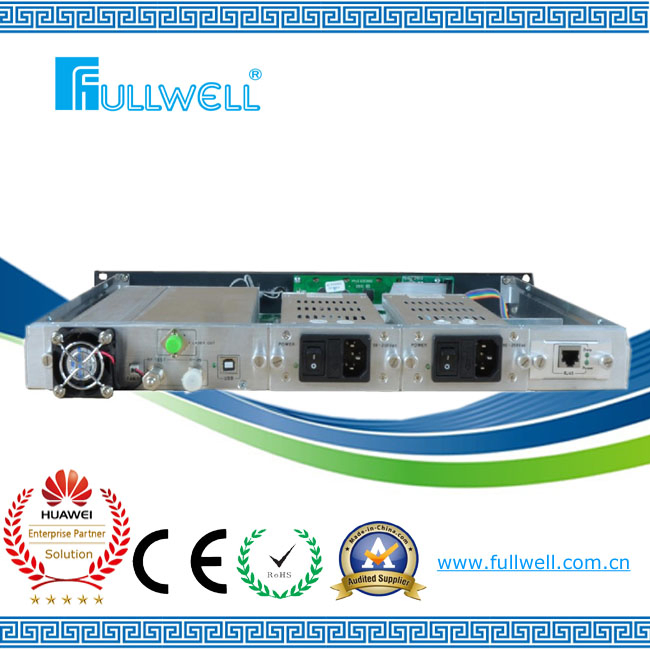

| General | NM interface | RJ45,R232 | ||
| Parameters | Power | (V) | 90~265 | Optional -48VDC |
| Power consumption | (W) | ≤50 | ||
| Working Temp | (ºC) | 0~50 | Automatically casing temp control | |
| Storage Temp | (ºC) | -20~85 | ||
| Operating relative humidity | (%) | 5~95 | ||

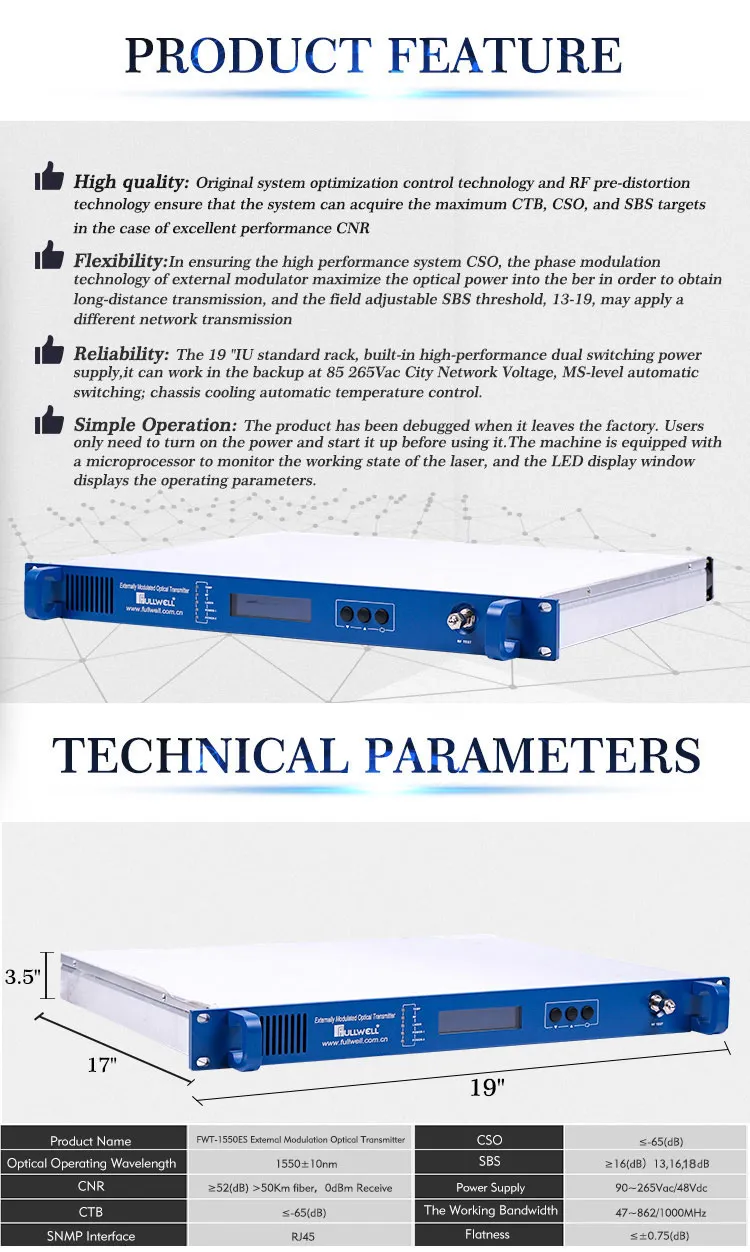

| Size | (") | 19×14.5×1.75 | (W)x(D)x(H) | |
Product Series:
FWT-1550EC -1×5 (one output,≥5dBm)
FWT-1550EC -1×6 (one output,≥6dBm)
FWT-1550EC -1×7 (one output,≥7dBm)
FWT-1550EC -1×8 (one output,≥8dBm)
FWT-1550EC -2×3 (two outputs,≥3dBm)
FWT-1550EC -2×4 (two outputs,≥4dBm)
FWT-1550EC-2×5 (two outputs,≥5dBm)
FWT-1550EC -2×6 (two outputs,≥6dBm)
FAQ:
Q1: Are you a factory or trading company?
A: We're a professional trading company with excellent cooperative factories.
Q2: Where is your company located?
A: Our company is located in Hangzhou City, Zhejiang Province, China. All our clients, from home or abroad
are warmly welcomed to visit us!
Q3: Do your products safe enough?
A: Our products meet with the certificate of CE, ISO & Rosh. Our products are made according to the
standard of the market in our clients. They're all in superior quality & competitive price. You can rest
assure that they are safe enough.
Q4: How long does your warranty provide?
A: We usually provide you a 2-year warranty after the date we sold under normal usage.
Q5: What's your payment terms?
A: T/T, Western Union, Money Gram
Q6: What's your delivery time?
A: Around 8 working days after getting payment in an account ( or pre-payment)
Q7: Can you accept OEM?
A: Yes. We would accept OEM&ODM.
If this model meets your interest, please let us have your specific inquiry, our quotation will be forwarded timely!
