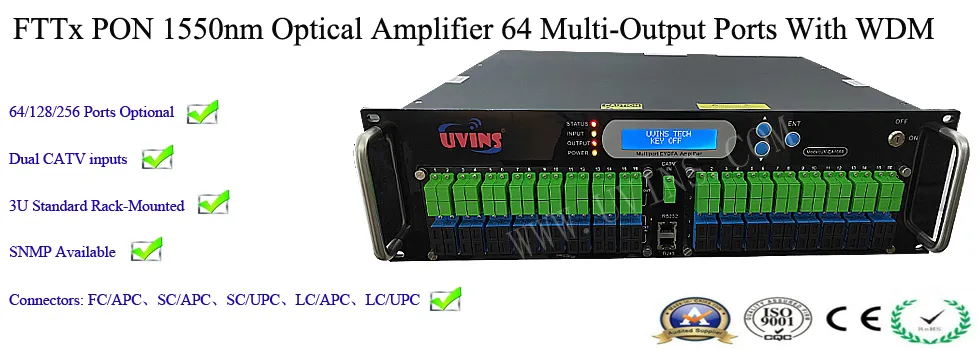

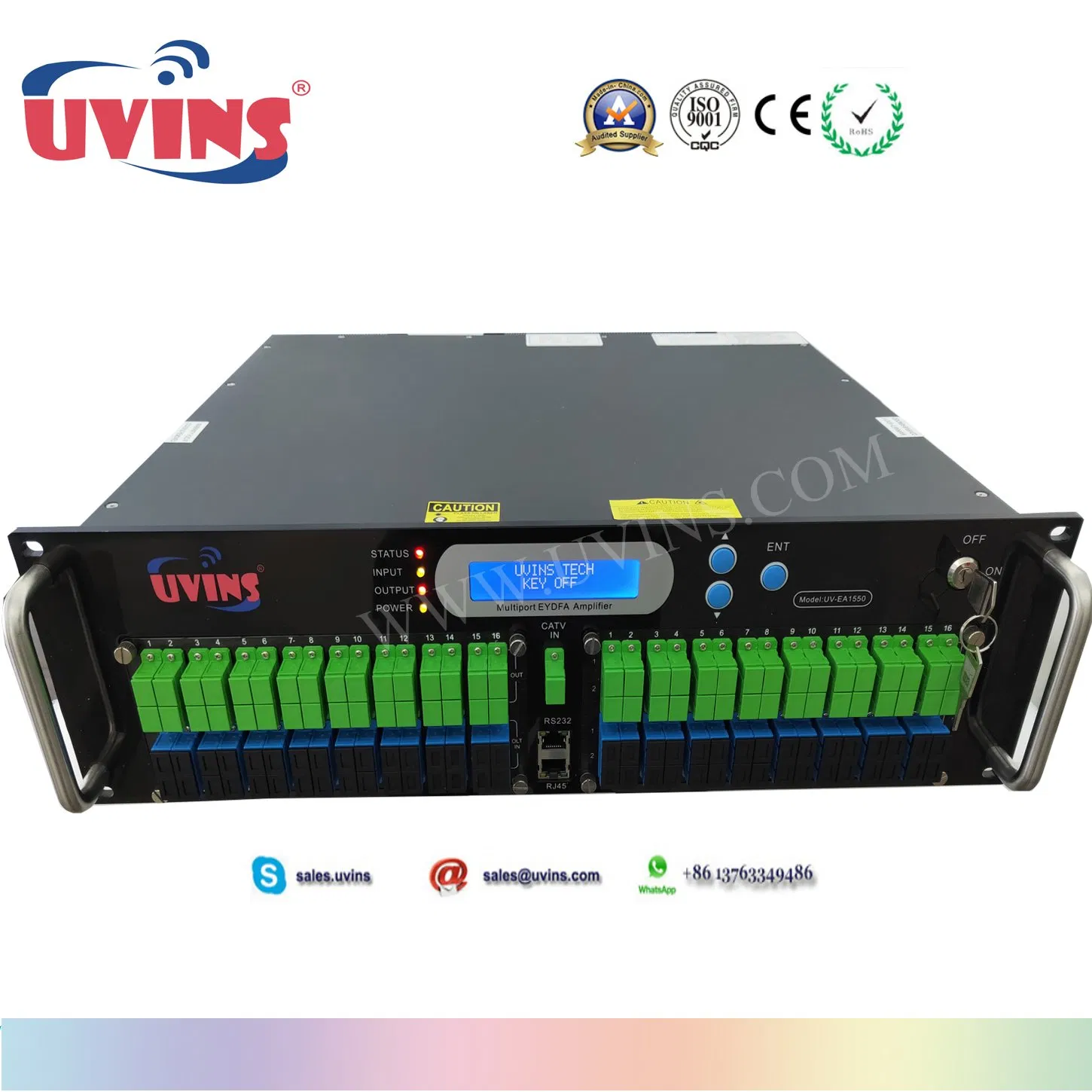

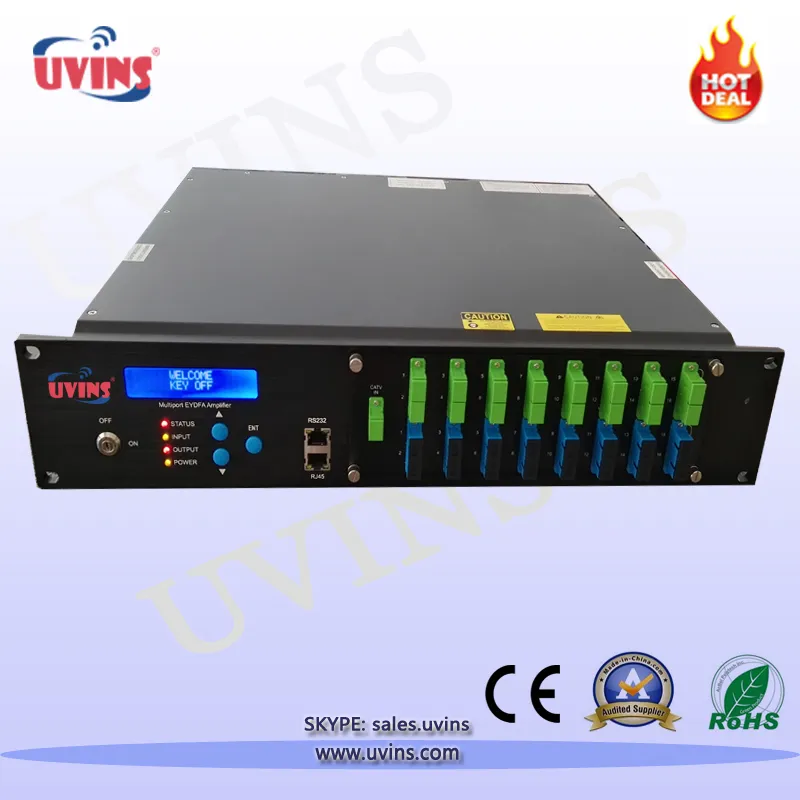

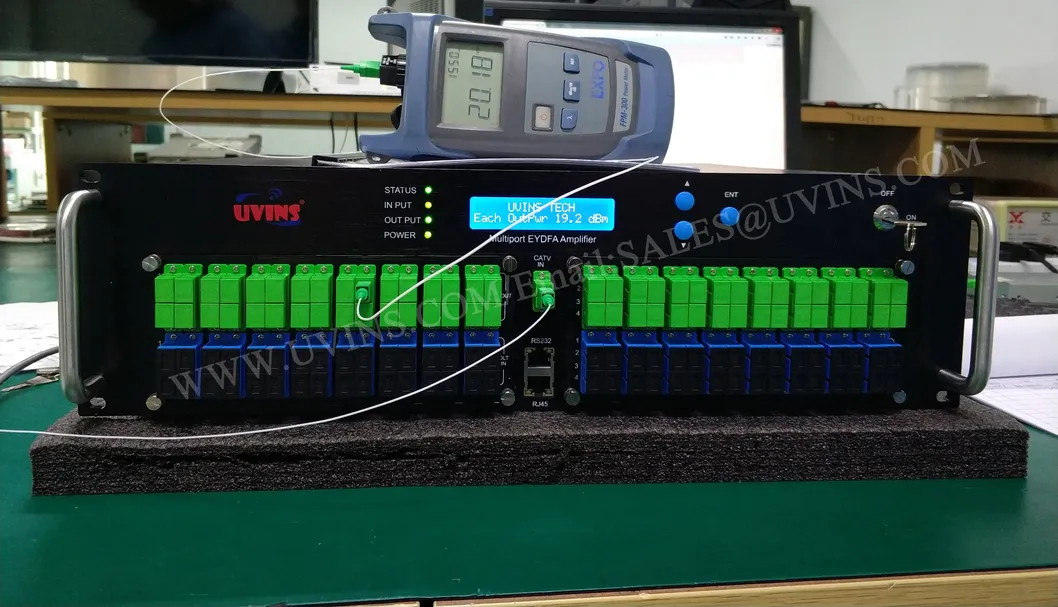

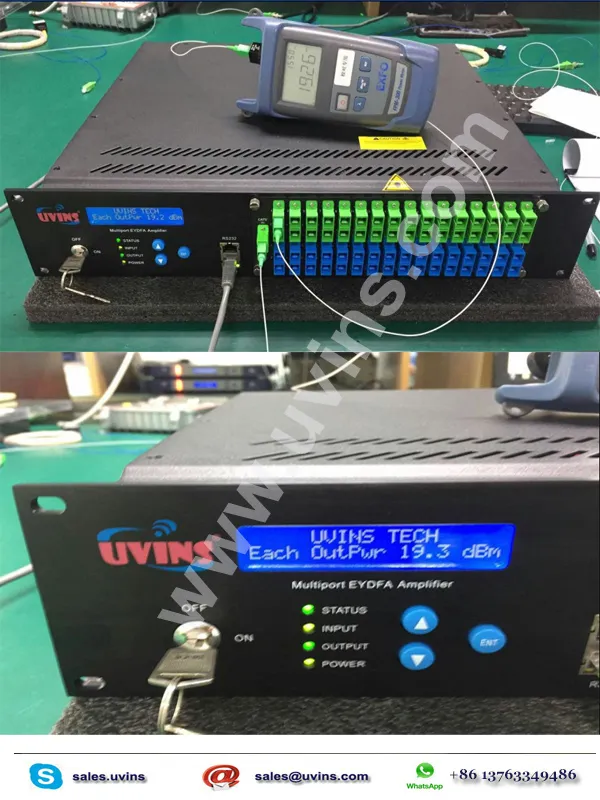

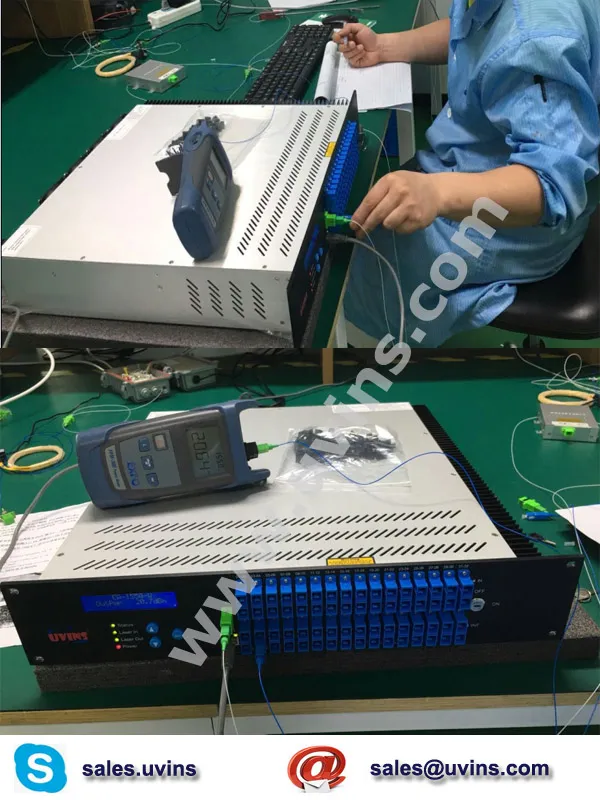

1550 Nm Pon Eydfa with Wdm/ Erbium Doped Optical Fiber Amplifier High Output Power
EA-1550-W high output EDFA Adopts EYDFA technology and mostly used in triple-play and FTTH solution; built-in well-performed CWDM in each output port and every external up-link optical port of optical amplifier can conveniently connect with OLT PON port. Each 1550nm (CATV)'s output optical port......
Send Inquiry
Product Description

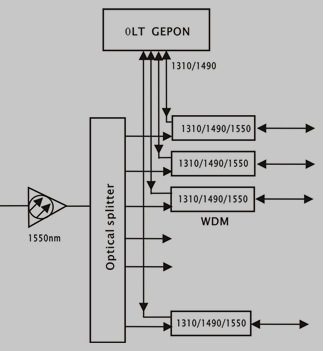

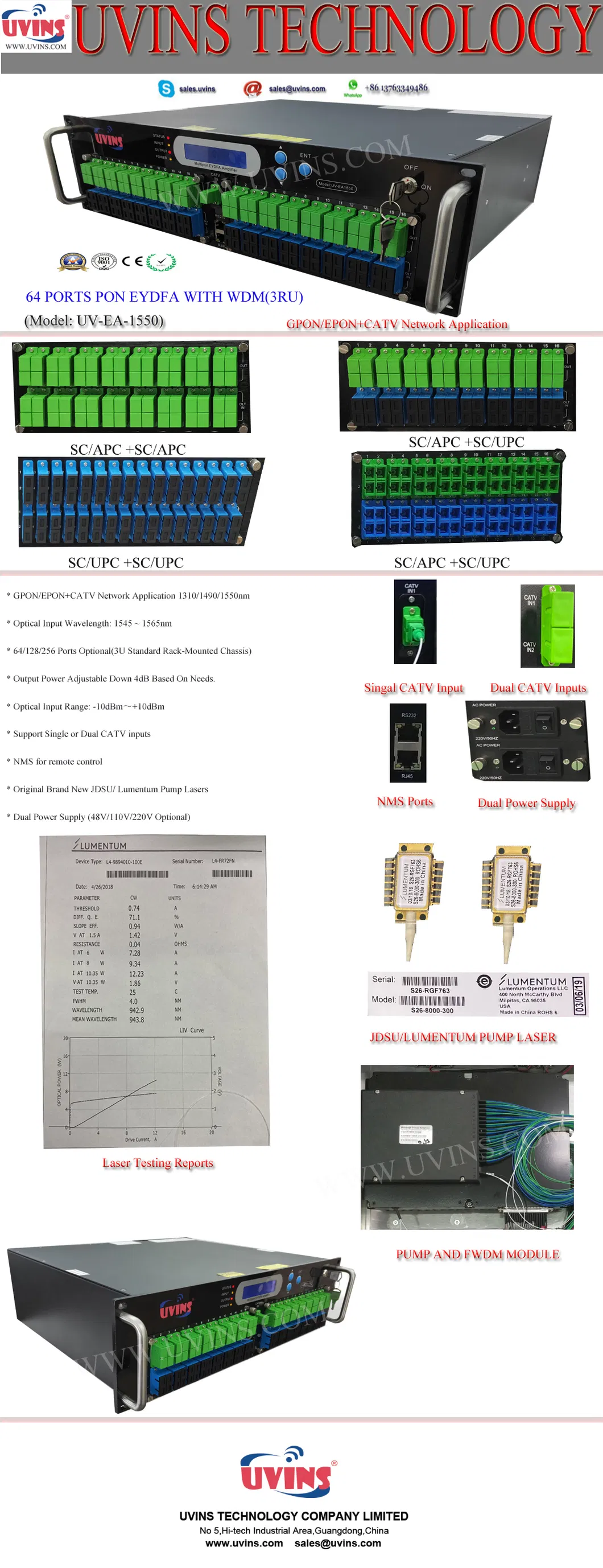

EA-1550-W high output EDFA Adopts EYDFA technology and mostly used in triple-play and FTTH solution; built-in well-performed CWDM in each output port and every external up-link optical port of optical amplifier can conveniently connect with OLT PON port. Each 1550nm (CATV)'s output optical port multiplex 1310/1490n's data stream, in order to reduce the quantity of the component and improve the index and reliability of the system which save more cost in the network . This type can be compatible with any FTTx PON Technology. It offers a flexible and low-cost solution for three-network integration and Fiber to the Home.
Features:
* Adopts EYDFA technology
* support triple-play and FTTH;
* Support PON inputs
* Maximum output up to 41dBm&Multi-outputs support;
* Support PON inputs
* Support 1310nm/1490nm/1550nm output in one single fiber;
* Adopts Original JDSU,Oclaro and Fitel PUMP Laser;
* Support SNMP
Technical Specification:
Model(EA-1550-W) | -27 | -28 | -29 | -30 | -31 | -32 | -33 | -34 | -35 | -36~38 |
Output (dBm) | 27 | 28 | 29 | 30 | 31 | 32 | 33 | 34 | 35 | 36~38 |
CATV Input power (dBm) | -3~10 | |||||||||
CATV Wavelenght Range | 1530~1565 | |||||||||
OLT Input | 1310/1490 | |||||||||
Output ports Available | 8,16,32,64 | |||||||||
Output power stability (dB) | <±0.2 | |||||||||
C/N (dB) | ≥45 | |||||||||
CSO (dB) | ≥63 | |||||||||
CTB (dB) | ≥63 | |||||||||
Bias oscillation sensitivity(dB) | <0.2 | |||||||||
Bias oscillation dispersio(PS) | <0.5 | |||||||||
Optical return loss (dB) | ≥45 | |||||||||
Fiber connector | FC/APC,SC/APC | |||||||||
Noise ratio (dB) | <5.0(0dBm optical input) | |||||||||
connector | RJ45(SNMP) ,RS232 | |||||||||
Power loss (W) | ≤150 | |||||||||
Working Voltage (V) | 220V(90~265),DC-48V | |||||||||
Working Temp (ºC) | -20~85 | |||||||||
size (mm) | 530(L)×486(W)×88(H) | |||||||||
Total Output (dBm) | Total Output (mW) | No. of Output
| Each Output (dBm) |
26 | 400 | 4 | 18.5 |
8 | 15.0 | ||
27 | 500 | 4 | 19.5 |
8 | 16.0 | ||
28 | 630 | 4 | 20.5 |
8 | 17.0 | ||
29 | 800 | 4 | 21.5 |
8 | 18.0 | ||
30 | 1000 | 8 | 19.0 |
16 | 15.5 | ||
31 | 1250 | 8 | 20.0 |
16 | 16.5 | ||
32 | 1600 | 8 | 21.0 |
16 | 17.5 | ||
33 | 2000 | 8 | 22.0 |
16 | 18.5 | ||
34 | 2500 | 16 | 19.5 |
32 | 16.0 | ||
35 | 3200 | 16 | 20.5 |
32 | 17.0 | ||
36 | 4000 | 16 | 21.5 |
32 | 18.0 | ||
37 | 5000 | 16 | 22.5 |
32 | 19.0 |
