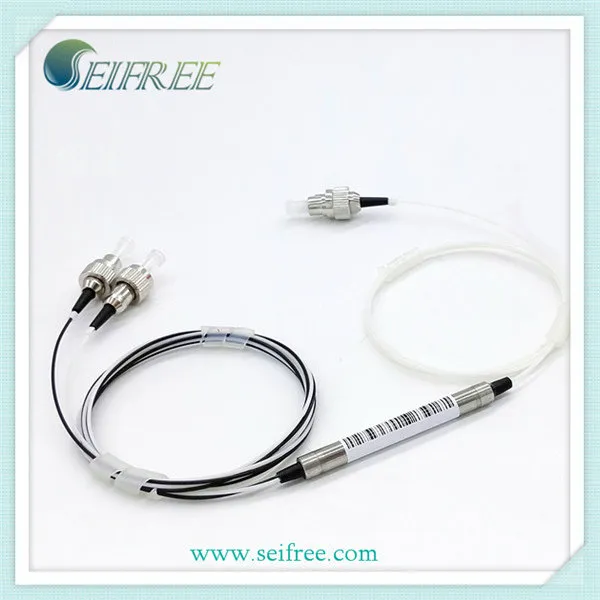

1550 Nm Fiber Optic Circulator, Apply to OTDR
DescriptionPolarization independent optical circulator based on polarization Beam Splitting Prism technology. It's incoming signal from port 1 to port 2 and another signal from ports 2 to port3. The devices are designed and manufactured to meet Telcordia GR-1209-CORE r......
Send Inquiry
Product Description
Description
Polarization independent optical circulator based on polarization Beam Splitting Prism technology. It's incoming signal from port 1 to port 2 and another signal from ports 2 to port3. The devices are designed and manufactured to meet Telcordia GR-1209-CORE requirements and RoHS compliant.
Applications
Bi-Directional Systems
EDFA OADM Equipment
WDM Systems
Specification
Polarization independent optical circulator based on polarization Beam Splitting Prism technology. It's incoming signal from port 1 to port 2 and another signal from ports 2 to port3. The devices are designed and manufactured to meet Telcordia GR-1209-CORE requirements and RoHS compliant.
Applications
Bi-Directional Systems
EDFA OADM Equipment
WDM Systems
Specification
| Operating Wavelength(nm) | 1310 | C Band | L Band | Parameter | Unit | Value |
| Band Wide(nm) | ±15 | Fiber Type | / | SMF-28e | ||
| Insertion Loss 1->2 | <0.8 | Directivity | dB | >50 | ||
| Insertion Loss 2->3 | <0.8 | Return Loss | dB | >50 | ||
| Isolation @λc | >40 | Pigtail Dia. | mm | 0.25 /0.9 / 2 / 3 | ||
| Isolation @λall | >35 | Pigtail Length | cm | >50 | ||
| Insertion Loss Temperature Sensitivity (dB/ºC) | <0.005 | Power Handling | mw | <500 | ||
| Wavelength Temperature Shifting(nm/ºC) | <0.002 | Operating Tem. | ºC | -0~ +70 | ||
| PDL(dB) | <0.12 | Storage Tem. | ºC | -40~ +85 | ||
| PMD(dB) | <0.1 | / | ||||
