1310 or 1550 or L-Band Polarization-Insensitive Optical Isolator
1310 or 1550 or L-Band Polarization-insensitive Optical Isolator Description Polarization-insensitive Optical Isolator,Operating Wavelength:1310 or 1550 or L-Band,Isolator Type:Single Stage OR Dual Stage,Wavelength:1310nm OR 1480nm OR 1550nm OR L-Band,Grade:Premium OR A Grade,Package:5.5×......
Send Inquiry
Product Description

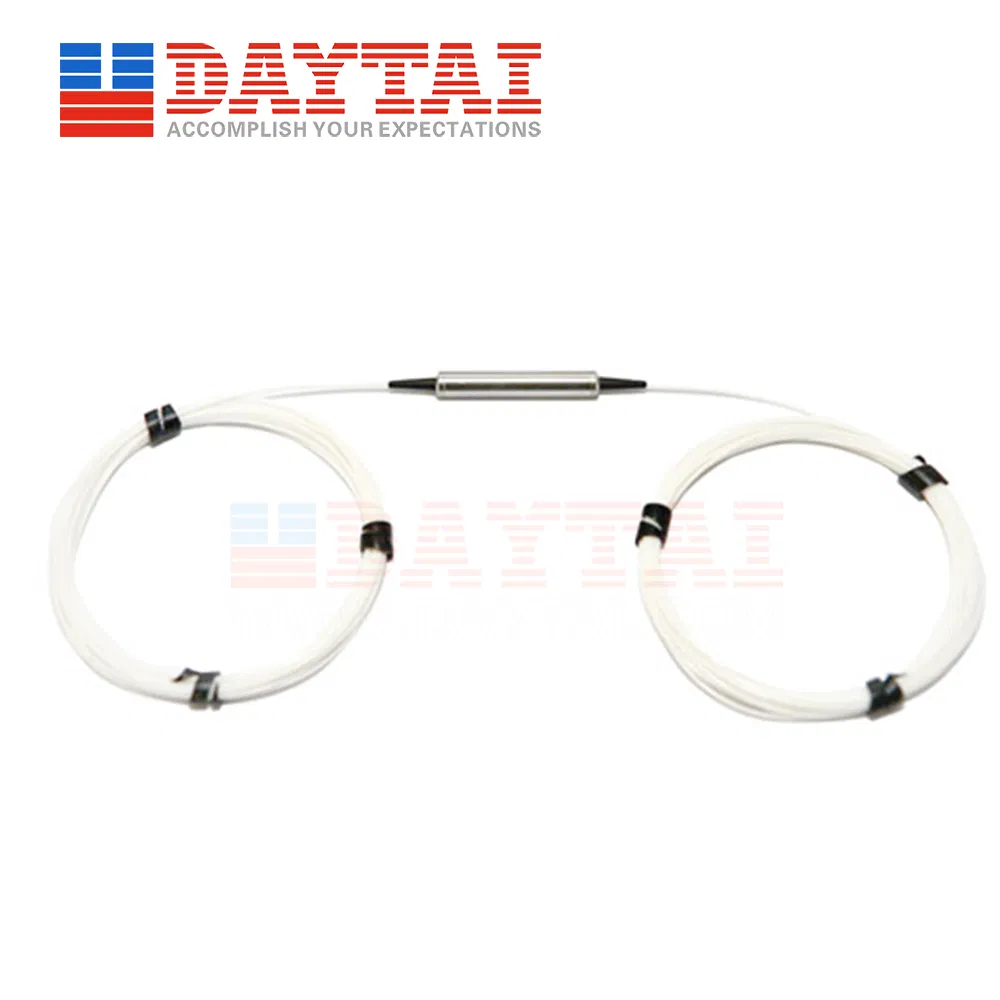

1310 or 1550 or L-Band Polarization-insensitive Optical Isolator
Features

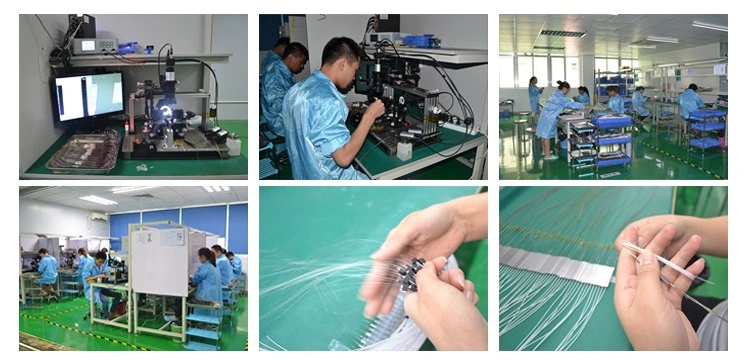

Our Workshop
* As a world class manufacturer we can ensure you are getting world class quality at a competitive price.
* We pride ourselves on earning our clients repeat business. We ensure customer satisfaction by ensuring all out products meet world ISO 9001, SGS, CE standards and best manufacturing practices.
* We also pride ourselves by ensuring we give you our client the best service and experience dealing with a reputable manufacturer.
Customer first, service foremost
If you have any other questions, please feel free to contact with me.
I will reply you at my first time.
Thank you for visiting our products, have a good day:)
Description
Polarization-insensitive Optical Isolator,Operating Wavelength:1310 or 1550 or L-Band,Isolator Type:Single Stage OR Dual Stage,Wavelength:1310nm OR 1480nm OR 1550nm OR L-Band,
Grade:Premium OR A Grade,Package:∅5.5×L35 OR ABS Box Module OR Specify,Fiber Diameter:250μm OR 900μm OR 2.0mm OR 3.0mm,Fiber Length:1.0m OR 1.5m OR 2.0m
OR Specify,Connector:Without,SC/APC,SC/UPC,FC/APC,FC/UPC,LC/APC,LC/UPC,ST OR Specify.
Grade:Premium OR A Grade,Package:∅5.5×L35 OR ABS Box Module OR Specify,Fiber Diameter:250μm OR 900μm OR 2.0mm OR 3.0mm,Fiber Length:1.0m OR 1.5m OR 2.0m
OR Specify,Connector:Without,SC/APC,SC/UPC,FC/APC,FC/UPC,LC/APC,LC/UPC,ST OR Specify.
Features
⊙High isolation
⊙High return loss
⊙Low insertion loss
⊙Low polarization sensitivity
⊙High return loss
⊙Low insertion loss
⊙Low polarization sensitivity

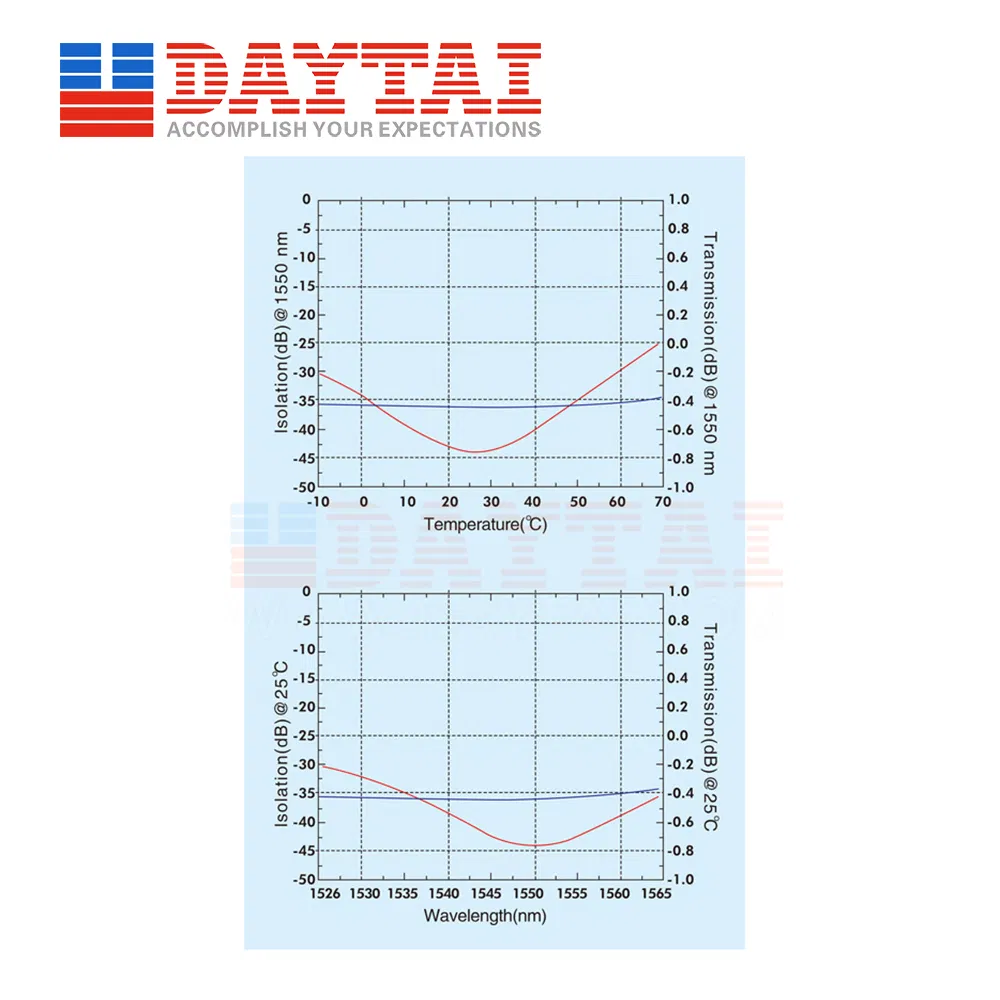

Specification
| Parameter | P Grade | A Grade | |
| Operating Wavelength (nm) | 1310 or 1550 or L-Band | ||
| Bandwidth (nm) | ±15 | ||
| Typical Isolation (dB) | 40 | 40 | |
| Minimum Isolation*(dB) | 30 | 28 | |
| Typical Insertion Loss**(dB) | 0.35 | 0.45 | |
| Maximum Insertion Loss**(dB) | 0.5 | 0.7 | |
| Return loss(In/Out)(dB) | ≥65/ 55 | ≥55 / 55 | |
| PDL(dB) | ≤0.05 | ≤0.1 | |
| PMD(dB) | 0.2(0.05 available upon request) | ||
| Operating Temperature(°C) | -10~+75 | ||
| Stotage Temperature (°C) | -40~+85 | ||
| Fiber Type | Corning SMF-28 | ||
| Fiber Length(Min.) | 1m or Specify | ||
| Dimension(mm) | ∅5.5xL35 | ||
| Power Handing(mW) | 300 | ||
