1310 1550nm Optico Product FTTH Passive Node with Wdm CATV Nodo
Technical parametersFTTH-OR1FTTH-OR2Wavelength1200~1600nm&1550nmInput optical power+2dBm~-7dBm(Analog) +2dBm~-10dBm(Digital)Optical return loss>45dBOptical connectorSC/APC & SC/PCBandwidth40~1006MHzFlatness±1.5dB@40~1006MHzRF output reflection≥16dB@40~550MHz; ≥14d......
Send Inquiry
Product Description
| Technical parameters | FTTH-OR1 | FTTH-OR2 |
| Wavelength | 1200~1600nm&1550nm | |
| Input optical power | +2dBm~-7dBm(Analog) +2dBm~-10dBm(Digital) | |
| Optical return loss | >45dB | |
| Optical connector | SC/APC & SC/PC | |
| Bandwidth | 40~1006MHz | |
| Flatness | ±1.5dB@40~1006MHz | |
| RF output reflection | ≥16dB@40~550MHz; ≥14dB@550~1006MHz | |
| Output level | 61~62dBuV (0dBm) | 60±1 (Pin=0dBm) |
| Output port | 1 | |
| RF output impedance | 75Ω | |
| C/N(note 1) | ≥51 | |
| CTB(note 1) | ≥65 | |
| CSO(note 1) | ≥62 | |
| Working temperature | -25ºC ~+45ºC | |
| Product size | 63*23*15mm | 50*16*14mm |

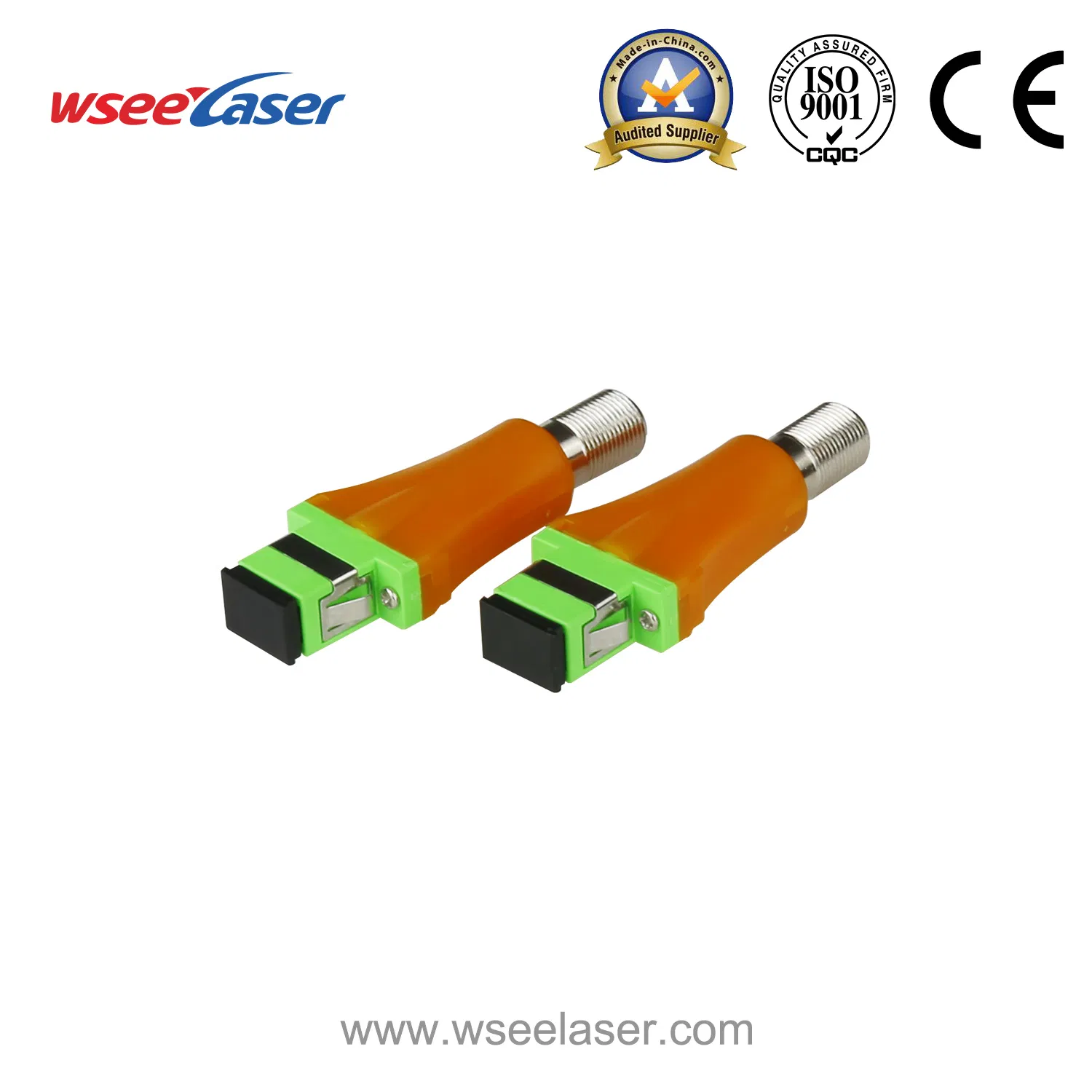

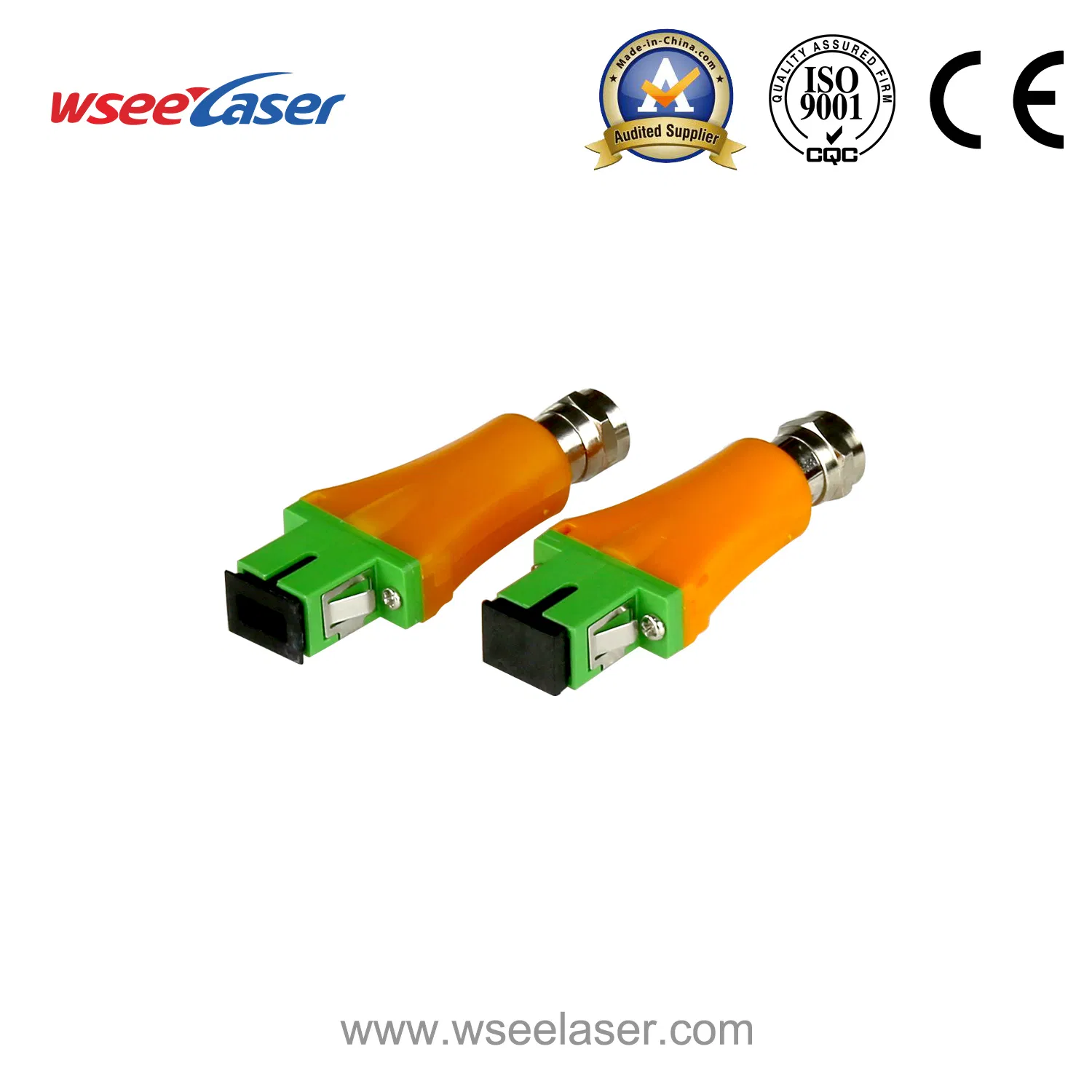

The device is a home optical receiver with optical fiber access as the final target. It is suitable for FTTH (fiber to the home)
network optical fiber user access terminals to realize analog or digital signal input.

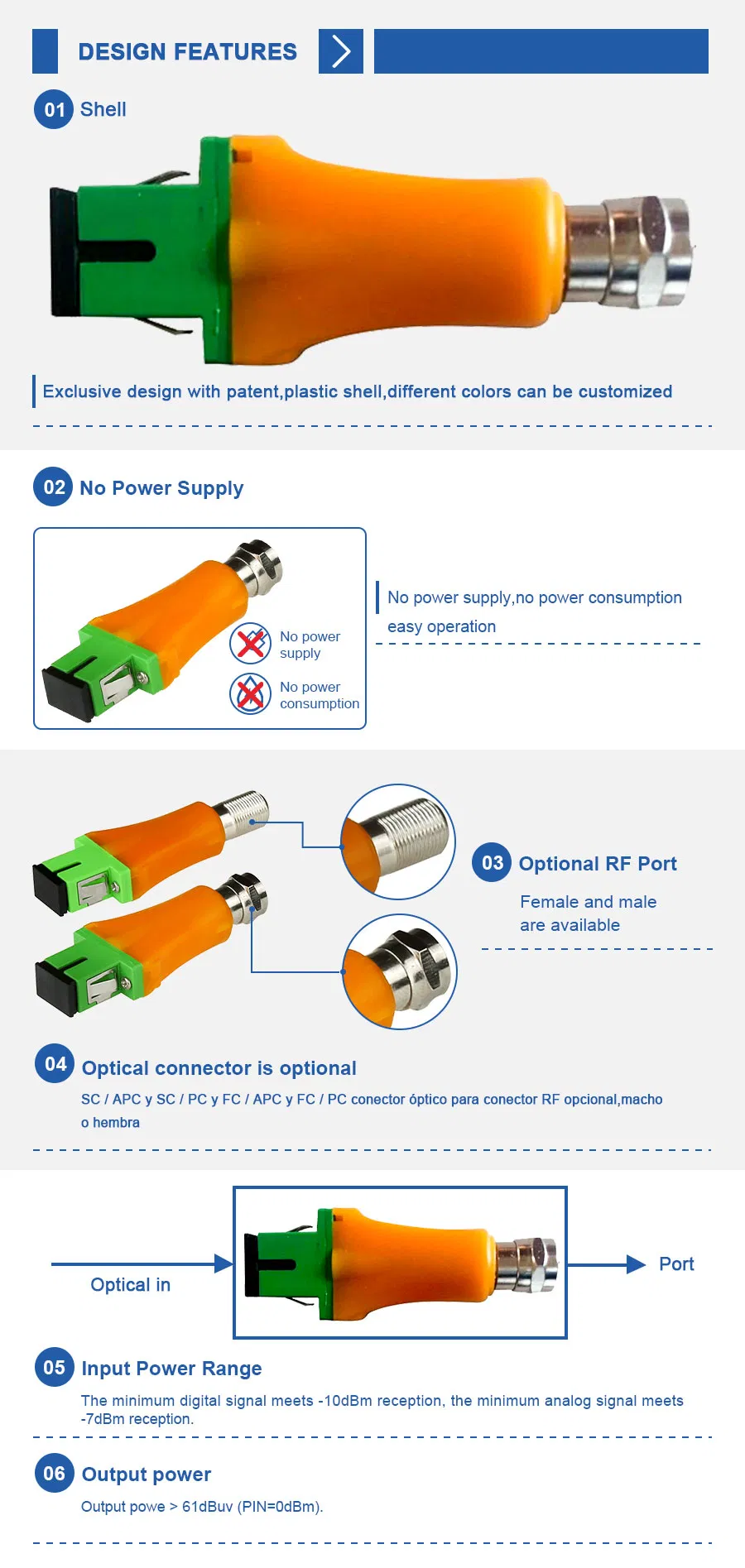

- High quality plastic shell.

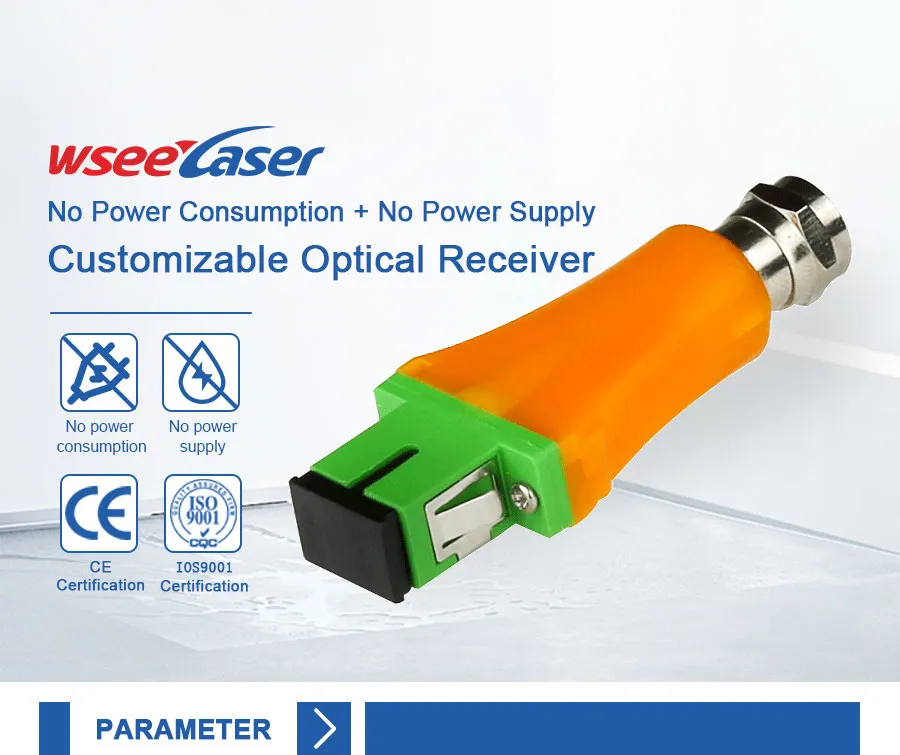

- No power supply , no consumption.
- The minimum digital signal meets -10dBm reception, the minimum analog signal meets -7dBm reception.
- Output powe > 61dBuv (PIN=0dBm).
- SC/APC &SC/PC&FC/APC&FC/PC optical connector for optional, male or female RF connctor.
