Product Description

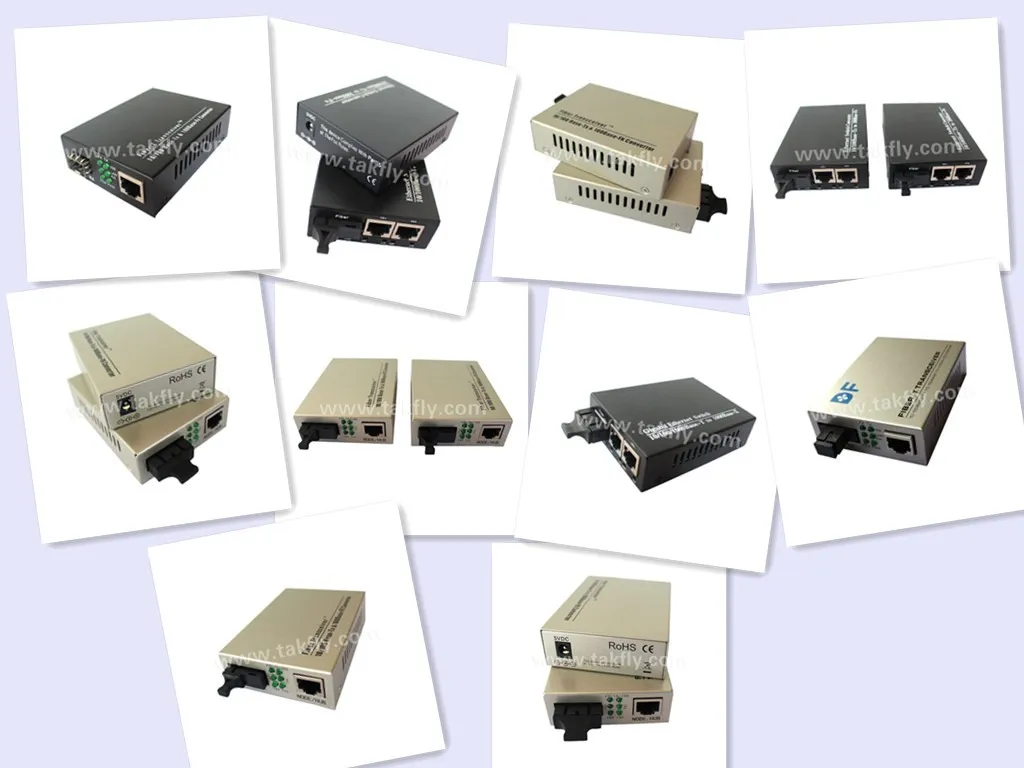

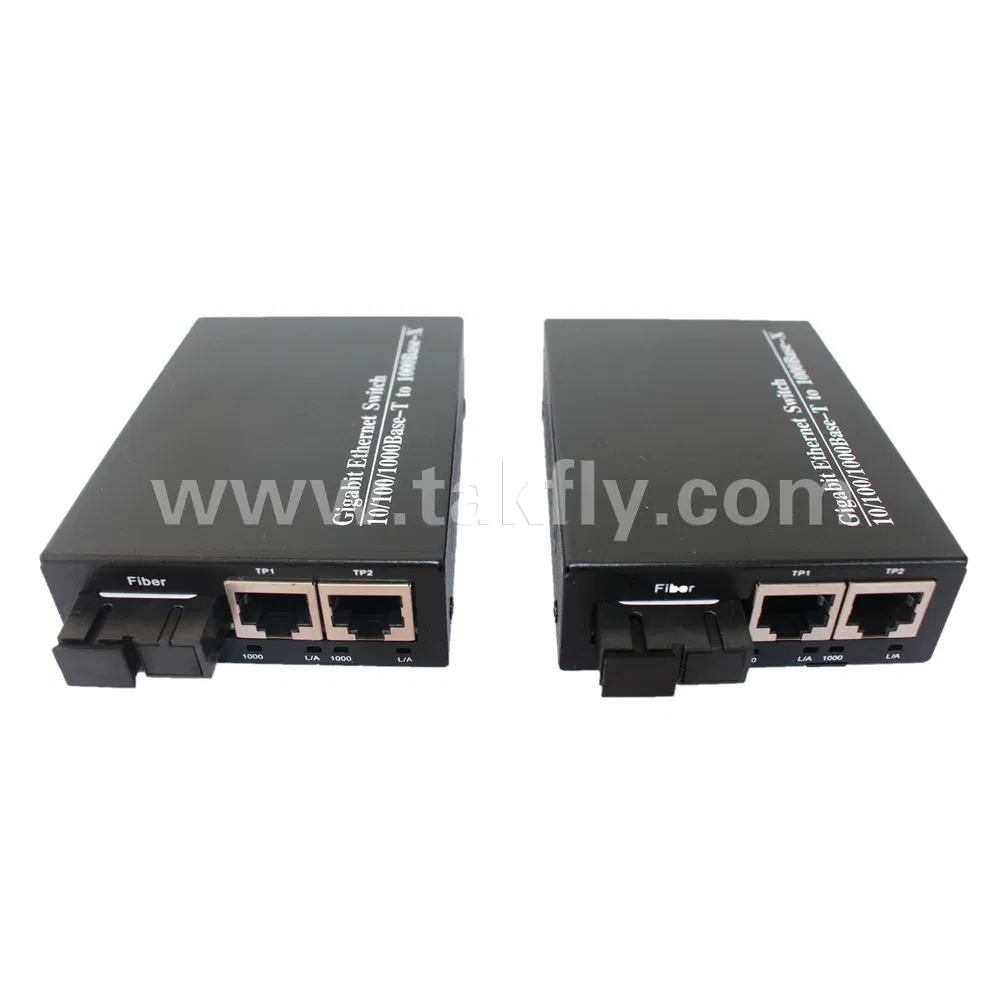

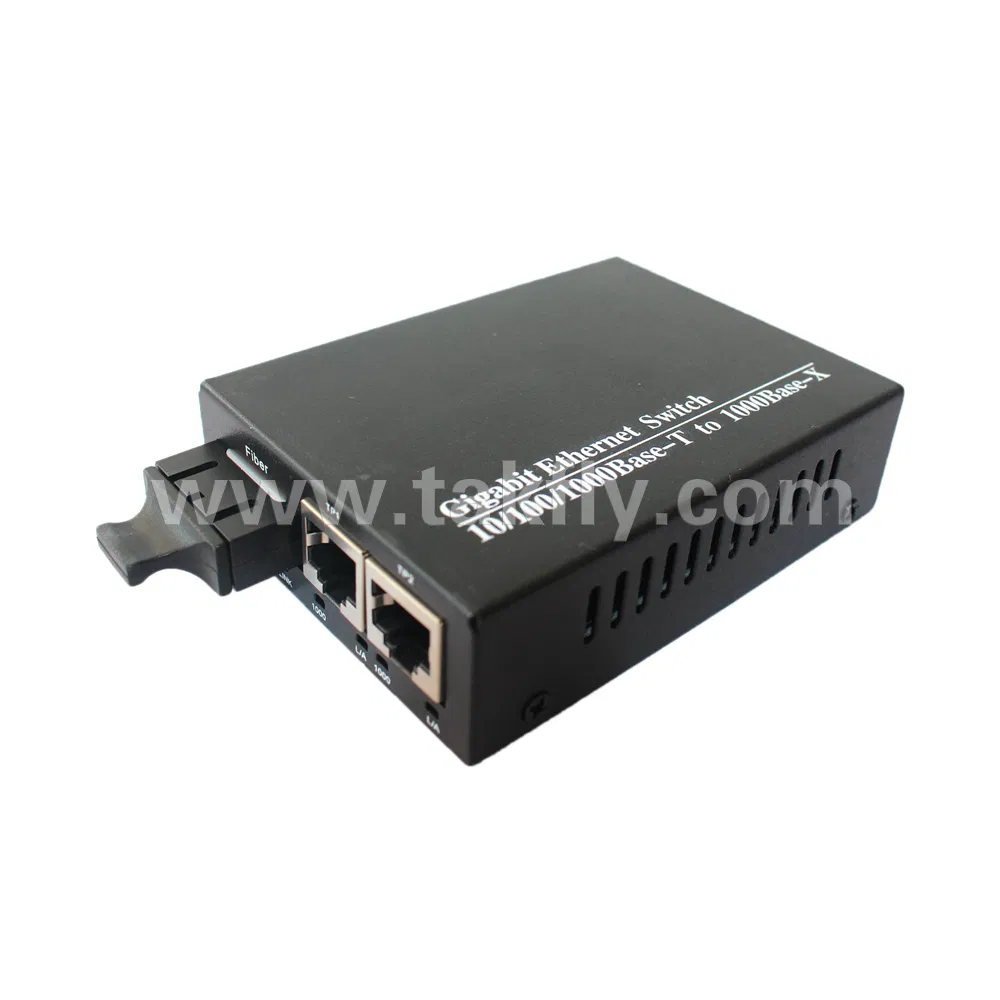

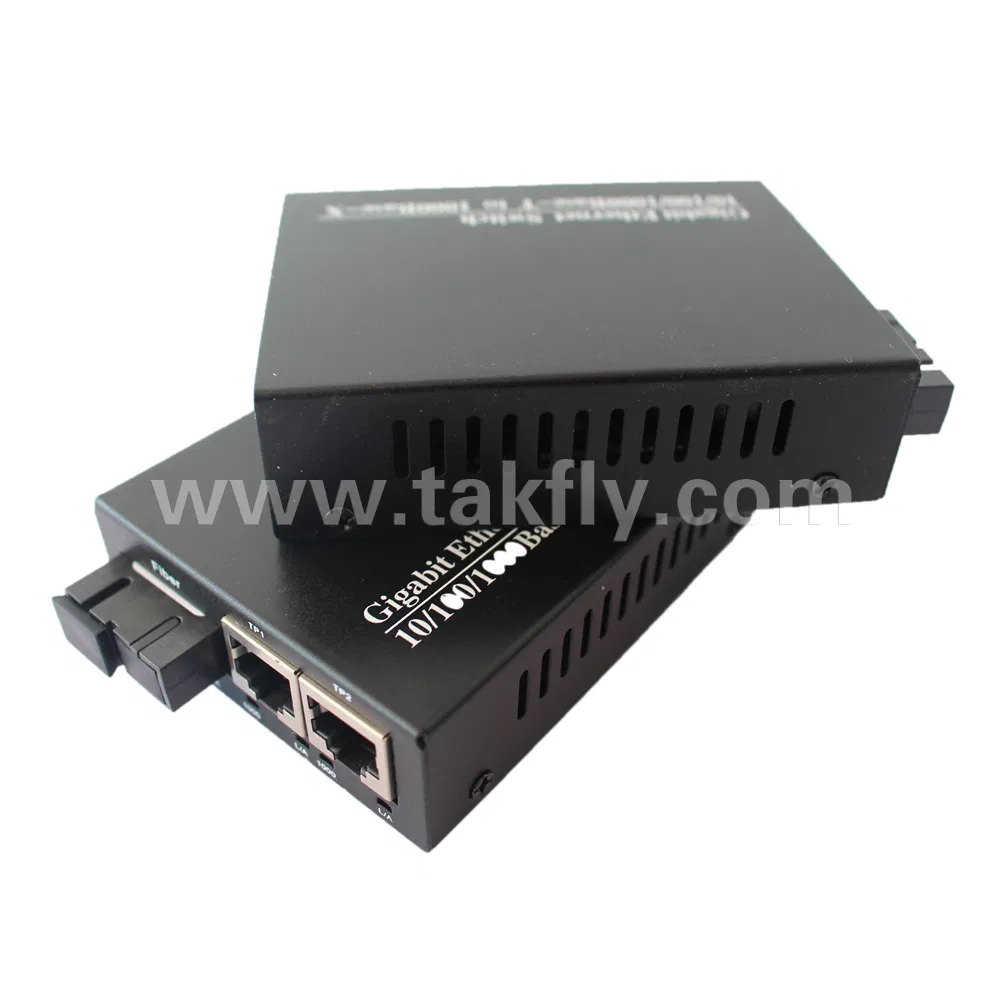

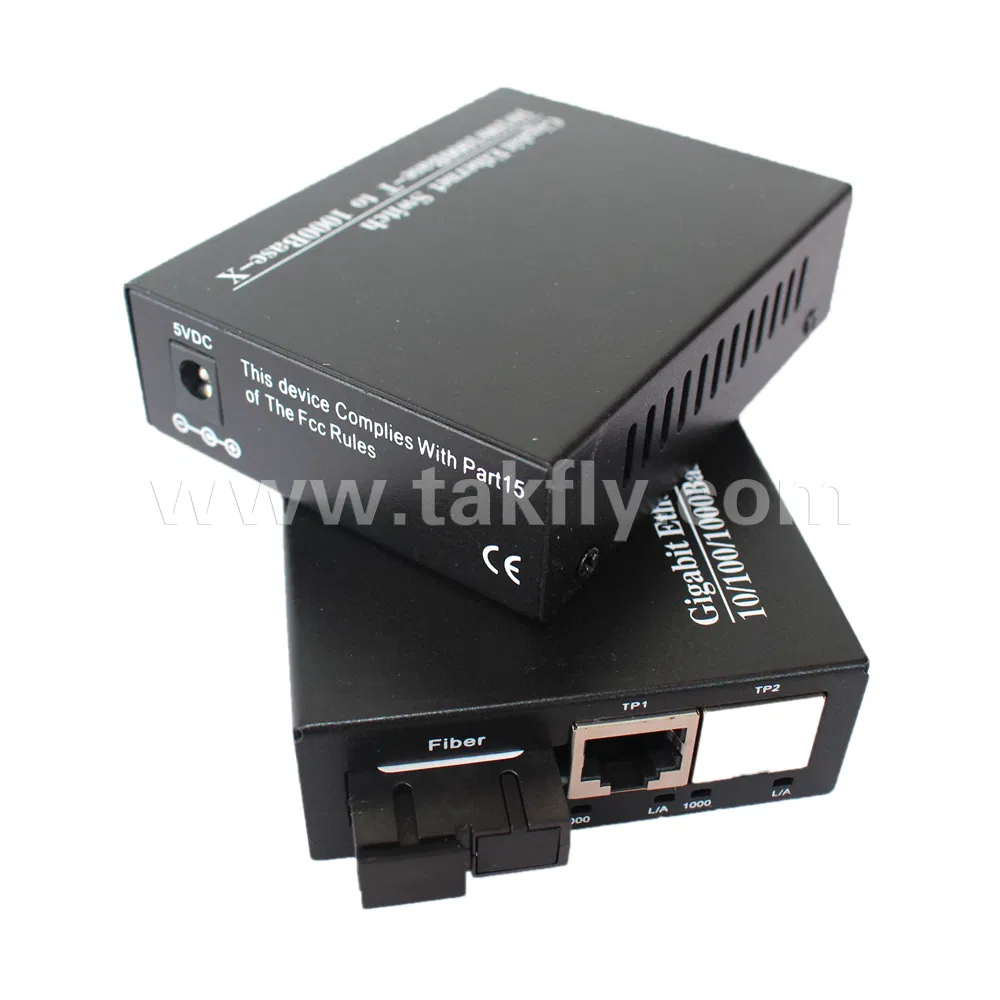

1000M Unmanaged 40KM 80km Fiber Media Converter
1000m Unmanaged 40km 80km Fiber Media Converter

Fiber optic media converter---Overcome the distance limitations of traditional network cables with fiber media converters
These converters connect different types of network cabling and help you extend networks between buildings and over longer distances.

Description:
The MC series fiber optic media converters are a full line of products that transparently connects copper network devices to fiber optic network cabling.
Fiber media converter support Ethernet and Gigabit Ethernet twisted-pair electrical signal to the 100Base-FX and 1000Base-FX light signal interconversion. It expands the network transmitting range limit from the copper wire 100meters to 2km (MM optical fiber),120km (SM optical fiber).

Feature:
Compliant with IEEE802.3 and IEEE802.3u 100BaseTX/FX standards
Extends standard Ethernet cable limits
Autosensing MDI/MDIX Crossover for Network Port
Fully transparent to the network
Supports any network device, including IP cameras
Easy to install, no set up required.
No MAC or IP addressing required.
LED indicators for network signals, link status and power

Technical specification

Warranty Information
Warranty	3-5 years, or more
Hardware
Industry Standards	IEEE 802.3 10BASE-T
	IEEE 802.3u 100BASE-FX
	IEEE 802.3u 100BASE-TX
PoE	Optional
WDM	No
Performance
Fiber Operating Mode	Full-Duplex, half-duplex
Fiber Type	Single-Mode, multimode
Max Transfer Distance	80km, 20km, 40km
Maximum Data Transfer Rate	10/100/1000Mbps
MTBF	65,000 Hours
Wavelength	850nm/1310nm/1550nm
Connector(s)
Local Unit Connectors	1 - RJ-45 Female
Remote Unit Connectors	1 - Fiber Optic SC Duplex
Indicators
LED Indicators	1 - Ethernet Link & Activity (ON - Ethernet Link OK, Blinking - Activity on Ethernet Link)
	1 - FEF [Far End Fault](On - Fault Detected, Off - No Fault
	1 - Fiber Link & Activity (On - Fiber Link OK, Blinking - Activity on Fiber Link)
	1 - Full ( Full duplex)
	1 - Power
	1 - Speed rate
Power
Center Tip Polarity	Positive
Input Voltage	110-250V AC
Output Current	0.2A - 1.0A
Output Voltage	5V - 12V DC
Plug Type	M
Power Consumption (In Watts)	2.4
Power Source	AC Adapter Included
Environmental
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-10°C to 70°C (14°F to 158°F)
Color	Black / Golden
Enclosure Type	Plastic
Included in Package	1 - Media Converter 1 - Power Adapter 1 - User's Manual
