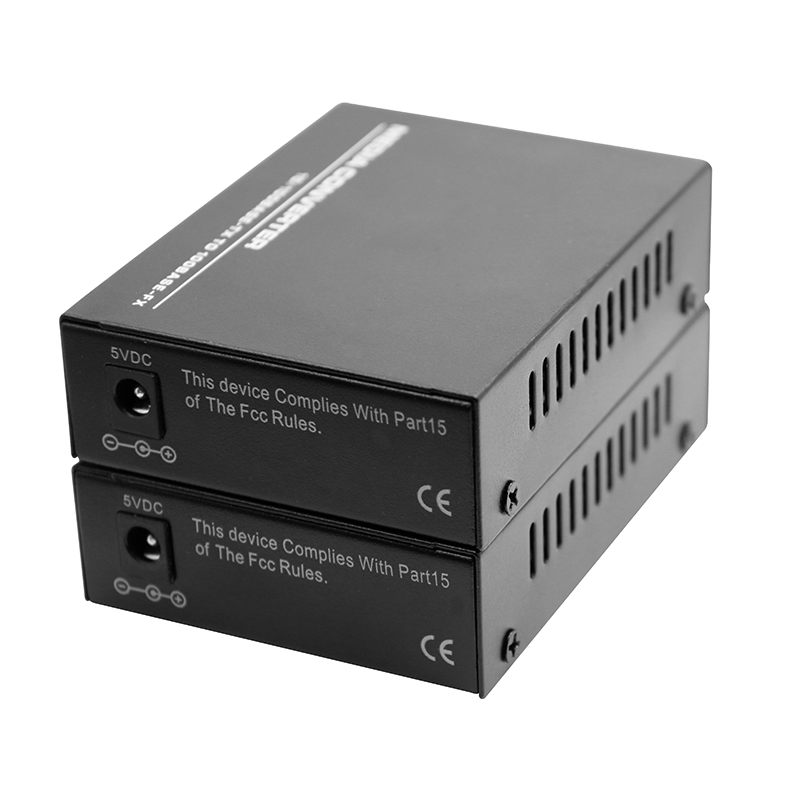

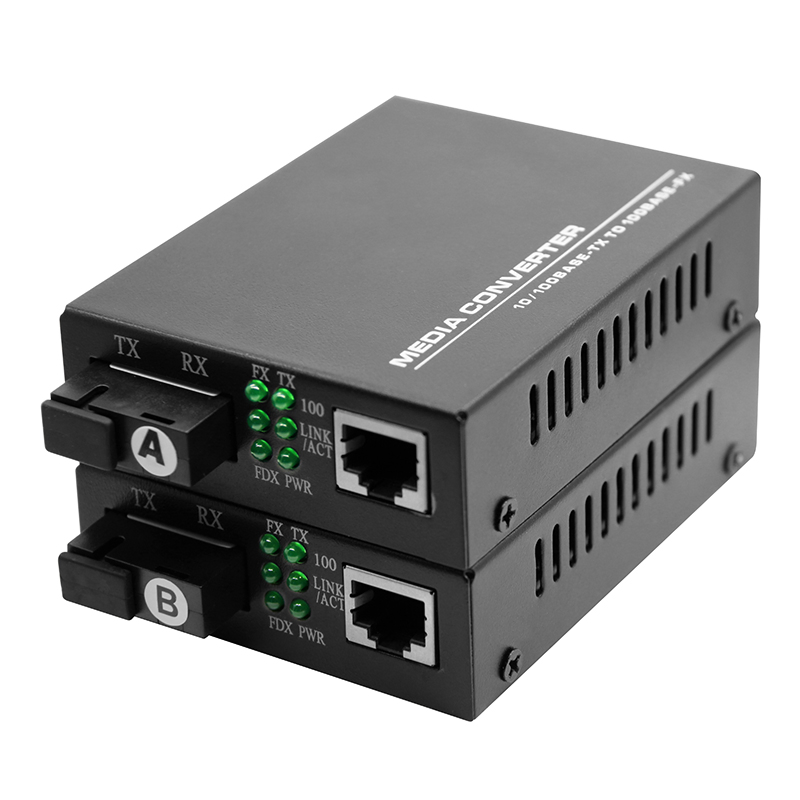

10/100m 1310 /1550nm Single Mode Single Fiber Wdm 20km Fiber Optic to RJ45 Media Converter
10/100m 1310/1550nm Single Mode Single Fiber Wdm 20km Fiber Optic To Rj45 Media Converter1.Product Description100Mbps Fiber Media Converter with 10/100M single mode Single Fiber Converter is the conversion equipment of Ethernet optical-electronic signals between 10/100M UTP interface (TX) and 100M F......
Send Inquiry
Product Description
10/100m 1310/1550nm Single Mode Single Fiber Wdm 20km Fiber Optic To Rj45 Media Converter
1.Product Description

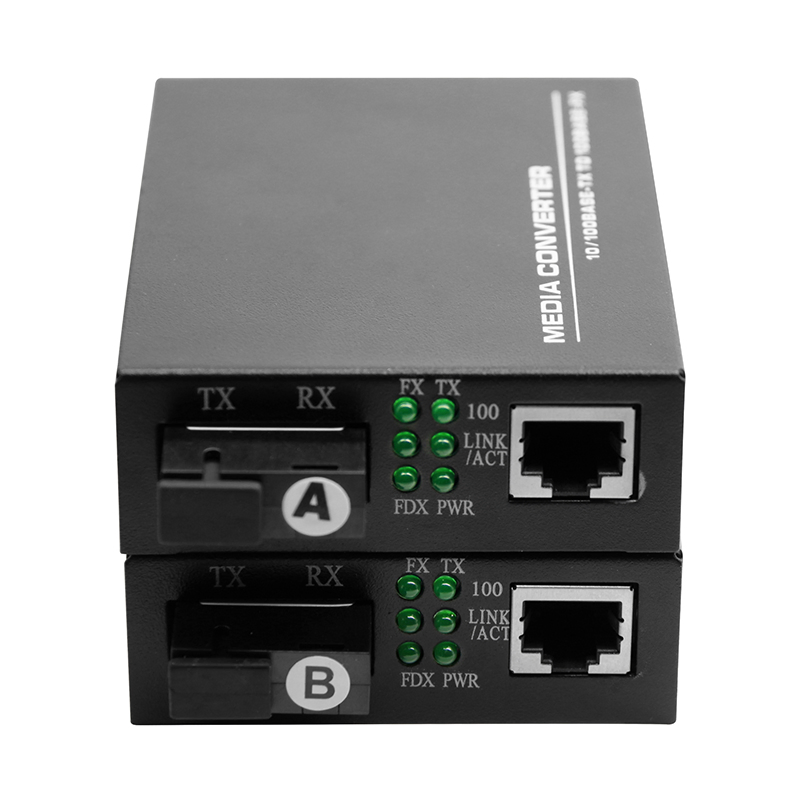

100Mbps Fiber Media Converter with 10/100M single mode Single Fiber Converter is the conversion equipment of Ethernet optical-electronic signals between 10/100M UTP interface (TX) and 100M Fiber interface (FX). The traditional 10/100M Ethernet can be extended to the distance of 100km through Single Optical Fiber link. The performance and quality of the products are excellent because of adopting latest IC from Taiwan. It must be used in couples, because the transmitted optical differs from the receive optical in wavelength. 6 Group LED indicated lights could fully monitor the working conditions of Converters. It is easy for end-users to observe the conditions of network. The Series product with reasonable price is especially designed for network end-users. There are also many other advantages such as isolation protection, good data security, working stability and easy maintenance.
2.Technical Parameters
| Technical Parameters for 10/100M Adaptive Fast Ethernet Optical Media Converter | ||
| Number of Network Ports | 1 channel | |
| Number of Optical Ports | 1 channel |  |
| Transmission Rate | self-adaptive 10/100M | |
| Protocol supported | IEEE802.3/IEEE802.3U etc. | |
| Fiber Type | Single Fiber | |
| Optic mode | Single Mode | |
| Transmission mode | half / full duplex | |
| Overall Power | 2.5W | |
| Ethernet interface | RJ-45 | |
| Optic interface | SC/FC/ST | |
| BER | < 1/1000000000 | |
| Power supply: | AC220V, DC5V/1A | |
| Working temperature | 0~50°C | |
| Storage temperature | -40°C~70°C | |
| Product size (L*W*H) | 94mm*70mm*26mm | |
| Packing size (L*W*H) | 165mm*130mm*90mm | |
| N.W/G.W(kg) | 0.14kg/piece 0.23kg/piece | |
