1 Fiber Single Mode Scapc Hoptic Connector Matching with Corning Optitap Connector
1 fiber single mode SCAPC Hoptic connector matching with corning optitap connector H connector assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.The H connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housi......
Send Inquiry
Product Description

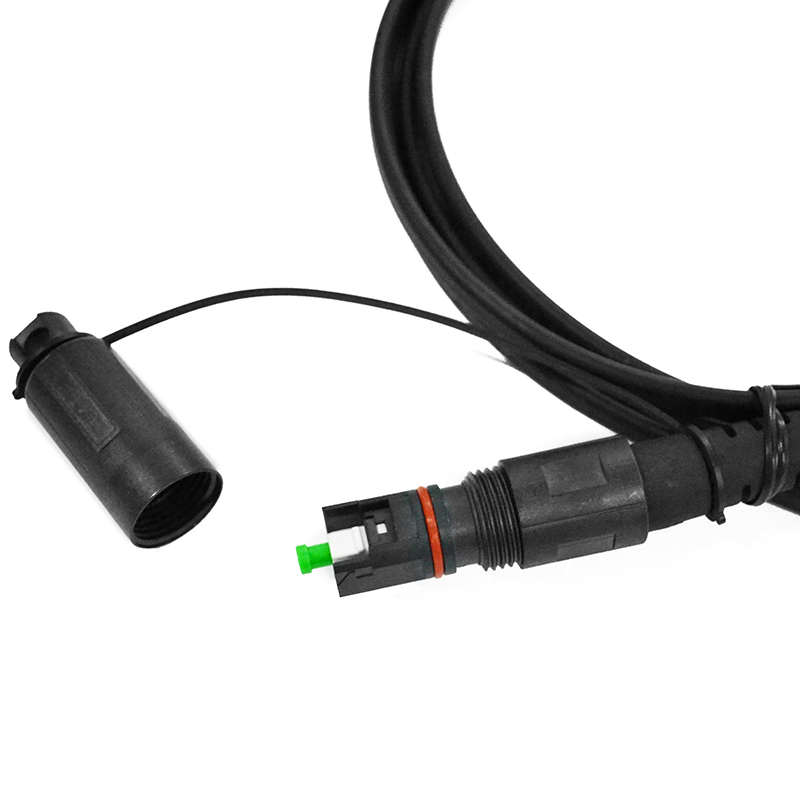

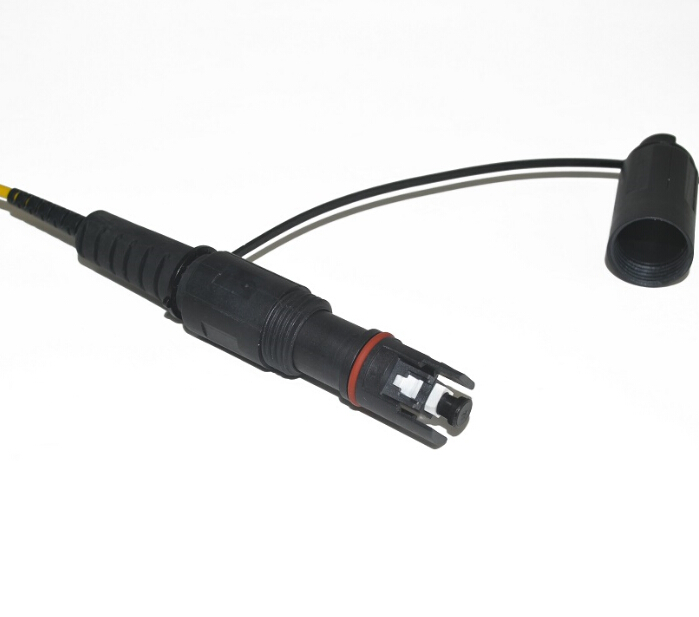

1 fiber single mode SCAPC Hoptic connector matching with corning optitap connector

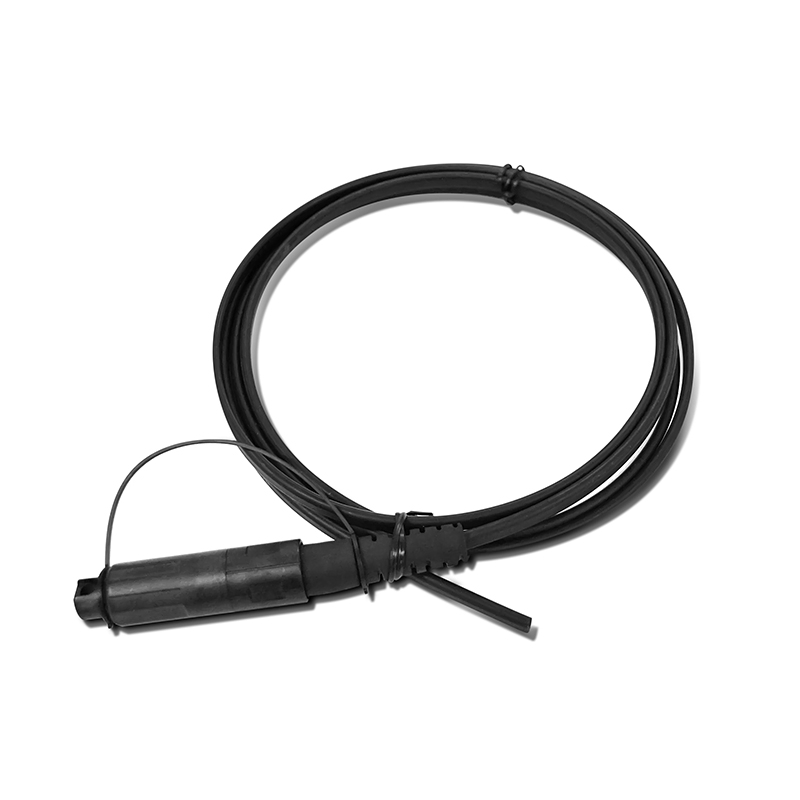

H connector assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.

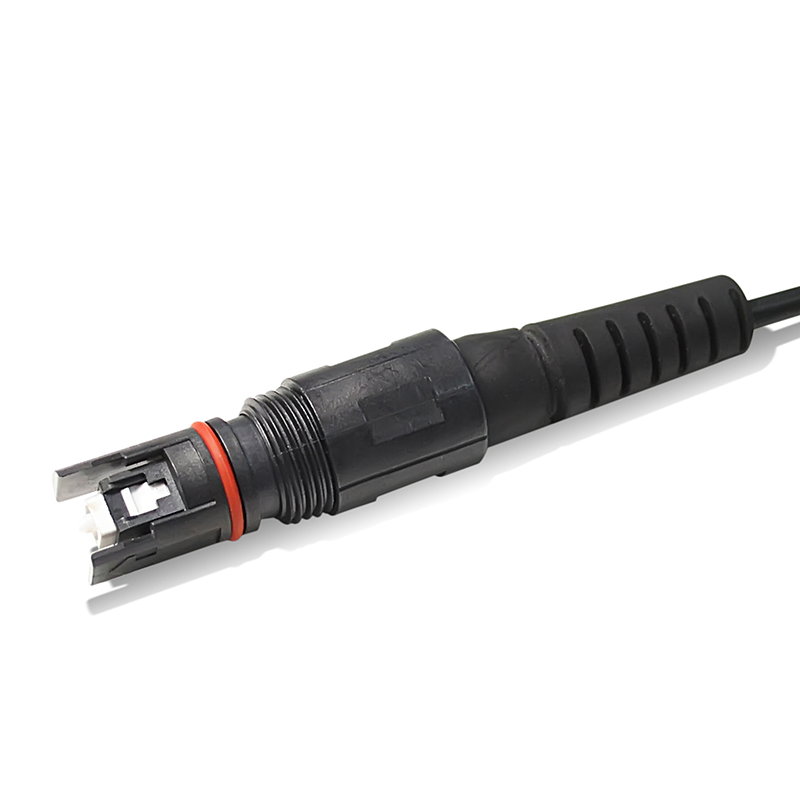

The H connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multi port terminal or in-line extension receptecal.
The SC/APC connectors mate to a standard adapter providing a common interface for FTTX applications
Features
Provides superior weather resistance for FTTA and other outdoor applications.
Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies
Suitable for FTTA and outdoor temperature extremes
Ensures functionality in harsh weather environments
Can be installs without special tooling
Threaded style coupling
Provides bend protection for installation and long term use
Specifications
Design and Test Criteria | Telcordia GR-3120 & GR-326 |
Connector Type | SC, LC |
Operation Temperature | -40°C to 70°C |
Insertion loss | <0.25dB |
Reflection loss | < - 50dB (PC); <-65dB (APC) |
RoHS | Free of Hazardous Substance |
Cable Specification:
Item | Data |
fiber | OS2,OM1,OM2,OM3,OM4 |
Tension member | Aramid Kevlar,Armoured Tube |
Max. attenuation | SM:≤0.34dB/km at 1310nm,≤0.20dB/km at 1550nm MM:≤0.60dB/km at 1300nm,≤2.3dB/km at 850nm |
Tensile resistance(short term) | 500N(no breakage) |
Crush resistance(short term/long term) | 1000N/100mm |
inflaming retarding | IEC 60332-3 |
Temperature | -40~+70°C |
Uvioresistant | PASS |
Authentication | Meet with RoHS &UL |

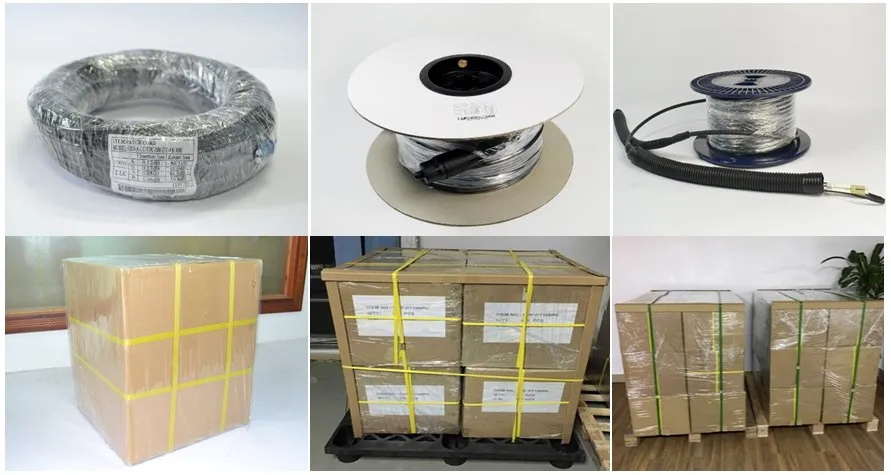

Packaging & Shipping
Company Information
Shenzhen DYS Fiber Optic Technology is a leading company in developing and manufacturing advanced fiber optic products,mainly offer fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper ,standard fiber optic jumper and PLC Splitter. DYS win the the honorary title of National High-tech enterprise by Shenzhen government in 2014.

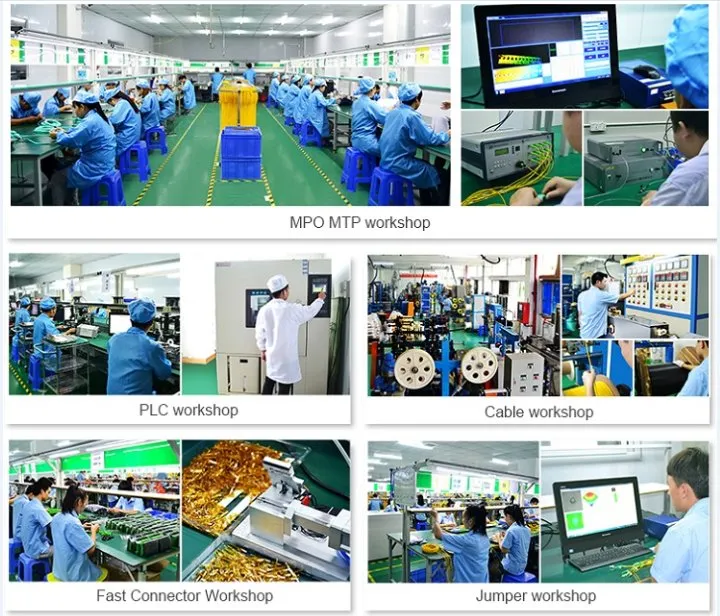

With years of experiences in the fiber optic industry, our factory is fully equipped over 3500 square meters and more than 18 non dust production lines .About 200 welltrained staff and engineers are contributing to our proud products. We have 4 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 8 production lines for standard jumper and 10 PLC Splitter production lines.
The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on.
All of our optical products are RoHS compliant and DYS also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, DYS fiber optic is looking forward to cooperate with you.
Contact us for more details about Price, Packing, Shipping and Discount
