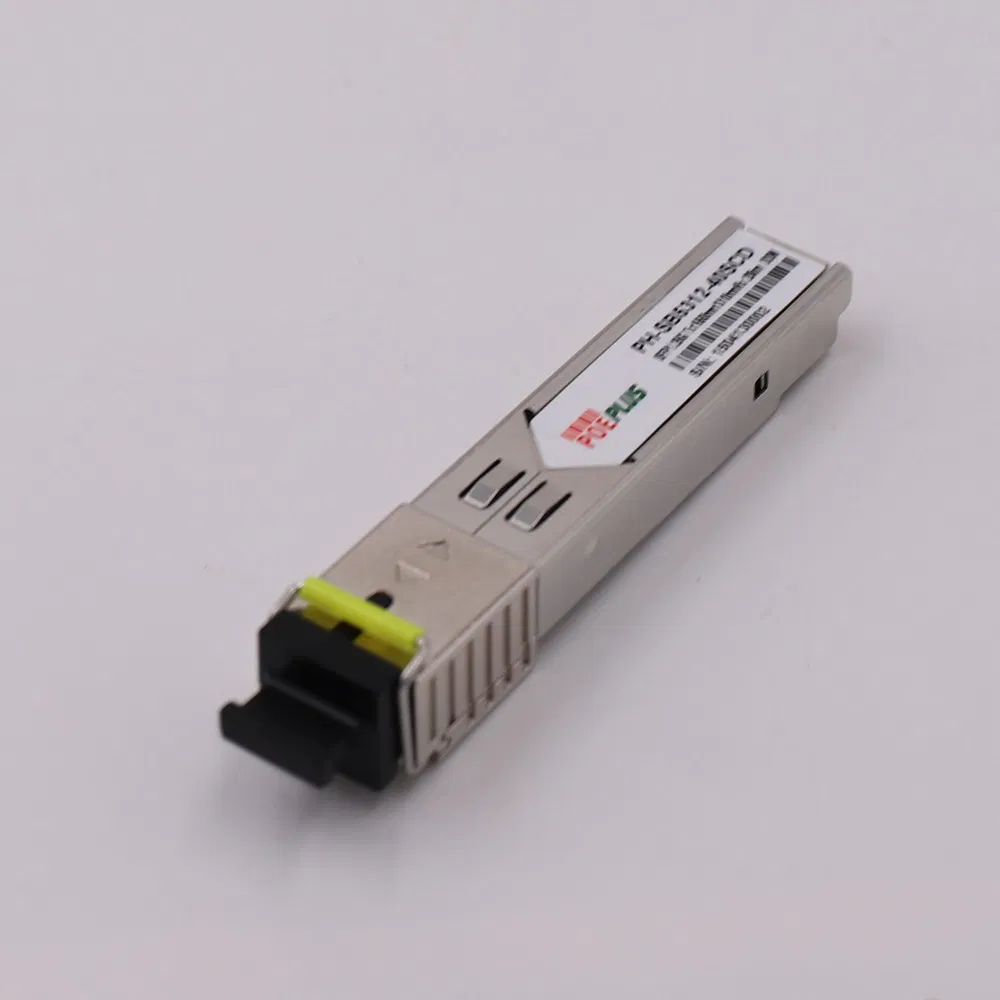

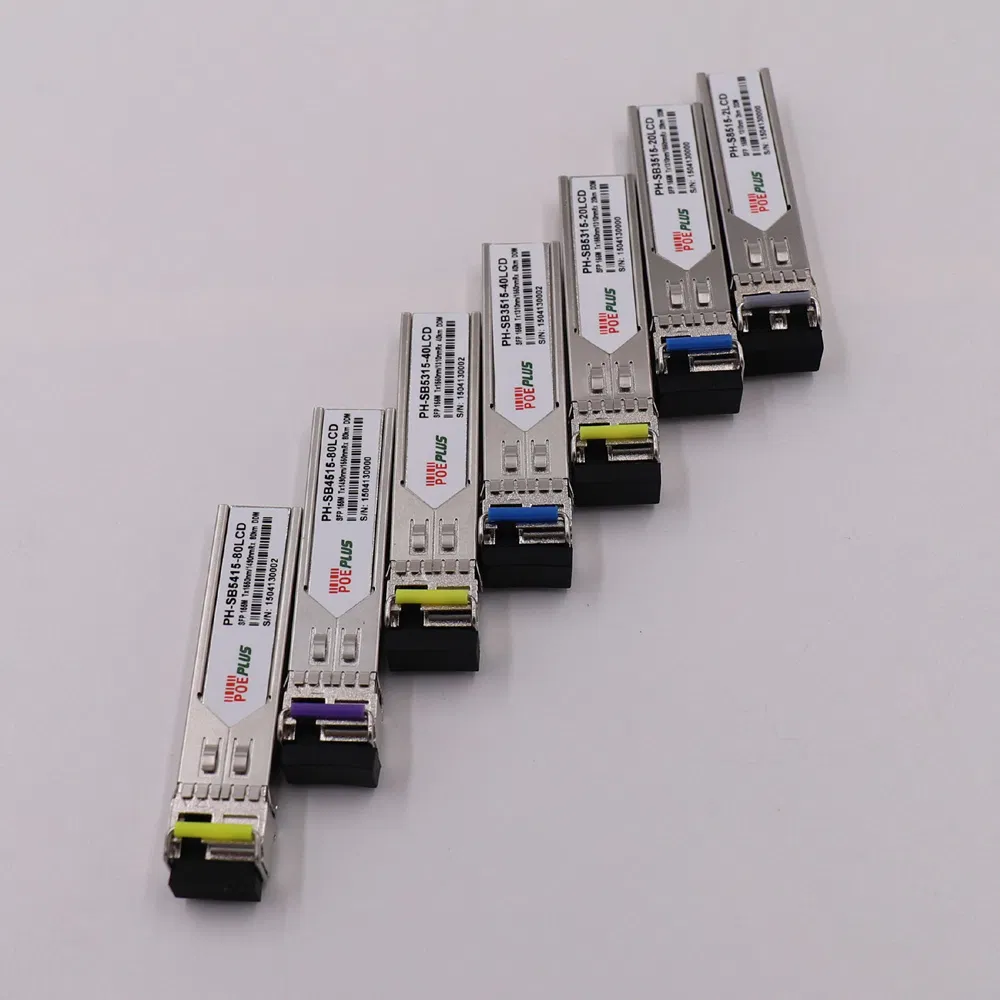

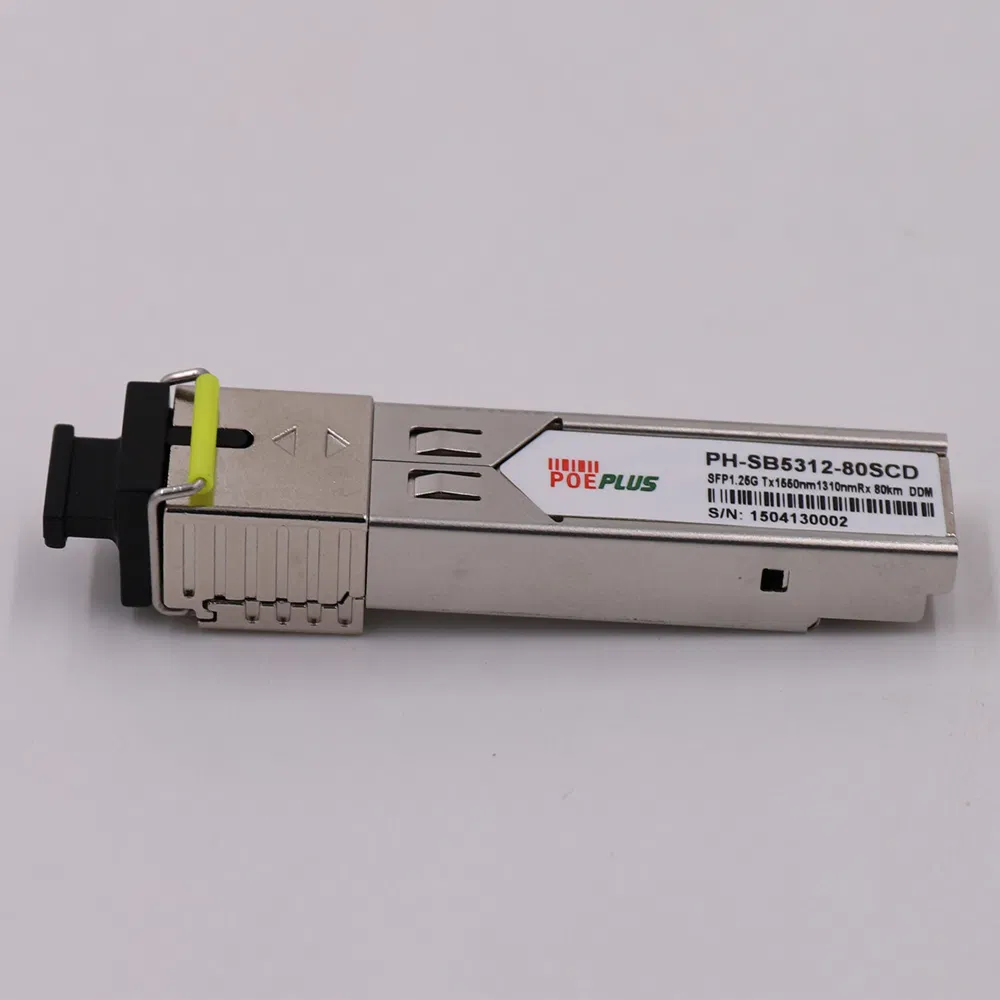

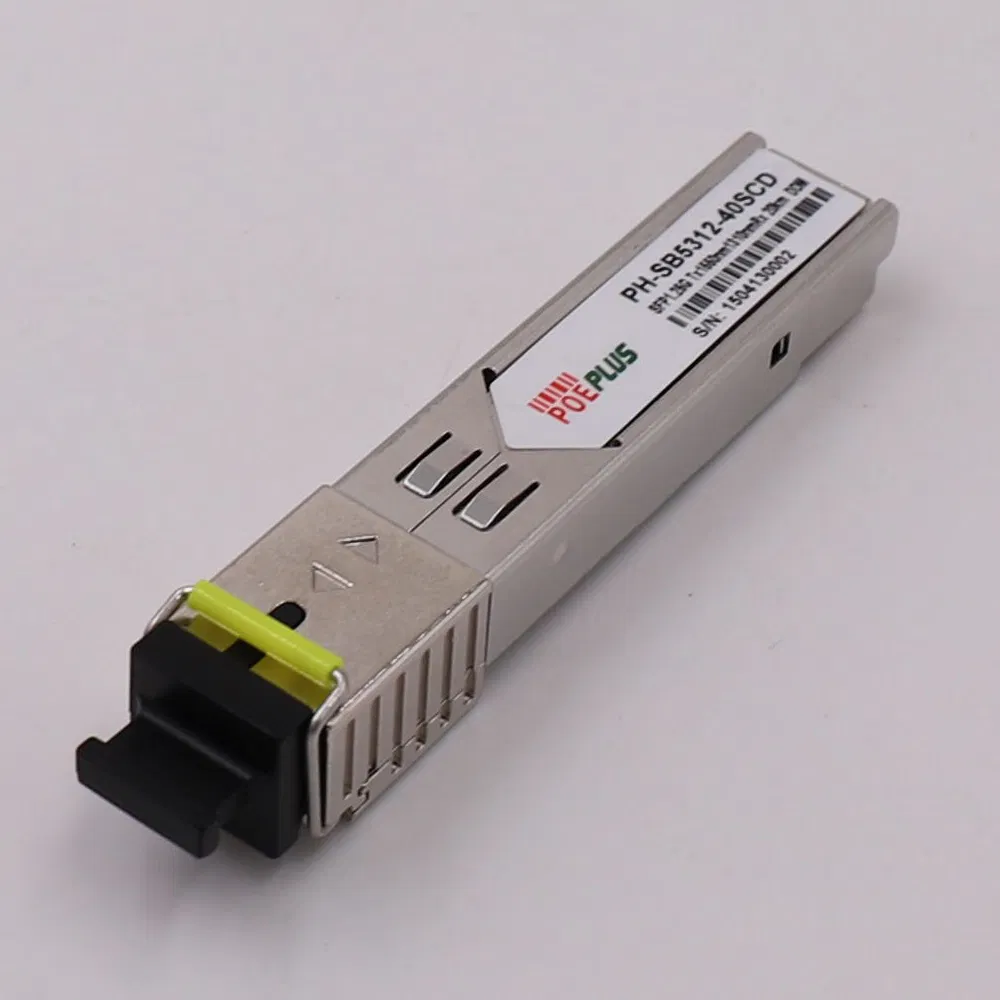

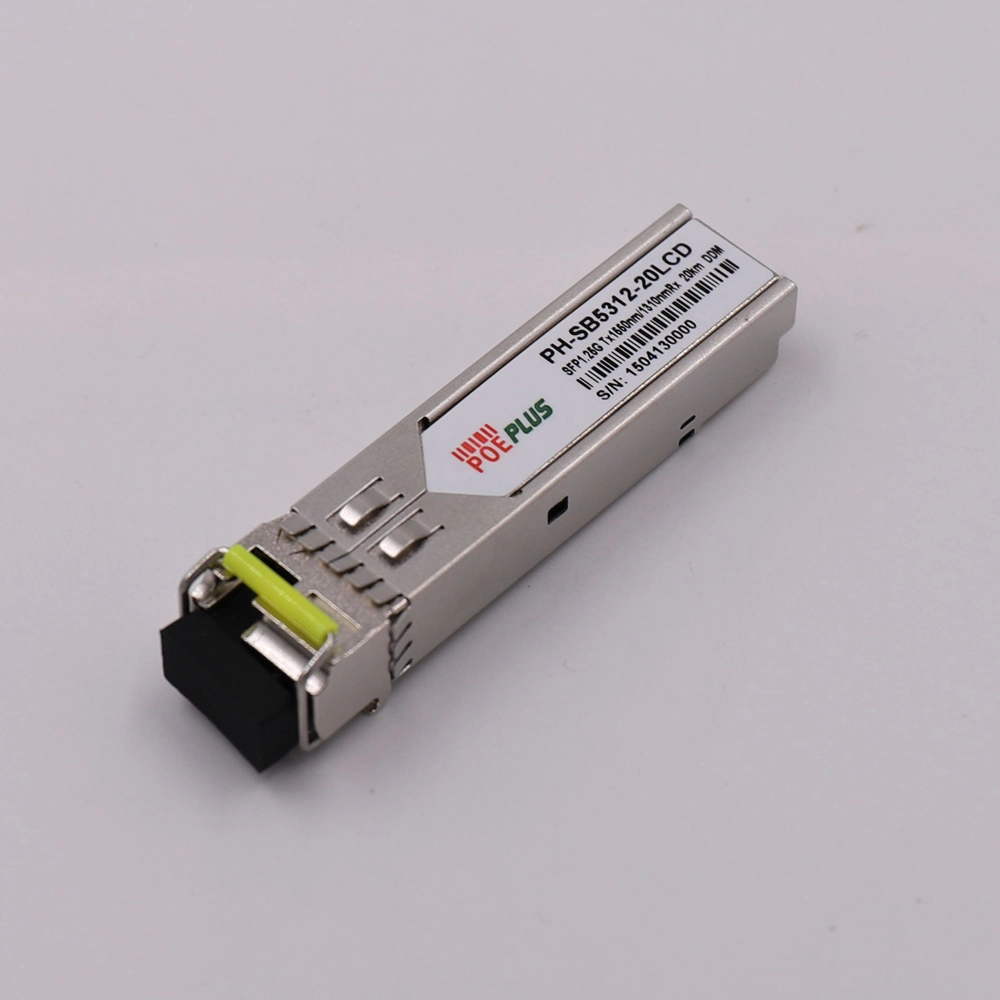

China 1.25g Wdm SFP Transceiver Cisco and Huawei Compatible (PHY-3524-1Sx)

Product Description

Industrial Grade 1.25Gbps Bi-directional SFP Transceiver

Feature

Compliant with IEEE802.3z Gigabit Ethernet Standard
Compliant with Fiber Channel 100-SM-LC-L standard
Industry standard small form pluggable (SFP) package
Simplex SC connector
Differential LVPECL inputs and outputs
Single power supply 3.3V
TTL signal detect indicator
Hot Pluggable
Class 1 laser product complies with EN 60825-1
RoHS Compliant
CPRI ready
Transmission distance up to 20km by single fiber
Compliant with cisco/HP/Huawei etc brand switch or router

Work temperature -40-+85ºC

Applications
Gigabit Ethernet Application
Point-to-Point FTTX Application

The PHY-3524-1LX Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA)1. They are simultaneously compatible with Gigabit Ethernet as specified in IEEE Std 802.32 and
Fibre Channel FC- PI-2 Rev. 7.03. They are RoHS compliant and lead-free per Directive
2002/95/EC4

. Pin Descriptions

Pin	Symbol	Name/Description	Ref.
1	VEET	Transmitter Ground (Common with Receiver Ground)	1
2	TFAULT	Transmitter Fault. Not supported.
3	TDIS	Transmitter Disable. Laser output disabled on high or open.	2
4	MOD_DEF(2)	Module Definition 2. Data line for Serial ID.	3
5	MOD_DEF(1)	Module Definition 1. Clock line for Serial ID.	3
6	MOD_DEF(0)	Module Definition 0. Grounded within the module.	3
7	Rate Select	No connection required
8	LOS	Loss of Signal indication. Logic 0 indicates normal operation.	4
9	VEER	Receiver Ground (Common with Transmitter Ground)	1
10	VEER	Receiver Ground (Common with Transmitter Ground)	1
11	VEER	Receiver Ground (Common with Transmitter Ground)	1
12	RD-	Receiver Inverted DATA out. AC Coupled
13	RD+	Receiver Non-inverted DATA out. AC Coupled
14	VEER	Receiver Ground (Common with Transmitter Ground)	1
15	VCCR	Receiver Power Supply
16	VCCT	Transmitter Power Supply
17	VEET	Transmitter Ground (Common with Receiver Ground)	1
18	TD+	Transmitter Non-Inverted DATA in. AC Coupled.
19	TD-	Transmitter Inverted DATA in. AC Coupled.
20	VEET	Transmitter Ground (Common with Receiver Ground)	1

Notes:
1. Circuit ground is internally isolated from chassis ground.
2. Laser output disabled on TDIS >2.0V or open, enabled on TDIS <0.8V.
3. Should be pulled up with 4.7k - 10kohms on host board to a voltage between 2.0V and
3.6V.MOD_DEF(0) pulls line low to indicate module is plugged in.
4. LOS is open collector output. Should be pulled up with 4.7k - 10kohms on host board to a voltage between 2.0V and 3.6V. Logic 0 indicates normal operation; logic 1 indicates loss of signal.

.Absolute Maximum Ratings

Parameter	*Symbol*	Min.	Max.	Units
Storage Temperature	TS	-45	+100	ºC
Supply Voltage	*Vcc*	-0.5	6.0	V
Input Voltage	*VIN*	-0.5	Vcc	V
Output Current	Io		50	mA
Operating Current	*IOP*		400	mA
Case Operating Temperature	TC	-40	+85	ºC
Supply Current	*ITX + IRX*		250	mA

.Transmitter Electro-optical Characteristics
Vcc = 3.1 V to 3.5 V, TC =-40ºC to +85 ºC

Parameter	*Symbol*	Min.	Typ.	Max	Units	Note
Output Optical Power 9/125 μm fiber	*Pout*	-9	---	-3	dBm	1
		-4	---	+3	dBm	2
		-3	---	+3	dBm	3
Extinction Ratio	ER	9	---	---	dB
Center Wavelength	λC	1260	1310	1360	nm
Spectral Width (RMS)	Δλ	---	---	2.5	nm	1
Spectral Width (RMS)	Δλ	---	---	1	nm	2,3
Rise/Fall Time, (20−80%)	*Tr/f*	---	---	260	ps
Relative Intensity Noise	*RIN*	---	---	-120	dB/Hz
Total Jitter	TJ	---	---	227	ps
Output Eye	*Compliant with IEEE802.3z*
*Max. Pout* TX-DISABLE Asserted**	*POFF*	---	---	-45	dBm
Differential Input Voltage	*VDIFF*	0.4	---	2.0	V

Note
1.PHY-3524-1L2 2.PHY-3524-1L4 3.PHY-3524-1L6

.Receiver Electro-optical Characteristics
Vcc = 3.1 V to 3.5 V, TC =-40ºC to +85 ºC

Parameter	*Symbol*	Min.	Typ.	Max.	Units	Note
Optical Input Power-maximum	*PIN*	0	---	---	dBm	BER < 10-12
Optical Input Power-minimum (Sensitivity)	*PIN*	---	---	-24	dBm	BER < 10-12
Operating Center Wavelength	λC	1480	1550	1580	nm
Optical Return Loss	*ORL*	14	---	---	dB	1480~1580nm
Optical isolation	*ISO*	---	---	-40	dB	1480~1580nm
Signal Detect-Asserted	PA	---	---	-24	dBm
Signal Detect-Deasserted	PD	-35	---		dBm
Differential Output Voltage	*VDIFF*	0.5	---	1.2	V
Data Output Rise, Fall Time (20−80%)	*T r/f*	---	---	0.35	ns
Receiver Loss of Signal Output Voltage-Low	*RX_LOSL*	0	---	0.5	V
Receiver Loss of Signal Output Voltage-High	*RX_LOSH*	2.4	---	Vcc	V

.Block Diagram of Transceiver

Note
Transmitter and Receiver Optical Sub-assembly Section
A 1310 nm InGaAsP laser and an InGaAs PIN photodiode integrate with an WDM filter to form a bi-directional single fiber optical subassembly (OSA). The laser of OSA is driven by a LD driver IC which converts differential input LVPECL logic signals into an analog laser driving current. And, The photodiode of OSA is connected to a circuit providing post-amplification quantization, and optical signal detection.
TX_DISABLE
The TX_DISABLE signal is high (TTL logic "1") to turn off the laser output.
Receive Loss (RX_LOS)
The RX_LOS is high (logic "1") when there is no incoming light from the companion transceiver. This signal is normally used by the system for the diagnostic purpose. The signal is operated in TTL level.

.Dimensions

. PCB Layout and Bezel Recommendations

.Recommended Interface Circuit

.Ordering Information

Part Number	Tx/Rx	Input/Output	Signal Detect	Temperature	LD Type	Distance
PHY-3524-1L2	1310/1550	AC/AC	TTL	-40ºC~+85ºC	1310FP	20km
PHY-3524-1L4	1310/1550	AC/AC	TTL	-40ºC~+85ºC	1310DFB	40km
PHY-3524-1L6	1310/1550	AC/AC	TTL	-40ºC~+85ºC	1310DFB	60km

. References
1. Small Form Factor Pluggable (SFP) Transceiver Multi-source Agreement (MSA).
September 14, 2000.
2. IEEE Std 802.3, 2002 Edition, Clause 38, PMD Type 1000BASE-SX. IEEE Standards
Department 2002.
3. "Fibre Channel Draft Physical Interface Specification (FC-PI-2 Rev. 7.0)". American
National Standard For Information Systems.
4. Directive 2002/95/EC of the European Council Parliament and of the Council, "on the restriction of the use of certain hazardous substances in electrical and electronic equipment." January 27, 2003.
Warnings:
Handling Precautions: This device is susceptible to damage as a result of electrostatic discharge (ESD). A static free environment is highly recommended. Follow guidelines according to proper ESD procedures.
Laser Safety: Radiation emitted by laser devices can be dangerous to human eyes. Avoid eye exposure to direct or indirect radiation.
