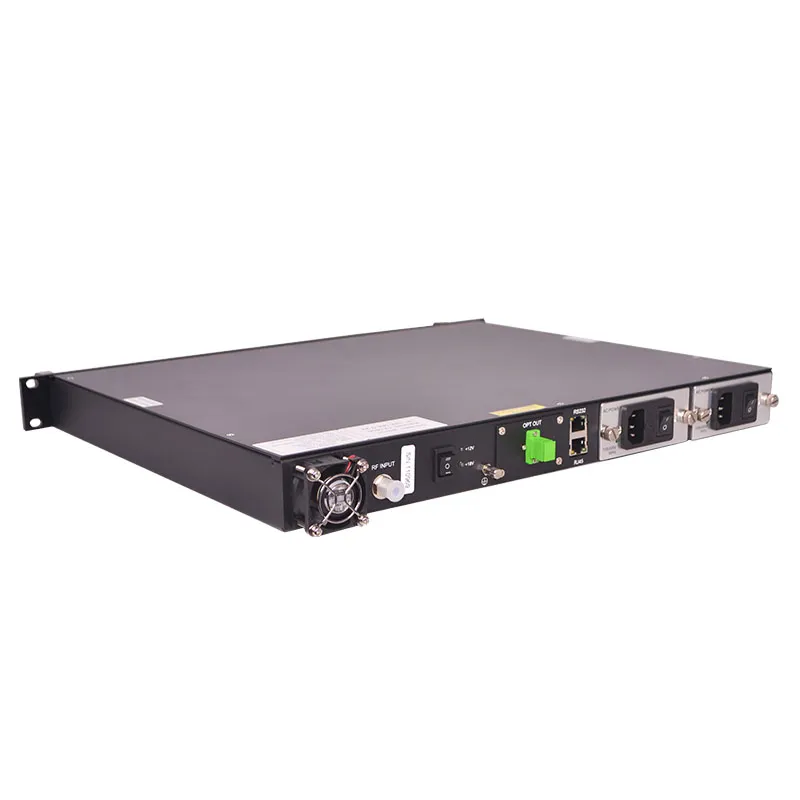

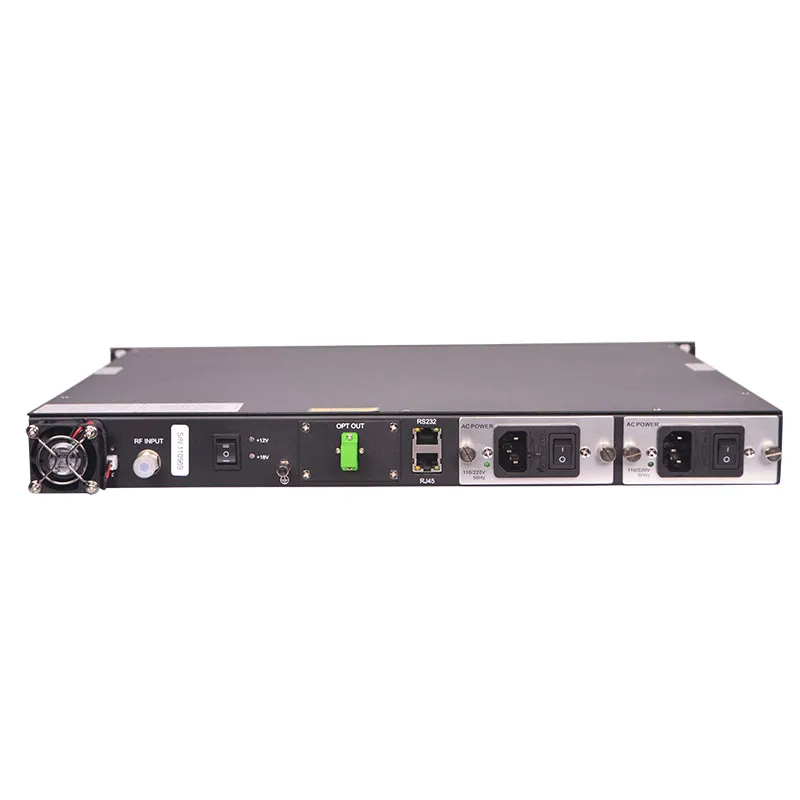

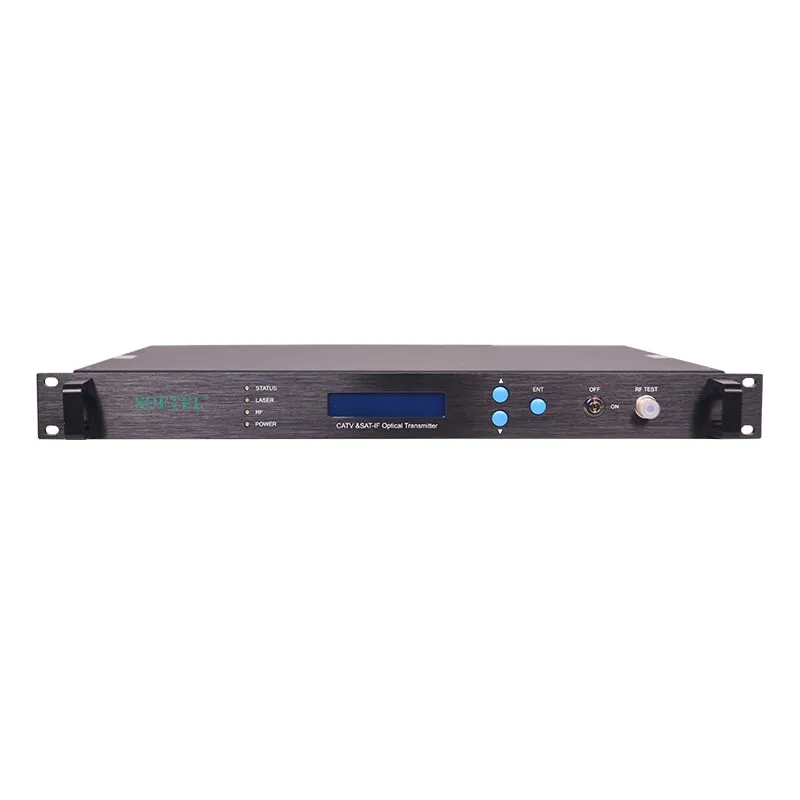

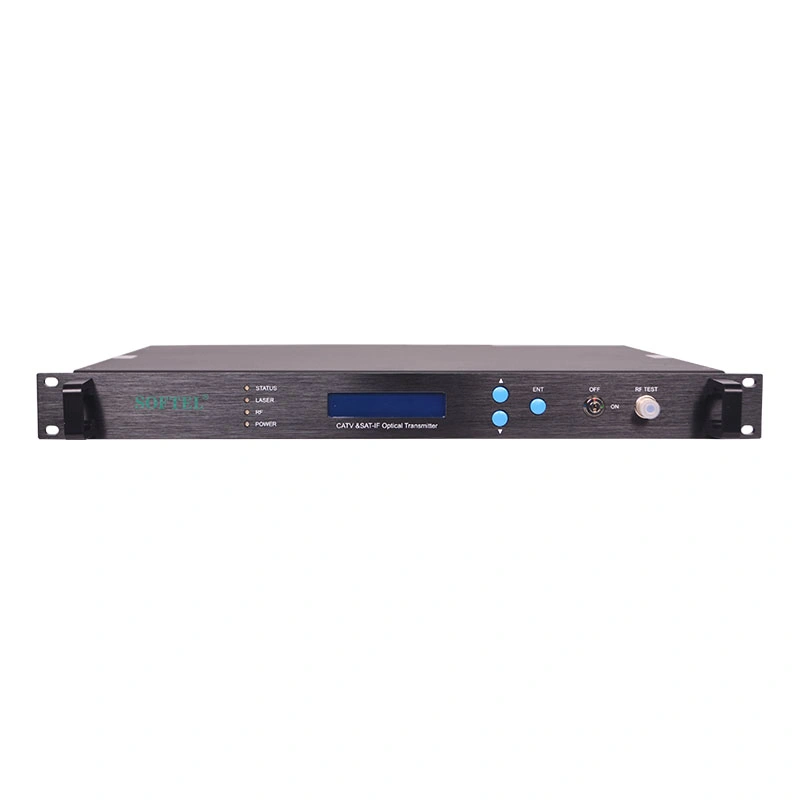

[Softel] 1550 Internal Modulation Optical Transmitter

Product Description

[SOFTEL] 1550 internal modulation optical transmitter

Summary

1550nm Internal Modulation Optical Transmitter has been widely used in the applications of the
multi- channel transmission. When the laser's chirp effect is reacting to the link dispersion of the
fiber, there will be distortion on the receivers. While working with the EDFA, there will be serious
CSO deterioration. The distortion and deterioration will increase with the distance getting longer
and channels getting more. This series of 1550nm internal modulation CATV optical transmitter has
chirp and dispersion compensation inside, which makes the system index perform excellently. It
can be used as a transition solution, such as a town where the fund is in shortage and the area
coverage is less than 10Km.

Characteristic

Laser OMI AGC/MGC
Dual power supply inside backup.
Low chirp effect, high linearity DFB laser
Intuitional modulation status display
Dual Module therefore drive, chirp compensation
Full-automatically swicth
Full-automatically control of casing temperature

Parameters

Performance			Index	Supplement
Optic feature	Laser wavelength	nm	1550±10
	Linearity width	MHz	≤1	λ
	Equivalent noise intensity	dB/Hz	≤-160	RIN 20~1000MHz
	Side mode suppression ratio	dB	≥35	SMSR
	Extinction ratio	dB	≥20	Xp
	Output power	dBm	2×7	1×7,1×10,2×6,2×7
	SBS restrain	dBm	≥17
	Return loss	dB	≥60
	Optic fiber connector		FC/APC	SC/APC or E-2000
RF feature	Work bandwidth	MHz	45-862
	Input level	dBmV	18~28	AGC
	Flatness	dB	≤±0.75	45~862MHz
	Return loss	dB	>16	45~750MHz
	Input impedance	Ω	75
Link feature	Transmit channel		PAL-D/60ch
	CNR	dB	≥51	10Km optic fiber,0dBm receive
	CTB	dB	≤-65
	CSO	dB	≤-60
	CSO	dB	≤-60
General feature	Network interface port		RJ45,R232	Support I.E. & SNMP
	Power supply	V	90~265 city power	-48VDC optional
	Power Consume	W	≤50	Single power works
	Work temp.	°C	-5~65	Machine temp controlled automatically
	Storage temp.	°C	-40~85
	Work relative temp.	%	5~95
	Size	"	19×10×1.75	WxDxH

Company information

[Softel] 1550 Internal Modulation Optical Transmitter

Shipping & Package

[Softel] 1550 Internal Modulation Optical Transmitter

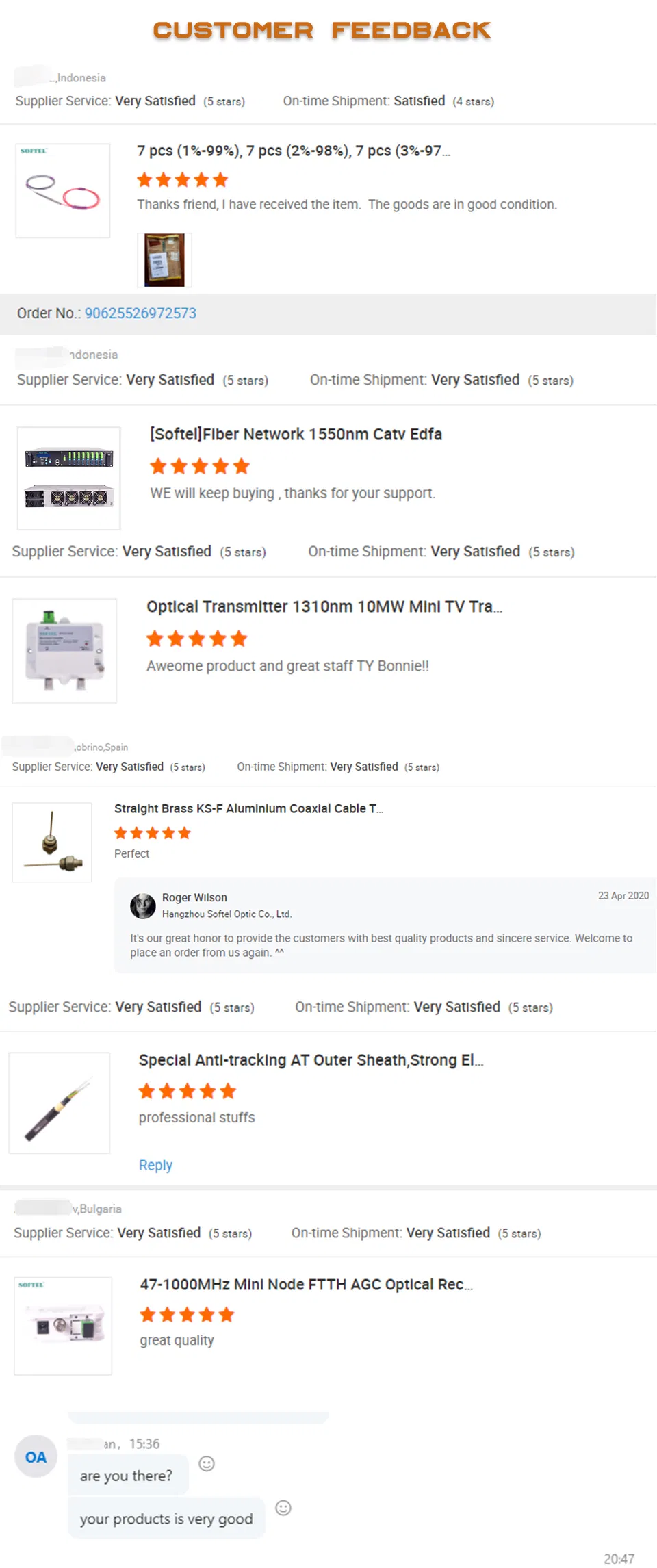

Customer feedback

[Softel] 1550 Internal Modulation Optical Transmitter

FAQ

1. What are the payment terms that you support?
Usually, we accept T/T, PayPal, Western Union, and Alibaba Trade Assurance. You can select the terms of payment which is more convenient for you.

2. What about the lead time?
Usually, if there's stock, we ship the goods within 3~5 working days after the deposit is confirmed. If it is out of stock, the lead time depends.

3. How about the shipping?
When the package is small, we normally choose FedEx, DHL, TNT, and UPS and so on, while the goods have high weight and volume, we suggest using air or sea shipment.

4. How can I place an order?
(1) Negotiation is agreed upon for the product price and specifications.
(2) The Proforma invoice will be sent for confirmation.
(3) After the agreement on the proforma invoice, the customer makes the deposit.
(4) Manufacturing will be started as soon as the payment is confirmed by our bank.
(5) Ship out the goods within the agreed delivery deadline.

5. Can you do OEM for us?
Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.

6. How about the Warranty?
There are 12 months for the warranty.
While the warranty is not responsible for those broken by violence or updated with other brands.
